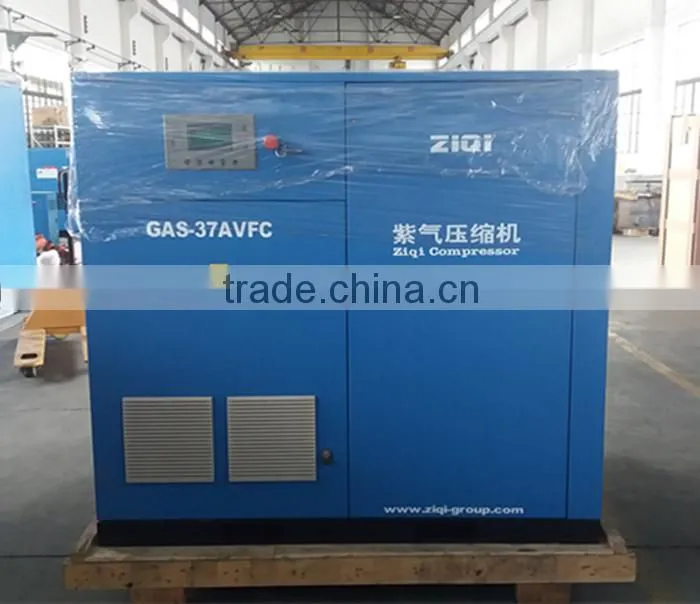

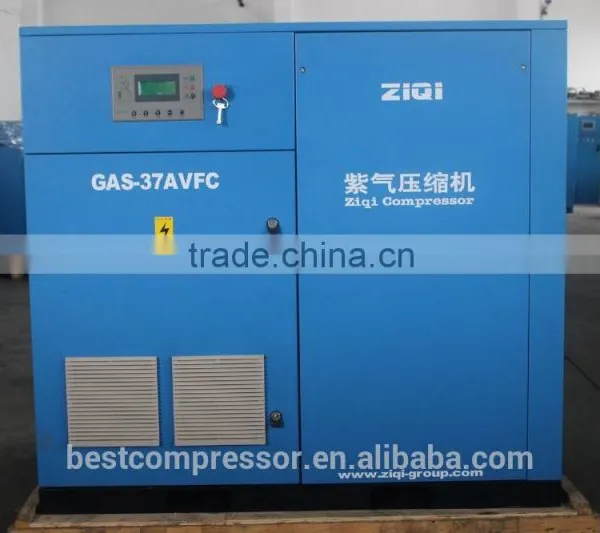

Variable speed 37kw used screw compressor
Screw air compressor, the technology from Germany and the main configures are imported from Germany to make sure the high performance and working smoothly.
Especially the air end using Germany GHH
Model |
GA-37AVFC |
GA-45A |
GA-55A/W |
GA-75 A/W |
GA-90 A/W |
GA-110 A/W |
GA-132 A/W |
|||
|
Air discharge/ Pressure discharge
|
m³/min/Mpa
|
0.682~6.82/0.7 |
7.42/0.7 |
10.83/0.7 |
14.11/0.7 |
16.1/0.7 |
21.0/0.7 |
25.2/0.7 |
||
0.642~6.24/0.8 |
7.11/0.8 |
9.20/0.8 |
13.02/0.8 |
15.0/0.8 |
19.8/0.8 |
24.0/0.8 |
||||
0.574~5.74/1.0 |
6.22/1.0 |
8.61/1.0 |
12.04/1.0 |
13.8/1.0 |
17.9/1.0 |
21.0/1.0 |
||||
0.493~4.93/1.2 |
5.65/1.2 |
7.71/1.2 |
10.06/1.2 |
12.3/1.2 |
15.3/1.2 |
18.3/1.2 |
||||
No of compression stage |
|
Single stage compression |
||||||||
Cooling model |
|
A-Air cooling W-Water cooling |
||||||||
Discharge temperature |
ºC |
≤The environment temperature +15ºC (Air cooling) ≤40ºC (Water cooling) |
||||||||
Noises Level |
dB(A) |
65±2 |
68±2 |
68±2 |
72±2 |
72±2 |
72±2 |
76±2 |
||
Transmission mode |
|
Belt Drive or Direct Drive (Optional) |
||||||||
Power supply |
V/Ph/Hz |
380/3/50 ,custom design is suitable |
||||||||
Motor power |
kw |
37 |
45 |
55 |
75 |
90 |
110 |
132 |
||
Starting model |
|
Y-Δ Start |
||||||||
External dimensions |
L |
mm |
1500 |
1715 |
2045 |
2045 |
2650 |
2650 |
2400 |
|
W |
mm |
1220 |
1090 |
1230 |
1230 |
1640 |
1750 |
1450 |
||
H |
mm |
1375 |
1635 |
1820 |
1820 |
1850 |
1850 |
1800 |
||
Net Weight |
Kg |
880 |
1200 |
1750 |
1820 |
2200 |
3000 |
3550 |
||
Air out pipe diameter |
Inch |
G1 1/2” |
G1 1/2” |
G2” |
G2” |
DN65 |
DN65 |
DN65 |
||
Volume Lubricant oil |
L |
18 |
22 |
50 |
50 |
50 |
75 |
75 |
||
1. Host body ( air end )
2. Air end discharge terminal adopts SKF company TRB (tapered roller bearing)
3.The motor is Brazilian WEG brand
4.Brazil WEG Inverter
