Highway P16 Module for LED VMS Variable Message Signs/signage

Highway P16 Module for LED VMS Variable Message Signs/signage thumbnail-3

Highway P16 Module for LED VMS Variable Message Signs/signage thumbnail-4

Highway P16 Module for LED VMS Variable Message Signs/signage thumbnail-5

Highway P16 Module for LED VMS Variable Message Signs/signage photo-1

Highway P16 Module for LED VMS Variable Message Signs/signage photo-2

Highway P16 Module for LED VMS Variable Message Signs/signage photo-3

Highway P16 Module for LED VMS Variable Message Signs/signage photo-4

Highway P16 Module for LED VMS Variable Message Signs/signage photo-5

US$ 100 - 200 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

OEM

Model Number:

P16

Contact Supplier Request Quote Chat Now

Shenzhen Glare-LED Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name OEM

Model Number P16

highway P16 LED VMS variable message signs/signage

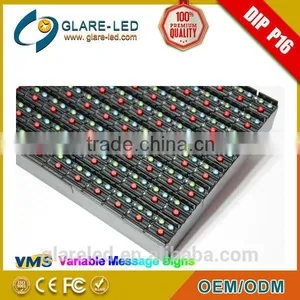

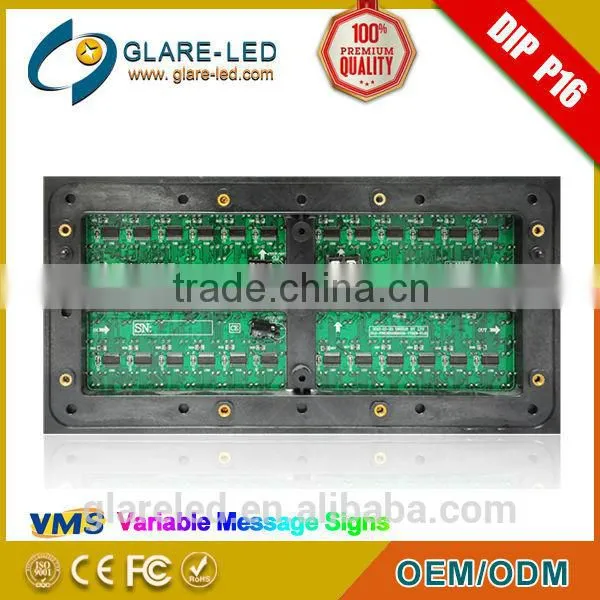

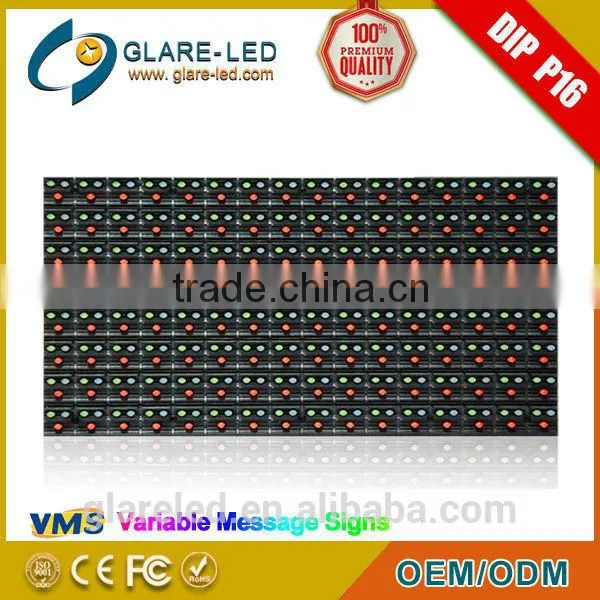

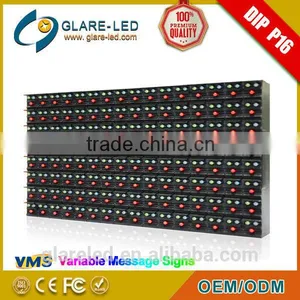

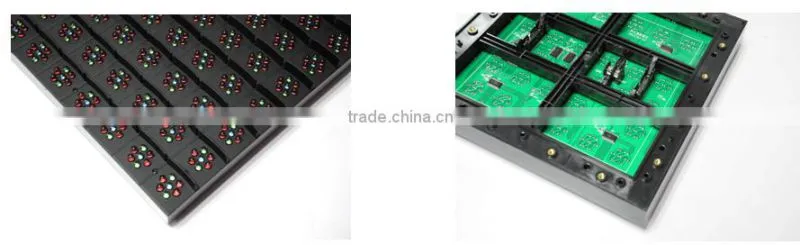

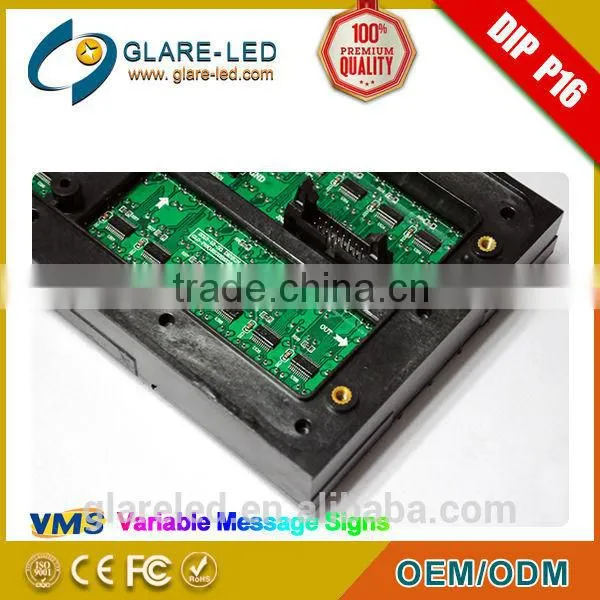

Product Picture:

Product list

Product Type	Pixel Pitch	Pixel Composition	Resolution	Encapsulation mode	Consumption W/m²	View Angle	Brightness	Module Size(mm)
Amber Single color	P16	2A	*816**	DIP346	350	100°	3000cd/m²	*128256**
Dual Color	P16	2R1G	*816**	DIP346	1000	100°	7000cd/m²	*128256**
Full color	P16	1R1G1B	*816**	DIP346	1000	100°	9000cd/m²	*128256**

Technical parameters

Item	Parameter
LEDs	LED for Traffic Usage
Pixel	P16
Dimension	Customized
Cabinet Material	Aluminum or Iron
Color	Mono color,Double color,Full color available
Density	3906 dot/m²
Brightness	Manual operation or Automatic different level adjustion
Watching Distance	Static 300M, Dynamic250M
Control Way	Asynchronous
Communication Interface	RS232/RS485/RJ45/GPRS/3G
Rate of scan	>120hz
Lifespan	100,000 hours
Malfunction dot rate	<1/10000
insulation resistance	>100MΩ
Hi-pot test	1500V/50Hz for 1 minute,No break,Pass
Crash test	Pass
Vibration Test	Pass
Driving Mode	Static constant current
IP Rank	IP65
Working Humidity	5%-95%
Working Temperature	-40℃~+75℃
Power supply	AC220V±18% / 50Hz±10% AC380V±18% / 50Hz±10%
Certification	CE/FCC/ROHS…

Project Cases

Application:

Widely used in highway, tunnels, urban road, highway main trunk road network density areas, streets, airports,

docks, stations, traffic guidance and related applications.

Product Features:

1,LED module is universality and interchangeable, it can be different colors in different sizes customized

2,Double-layer structure, it forms internal natural convection mode, to balance the space within the enclosure temperature

3,The junction between LED modules and cabinet use "o"-seal ring with good moisture seepage properties

4,Module package use advanced soft silicone, with good elasticity and strong resistance ageing ability

5,Power and major IC components make heat dispersing through the heat sink , which solved the heat, but also ensure the fan cooling the mechanical failure that may result in inconsistent performance

6,Choose special devices with wide temperature range, ensure display can work normally under high temperature or low temperature

7,Mature large scale integration of high-speed serial transmission chip separation of alternative parallel transport chip,it reduces the complexity of display transmission, reducing the complexity of the control system, improved the stability of product

8,Network cable transmit data, it reduces the transmission cables inside the screen, greatly improve the stability of the display

9,General network data transmission technology,it improves grayscale information of variable message signs, information board has a better performance effect

10,General network data transmission technology, to facilitate product compatibility and upgrading. It improves the response speed of variable message sign system

Specification:

Item

Parameters

LED lamp

Special design traffic LEDs

Pixel pitch

P16,P20,P25,P31.25,P33.33

Display size

Customized

Cabinet caterial

Aluminum or Cold rolled steel

Display color

Single color/Tri-color/Fullcolor(Optional)

Dimming

Manual or automatic multistage brightness control

Viewing distance

over 300M

Control mode

Asynchronous

Communication interface

RS232/RS485/RJ45/GPRS/3G,,,

Scan frequency

>120hz

LED screen lifespan

100,000 hours

Out-of control pixel

<1/10000

Insulation resistance

>100MΩ

High temperature resistance test

AC 1500V/50Hz voltage resistance in one minute ,no breakdown,pass

Impact resistance test

pass

Vibration Resistance Test

pass

Scanning mode

Static constant

Waterproof level

IP65

Working humidity

5%-95%

Working temperature

-40℃~+75℃

Input voltage

AC220V±18% / 50Hz±10%

AC380V±18% / 50Hz±10%

Certification

CE/FCC/ROHS

Maintenance instructions:

1. Before maintenance, please be sure to switch off the electricity.

2. Keep stable power supply, and make good grounding protection to avoid lightning strike.

3. Regular checking the situation of hang area, if there are any loose phenomenon, timely adjustment, to reinforce or update a string.

4. According to the the environment of display screen and control part,to avoid insect bites, should place rat poison when necessary.

5. Correct wiping: can use alcohol to wipe the surface of LED screen, or use the dust brush, vacuum cleaners to dedust, don't directly use wet cloth to wipe.

6. Regular cleaning maintenance: Full color LED screen Long exposure to the outdoor environment, something like dust, easy to stick on LED screen; After a long time, LED Screen will full of dust, So need to regular and timely clean, in case of dust overlay LED screen, affect the watch effect.

7. Regular checking: Need to regular checking whether the LED screen normal work, the wiring whether damaged, if wiring damaged, need to replace or repair in time; LED screen internal wiring, Non-professional person should be banned to touch, in case of electric shock, or cause wiring damaged, if have problem, pls ask professionals to maintenance.

Warranty and After-sale service:

1. Warranty period: 1 year (Different price can have different warranty period)

2. Quality assurance is based on the customers' correct storage, installation, use and maintenance.

3. The artificial damage or problem caused by wrong operation is not in the scope of warranty.

4. In the warranty period, our company will choose to return factory for free repair or provide free new material for customer to replace.

5. If products beyond warranty period, our company will charge for material cost and artificial cost.
