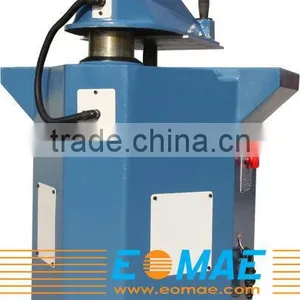

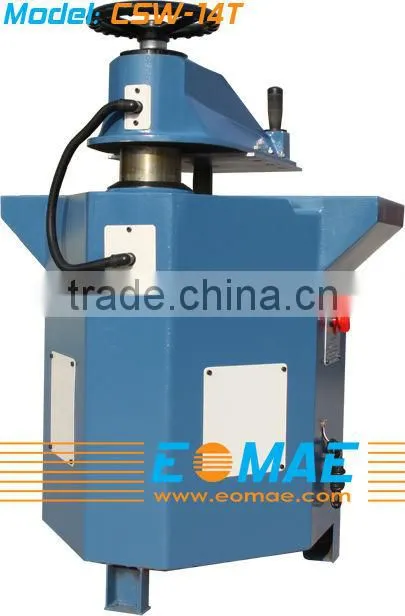

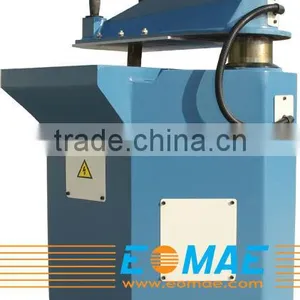

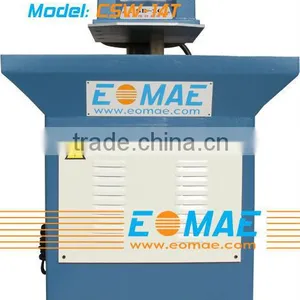

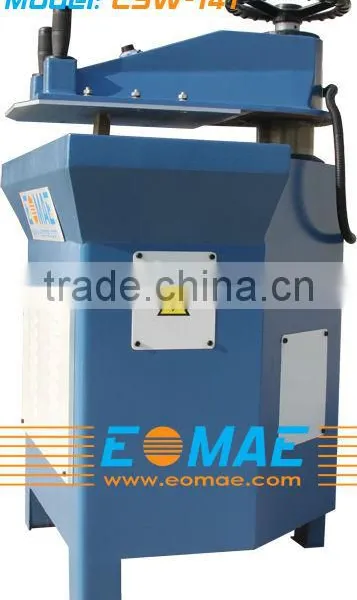

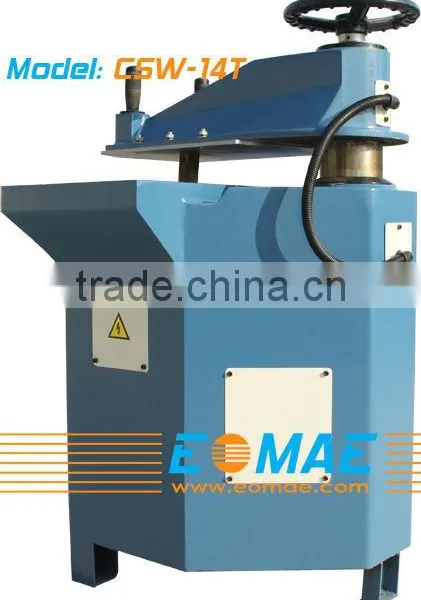

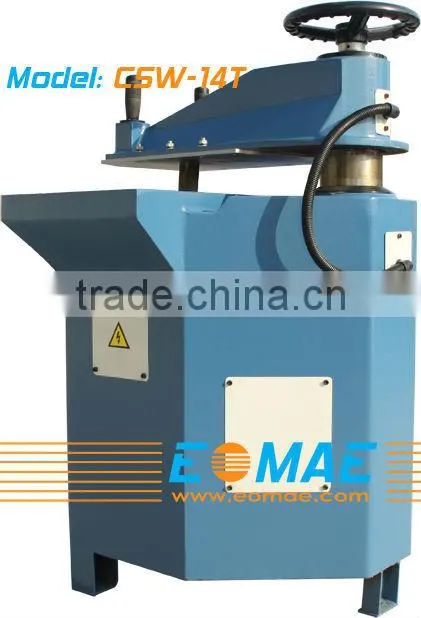

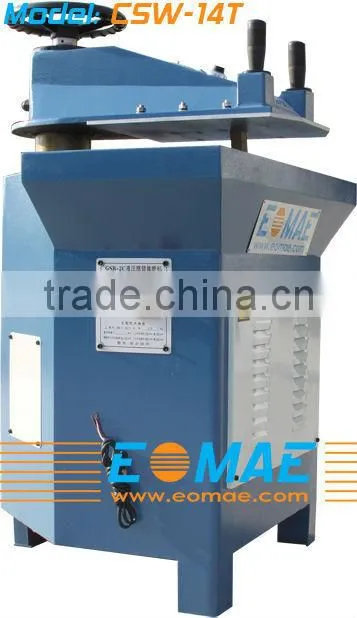

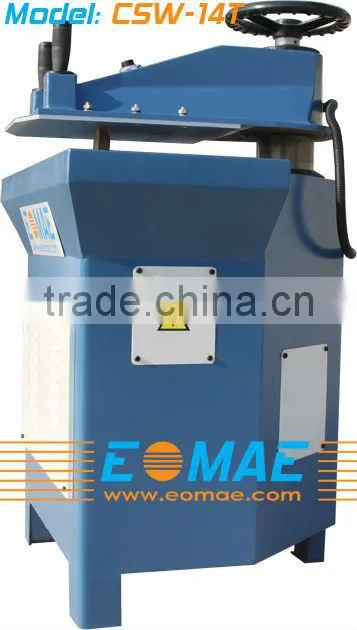

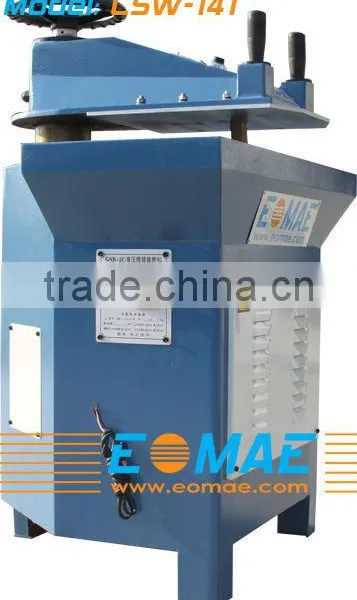

Swing Arm Bag Cutting Machine CSW-14T

Name: Swing Arm Bag Cutting Machine CSW-14T
Brand: EOMAE
SKU: 131674327

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Machine Type:

Cutting Machine

Bag Type:

Shopping Bag

Yancheng Xinzhan Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Port China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Machine Type Cutting Machine

Bag Type Shopping Bag

Material Plastic

Computerized No

Place of Origin Jiangsu, China

Brand Name EOMAE

Model Number CSW-14T

Voltage Customizable

Power(W) 0.75 KW

Dimension(L*W*H) 700 x 600 x 900 mm

Weight 600 KGS

Certification CE

Warranty 18 Months

After-sales Service Provided Engineers available to service machinery overseas

Specifications

* Bag Cutting Machine
* Small size, Easy to operate
* Convenient, reliable, Safe
* Reasonable price
* Long service life

CSW-14T Swing Arm Bag Cutting Machine

Application

Applicable for small die cutter/knife mold;
Suitable for cutting, punching nonmetallic materials, widely used in cutting Bags, Shoe sole, Mobile phone sets, Small toys, Decorative pieces, Clip components, Handbag attachments ...

Key Features

Steel welded structure, high reliability;
Hydraulic drive mode, all hydraulic system components are of superb quality;
Machine's beam can be rotated flexibly and freely, easy to operate;
Low maintenance;
Low noise;
Two-handed operation design and emergency stop device can ensure safe operation;
Compact body design helps to reduce waste and save energy;
Cutting head height is controlled by the handwheel, cutting stroke is adjusted by the timer, so it's very easy to achieve optimal cutting position;
Setting is convenient and accurate;
The inertia of the handwheel is stored to save energy;
Qualified parts and superb workmanship ensure the working stability and service life.

Options

Main Technical Data

Model:	CSW-14T
Cutting Force:	14 Ton
Platen Size:	280 x 350 mm
Bed Size:	400 x 800 mm
Cutting Stroke:	0-50 mm
Distance between Platen to Bed:	60-140 mm
Motor Power:	0.75 KW
Hydraulic Oil:	40 Liter of 46 anti-wear hydraulic oil
Net Weight:	600 KGS
Dimension:	700 x 600 x 900 mm
