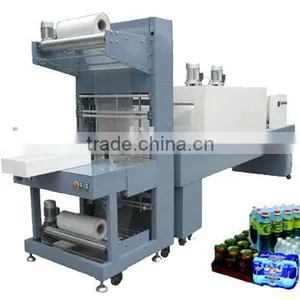

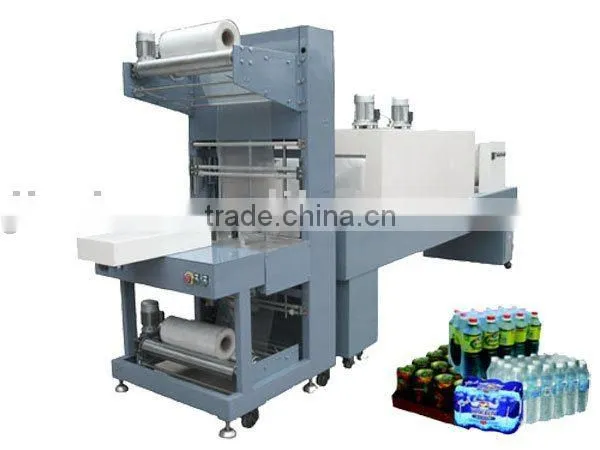

Help CenterJR-250A Thermal Contraction Packaging Machine
Related Products
-
PE FILM SHRINK PACKING MACHINENegotiableMOQ: 1 Set -
JR-LA400 Automatic Wrapping and Shrinking MachineNegotiableMOQ: 1 Set
-
Full-automatic Thermal Contraction Packaging MachineNegotiableMOQ: 1 Set
-
Shrink Packing and Wrapping MachineNegotiableMOQ: 1 Set
-
JR-SA400 Shrinking and Packing MachineNegotiableMOQ: 1 Set
Specifications
1.unique stability and economical efficiency.2.high quality with pretty competitive price
3.quality warranty
Features:
The machine adopts transducer speed adjusting and two-stage bottle conveying device. The bottle unscrambling and heat sealing adopt pneumatic mechanism. The induction switch controls film length. The double blowing wind recycling machinery ensures the balanced temperature in shrinking furnace. The cooling system with ultra blowing wind ensures rapid shape fixation. The main parts of this production line are all imported and joint-stock famous brands. The PE film is of slice shape; the upper and lower slices form a tube through the sealing of the machine, achieving packaging through thermal contraction.
Packaging Type:
(1) (1)350/500/550/600ML large package: 4*6, 4*5 small package, 3*4, 3*5 four package types.
(2)1L/1.5L/2L/2.5L large package: 3*3, 3*4 small package, 2*2, 2*3 four package types. For the zip-top can package, it is suggested to adopt base package with better stability. Packaging speed: 5-8 bottles/min.
Main Technical Parameters
External Dimensions of Machine |
L5,050*W920*H2,200 |
External Packaging Dimensions of Machine |
L1,180*W1,080*H2,370 |
L3,890*W1,050*H2,040 | |
Machine Weight |
1t |
Dimensions of Shrink Oven |
L3,700*W920*H1,800 |
Maximum Packaging Size |
L600*W400*H350 |
Packaging Speed |
5-8 packages |
Conveying Belt Width |
920 (adjustable 200) |
Power of Working Power Supply |
3-phase 5-wire 380V 20KW |
Working Pressure |
0.6-0.8Mpa |
Machine Power |
18kw |
