Single Antenna Support 20~70KM/H HD Car DVB-T2 Car Digital TV Receiver Fully Compatible With DVB-T2 and H.264 MPEG-4 MPEG-2

US$ 44.5 - 63.5 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

OEM

Model Number:

RT M-689

Hangzhou Reacher Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen Port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name OEM

Model Number RT M-689

FTA(Free To Air) Yes

Type Digital

High Definition Yes

Single antenna Support 20~70KM/H HD Car DVB-T2 Car digital TV Receiver Fully compatible with DVB-T2 and H.264 MPEG-4 MPEG-2

OEM &ODM Order are warm welcomed !

Specifications:

Support H.264/AVC,MPEG-2,MPEG-4 video Decode
Available to upgrade the firmware via USB slot.
USB Recorder, PVR.
Standard for DVB-T and DVB-T2
Auto searching and upgrading bit rate information
Storage for 2000 channels
Memory function after power off.
Support OSD TELETEXT
4 video output (Composite video CVBS) and 2 audio output (Double track stereo output)
Multi language Support: English, Russian, French, Germany, Spanish, Italian, Portuguese, Danish, Czech, Thailand (We can do what you need).
EPG program guide and PIG (Picture in Graphics) Function.
6MHZ,7MHZ,8MHZ Band-wide
HDMI output(One Route)
Video Output(Three Route)
Audio-R, Audio-L Output.
Support TR output and extended remote sensor receiver.
Google DVB-T2C to get perfect technology support and upgrade software.
Outputs: CVBS, HDMI
PAL/NTSC auto conversion
Speed: 20-70km/h

Technical Parameters:

Input frequency: VHF: 177.5 MHz-226.5 MHz, UHF: 474MHz-858MHz
Modulate: QPSK/16-QAM/256-QAM
Decode standard: MPEG4,MP@ML,MP@HL,H.264/AVC
Audio decode standard: MPEG-1,MPEG-2,Layer and 2,MPEG-4,HE-AAC
4 Way video output (One way from power socket if need)
Output Resistance: 75 ohm
Output Voltage: 1.0’20mVp-p
Audio output:2Vp-p
Power supply: DC 12V-24V 6W
Connecting Terminal: Active amplifier antenna input jack (5V supply), Quadrate car power input jack (Battery+, Battery-, ACC+) , R/L Audio 3X Video output External remote control IR cord jack, external power supply input jack, USB upgrade socket, HDMI High-definition output jack.
Applicable Power Supply: Car storage battery (12V~ 24V)
Application Temperature: -5 ~40 degree
Storage Temperature: -20~70 degree

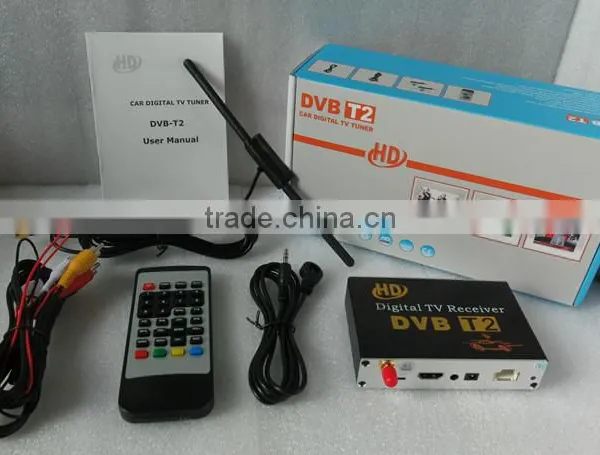

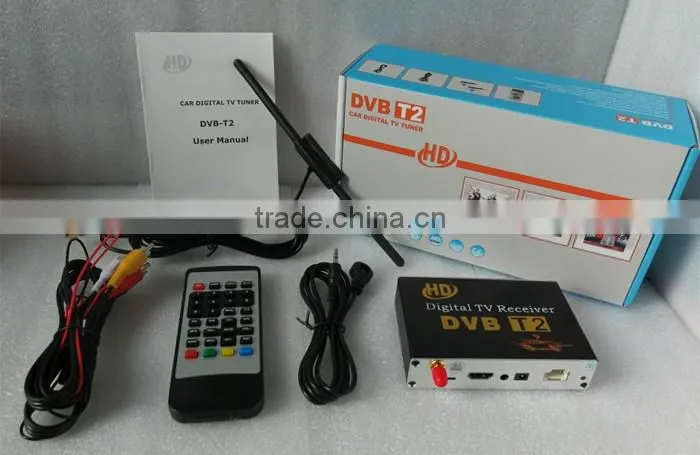

Package Lists:

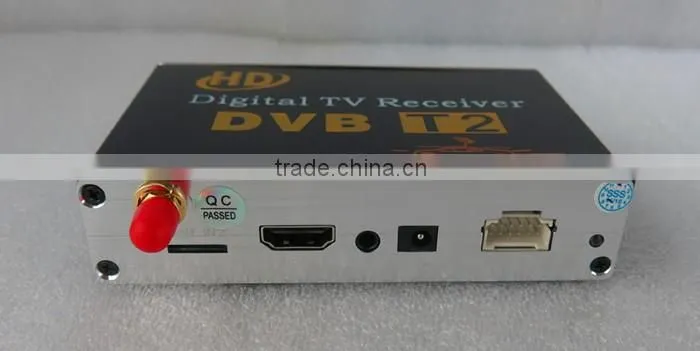

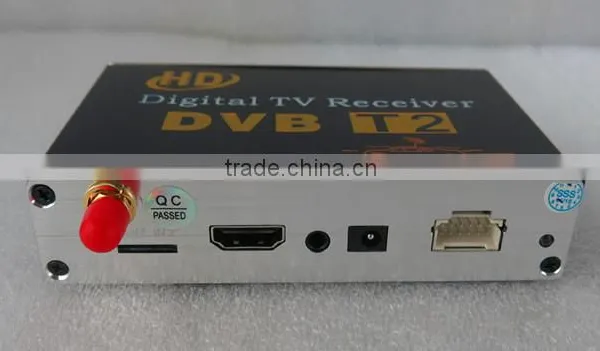

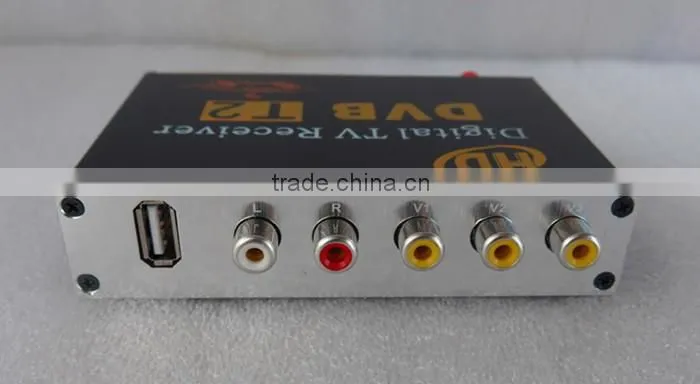

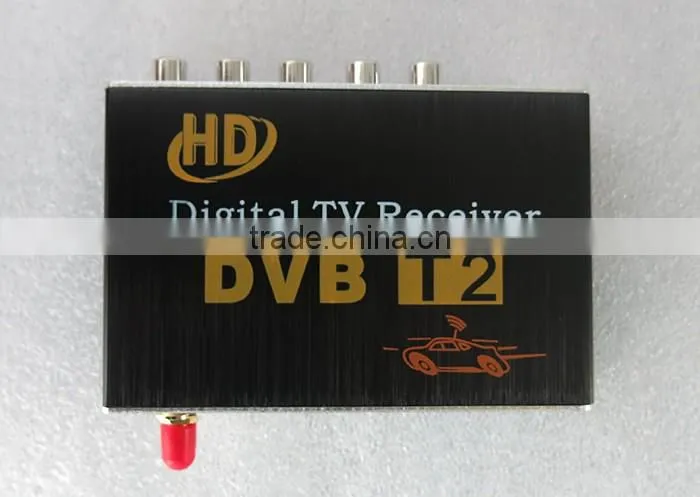

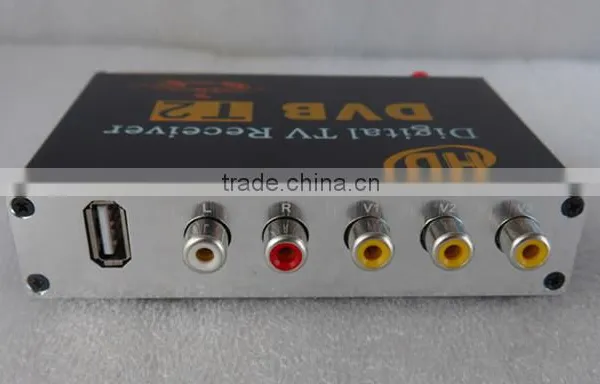

Product Detail Photos:

After-Sale Service:

One year warranty. But belongs to consumable parts are not within the scope of the warranty.
This product appears artificial or natural factors damage, not free warranty service, all expenses that damaged products caused shall be borne by the customer.
This product does not allow customers to open machine texting or repair parts, please do not open by yourself.
Please contact our factory or agent if it appears abnormal situation during the process of using the product.
All products of the normal working voltage is 12V, deviation value is +-3V,please let us know if the connection beyond the voltage before being installed or buying, we also provide the transformer or change the product working voltage at your request.
We are normal manufacturer , all products are made of imported original accessories and raw material , we do not accept the deck or copy imitation products return goods that are not belong to our company.
