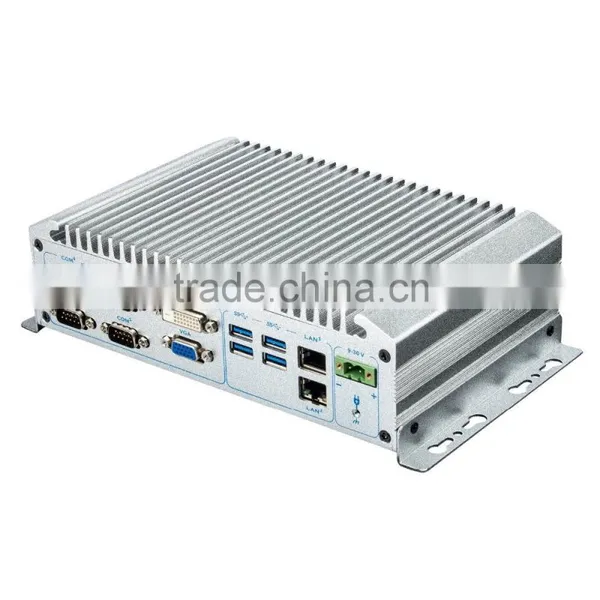

Intel Haswell/Broadwell U-series CPU Industrial Embedded Computers NIS-898

Intel Haswell/Broadwell U-series CPU Industrial Embedded Computers NIS-898 thumbnail-1
Intel Haswell/Broadwell U-series CPU Industrial Embedded Computers NIS-898 photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Embedded Computer
Brand Name:
YACOO
Model Number:
NIS-898
Contact Supplier Request Quote Chat Now
Shenzhen Yacoo Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Embedded Computer
Brand Name YACOO
Model Number NIS-898
Place of Origin Guangdong, China
Specification
Processor CPU              Intel® Haswell/Brodwell Useries CPU (Duo Core),Celeron/I3/I5/I7 CPU compatible
CPU Package Onboard
FSB DMI
Chipset Intel® Haswell/Brodwell U-series
BIOS             System BIOS: SPI  BIOS, re-chargeable CMOS battery 65mah
Memory Architechture Sinlge Channel Low voltage DDR3 1666 MT/s
Capacity MAX 16GB
Socket SODIMM
Display Graphic Controller Intel® HD4000/5000/6000 series graphic media accelerator
DVI DVI-I connetor, max. resolution:4K
VGA Support VGA output
Dual Display VGA+DVI Synch. or asynch display
Ethernet Controller LAN1: Intel®I210 GbE LAN
LAN2: Intel®I210  GbE LAN
POE power module (optional)
Audio Controller Realtek HD ALC662 audio decoder(right&left channel + MIC)
Super I/O Controller NTC6106 SIO
H/W Monitor Watchdog Timer 0-255 sec., providing watchdog routine
Temp. Monitoring Support CPU/Motherboard/HDD Temp. monitoring
I/O Port USB 3.0 4 x USB 3.0 PORT,Support Max.+5V@1A.
USB 2.0             2*USB2.0 / 1.1 compatible,Support max. +5V@1A.
Serial Port Com1  9-wire RS232 TX/RX signal, support 4000V surge protection
Com2  3-wire RS232 TX/RX signal, support 4000V surge protection
Com3-COM4 3-wire RS232/RS485 optional,RS232 TX/RX signal, support 4000V surge protection, RS485 supports isolation protection.
COM5-COM6 3-wire RS232TX/RX signal, support 4000V surge protection
Optional COM7-COM10 3-wire RS232TX/RX signal, support 4000V surge protection
GPIO DB15 male,12bit,providing routine, user-defined I/O, 3.3V@24mA
Expansion Bus Mini-PCIe 1* half-size Mini-PCIe 1xsocket,support PCIe & USB device
1*full-size Mini-PCIe 1x socket, support USB 3G/4G communication module
3G UIM socket
Storage SATA             Standard SATA connector, plus external SATA HDD power connector
M-SATA 1*full-size m-SATA  scoket,  Max. transmission rate: 3Gb/s
Power Power Type AT/ATX (Jumper selection on H/W),DC9-30V input,LTM3780 power design,support power reverse/Over-voltage protection, 2PIN 5.08mm phenix connector
LED Status LED HDD LED
POWER LED
L1L2 user-defined LED
COM1-COM6  LED, flicker when working
External power connector
Environment Operating Temp. -20°C ~ 60°C
Storage Temp. -40°C ~ 80°C
Operating Humidity 0% ~ 90% relative humidity, non-condensing
Storage Humidity 0% ~ 90%  relative humidity, non-condensing
Dimension Motherboard 200 x 130mm,Box PC: 215 x 136 x 50mm
Weight
Certificate FCC, CE, RoHS
