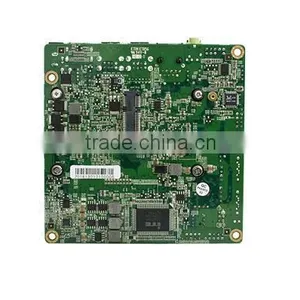

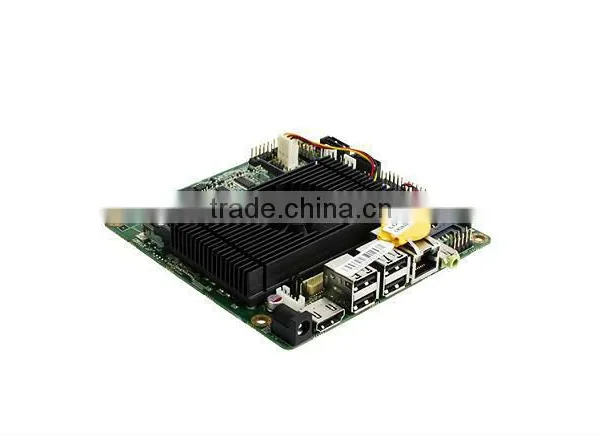

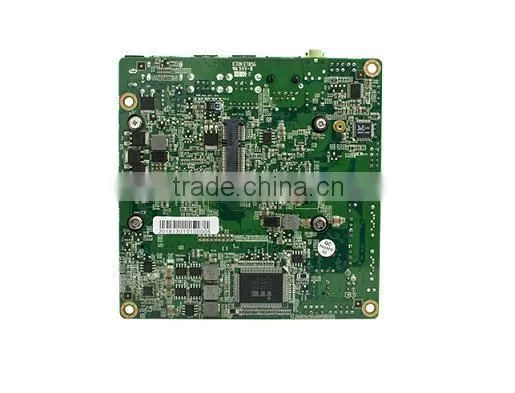

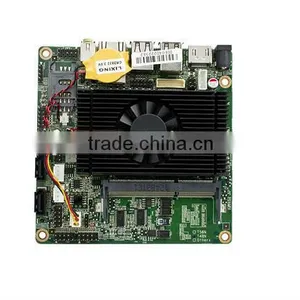

AMD Embedded Nano-ITX Motherboard DS-2018 Single Board Computer
Negotiable
MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Other, Digital Signage,medical equipment,gaming machine
Chipset Manufacturer:
AMD
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
AMD T56N Nano-ITX Motherboard DS-2018 Embedded MotherboardsNegotiableMOQ: 2 Pieces -
AMD Kabini G-SOC 2.0/2.0GHz Dual Core / Quad Core APU Full HD Digital Sinage Nano-ITX Motherboard DS-2019NegotiableMOQ: 1 Piece
-
AMD Kabini G-SOC 1.5~2.0GHz Dual Core / Quad Core APU Full HD Digital Sinage Nano-ITX Motherboard DS-2019NegotiableMOQ: 1 Piece
-
AMD Kabini G-SOC 2.0/2.4GHz Quad Core APU Full HD Digital Sinage Nano-ITX Motherboard DS-2019NegotiableMOQ: 1 Piece
-
AMD Kabini G-SOC Quad Core APU Full HD Digital Sinage Nano-ITX Motherboards DS-2019 Digital Signage MotherboardsNegotiableMOQ: 1 Piece
Products Status
Stock
Application
Other, Digital Signage,medical equipment,gaming machine
Chipset Manufacturer
AMD
Socket Type
Other, Onboard
Form Factor
Other, Nano-ITX
Memory Type
DDR3
Graphics Card Type
Integrated
Hard Drive Interface
IDE, SATA
FSB / HT
800/1066/1333 MHz
Brand Name
YACOO
Model Number
DS-2018
Place of Origin
Guangdong, China
| Specification | ||
| Processor System | CPU | AMD® Embedded G-Series APU T56N-1.6GHz |
| CPU Socket | Onboard | |
| FSB | 800/1066/1333 MHz | |
| Chipset | AMD® eBrazos + Hudson-M1 | |
| BIOS | AMI EFI BIOS | |
| System Memory | Tech Architecture | Dual Channel DDR3 800/1066/1333MHz FSB |
| Max.Capacity | Up to 4GB | |
| Socket | 1 * SO-DIMM (204pin) | |
| Display | Graphic Controller | AMD® RadeonTM HD6 series support DirectX® 11 |
| LVDS | Support Dual channel 18/24-bit | |
| Resolution: up to 1920 * 1080 (Support 1080P) | ||
| VGA | Onboard pin header | |
| Resolution: up to 2560 * 1600 | ||
| HDMI | Support HDMI 1.3 ,Type A, 19-pin | |
| Resolution: up to 2560 * 1600 | ||
| Display Port | N/A | |
| N/A | ||
| Dual Display | CRT+LVDS, CRT+HDMI, LVDS+HDMI | |
| Ethernet | Controller | LAN1: Realtek 8111E GbE LAN |
| LAN2: N/A | ||
| Audio | Controller | Realtek ALC662 HD Audio Codec (Right&Left channel+MIC, support amplifier output.) |
| Super I/O | Controller | ITE IT8728F |
| H/W Monitor | Watchdog Timer | Programmable 1 ~ 255 sec./min.; Support System Reset |
| Smart Fan | 1 * 3 Pin DC Fan control | |
| TPM | Controller | N/A |
| I/O Interface | USB | 8 * USB 2.0 /1.1 compatible |
| Serial Port | 2 * RS-232 | |
| Parallel Port | N/A | |
| PS/2 | N/A | |
| GPIO | N/A | |
| IEEE 1394 | N/A | |
| Expansion Slot | PCIeX16 | N/A |
| PCIeX4 | N/A | |
| PCIeX1 | N/A | |
| PCI | N/A | |
| Mini-PCIe | 1 * Mini-PCIe socket, Support 3G Module | |
| USIM | 1 * Standard SIM socket | |
| Storage | SATA | 2 * SATAⅡ, Max.transfer Rate 3Gb/s |
| IDE | N/A | |
| eSATA | N/A | |
| Compact Flash | N/A | |
| Power Source | Power Supply | DC-in 12V @ 5A |
| Power Consumption | Typical PW:20W | |
| Environment | Operating Temperature | -10°C~60°C |
| Storage Temperature | -40°C~ 85°C | |
| Operating Humidity | 0% ~ 90% relative humidity,non-condensing | |
| Storage Humidity | 0% ~ 90% relative humidity,non-condensing | |
| Form Factor | Dimensions | 120 mm * 120 mm |
| Weight | 0.208Kg | |
| Regulatory Compliance | FCC, CE, RoHS compliant | |
