Prime Electrolytic Tinplate Sheets T55 MANUFACTURER

Name: Prime Electrolytic Tinplate Sheets T55 MANUFACTURER
Brand: Guolian
SKU: 131730239

Negotiable MOQ: 50 Tons (Price negotiable depending on order volume and customization)

Key Specifications

Standard:

GB, JIS

Grade:

SPTE

Width:

600-980mm

Jiangsu Guolian Plate Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Standard GB, JIS

Grade SPTE

Width 600-980mm

Thickness 0.15-0.50mm

Hardness Other, T55

Place of Origin Jiangsu, China

Brand Name Guolian

Model Number GL-sheets-1

Type Tinplate Sheet

Application metal packaging as cans,lids,ends

Specifications

prime electrolytic tinplate sheets T55
Thickness:0.15-0.50mm
Annealing: BA
Surface:bright,stone
Tin coating:1.1-5.6g/m2

Prime electrolytic tinplate sheets T55 Manufacturer

Technical Standard	JIS G3303
Thickness	0.15 to 0.50 mm
Roll width	600 to 980 mm
Cutting length	600 to 1200 mm
Tin coating weight	1.1-5.6gm2, 2.8/2.8 gr/m², 5.6/5.6gr/m² or others
Temper and Annealing	T2, T2.5, T3,T3.5,T4,T5, DR8,DR9 BA
Surface	Bright/Stone/Silver finish with passivation treatment; DOS oil
Quality	Prime; Pinhole detector on both coating and cutting lines

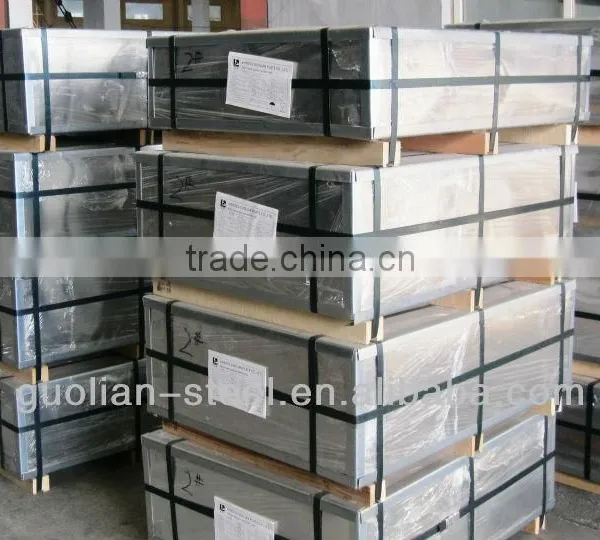

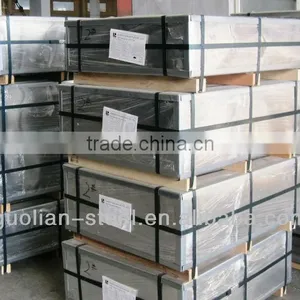

Packaging Details: Thin plastic film+rust-proof paper+metal cover+metal angles+straps+pallet Loaded in 20 feet container with max weight of 25 tons.
Application: Food Cans(dry food can, Tuna fish cans, olive oil, Edible oil can etc.) Industrial Cans(Paint Cans ,Chemical Cans ,Lube containers) General Line Packaging(Aerosol Can, Gift Cans,Cookies Cans,Stationery Box etc.)

Surface finish
Surface finish	Nominal surface roughness (um Ra)	Characteristic
Bright finish	≤Q0.35	Glazed surface obtained after melting treatment of electrotinned smooth raw materail strip with extremely fine rubstone fingure by processing.
Stone finish	0.25~0.60	Glazed surface obtained after melting treatment of electrotinned smooth raw materail stripfeaturing certain rubstone figures.
Silver finish	0.50~1.00	Glazed surface obtained after melting treatment of electrotinned smooth raw material strip with rough matt furface.
Matte finish	0.80~2.50	Matt surface of general matt raw material strip without melting treatment.
