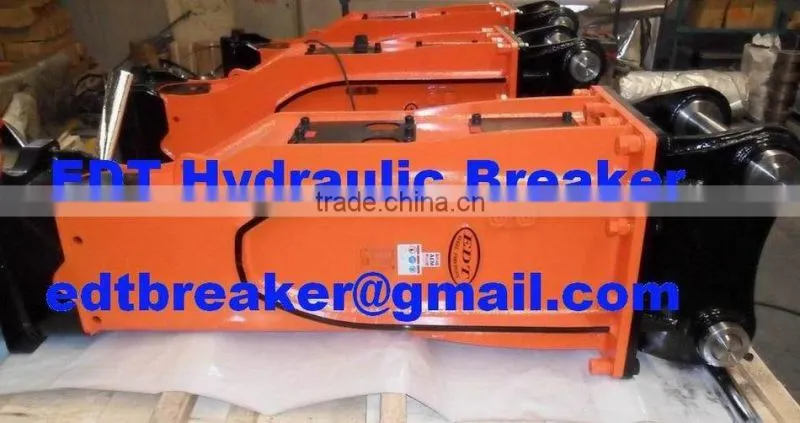

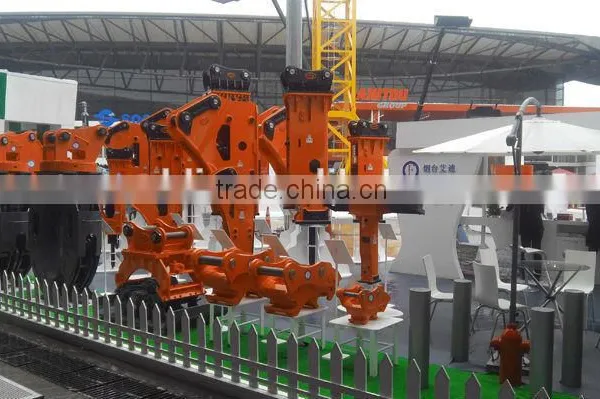

Hydraulic Breaker Open Type Top Type
US$ 1 - 2,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
EDT
Model Number:
EDT100
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hydraulic Hammer for PC50 ExcavatorsUS$ 10 - 25,000MOQ: 10 Units -
Open Type Hydraulic BreakersUS$ 1 - 24,500MOQ: 1 Unit
-
Hydraulic Breaker Edt Eddie Yantai EDT100 EDT800US$ 1 - 2,450MOQ: 1 Unit
-
Rock Hydraulic Breaker HammersUS$ 1 - 2,000MOQ: 1 Unit
-
Hydraulic Rock Breaker HammersUS$ 1 - 20,000MOQ: 1 Unit
Place of Origin
Shandong, China
Brand Name
EDT
Model Number
EDT100
After-sales Service Provided
Overseas service center available
1, Higher power to weight ratio.
2, Fewer components, less maintenance.
3, Simple design structure makes customers reduce the maintenance cost hugely.
4, selected Reinfored steel for its long durability.
5, The damper reduces vibration and noise, very friendly to working environment.

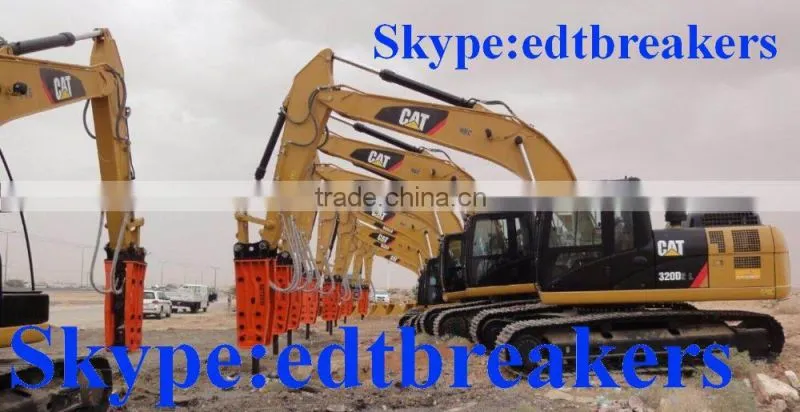

EDT hydraulic hammer can be mounted into all the makes and models of hydraulic excavator .including caterpillar/Komatsu/ Hitachi/ JCB/ Volvo/ Jorn Deere/ Doosan/Daewoo/kobelco/Kato/Hyundai/Liugong/Yuchai/Sany/New holland/Sumitomo/
| Model | EDT100 | |
| Specification | Unit | |
| Body weight | kg | 46 |
| lbs | 101 | |
| Total weight | kg | 102 |
| lbs | 224 | |
| Length | mm | 1135 |
| inch | 44 | |
| Hydraulic oil pressure | kg/cm2 | 80-110 |
| psi | 1120-1540 | |
| bar | 78-107 | |
| Hydraulic oil flow | l/min | 15-25 |
| gal/min | 3.9-6.5 | |
| Impact frequency | bpm | 800-1400 |
| Hose diameter | mm | 12.7 |
| inch | 0.5 | |
| Chisel diameter | mm | 40 |
| inch | 1.77 | |
| Chisel weight | kg | 4 |
| lbs | 9 | |
| Applicable bucket capacity | m3 | ≤0.07 |
| Applicab carrier weight | ton | 1.2-3.0 |
| Impact power | ft-lbs | 149 |
| Joule | 203 | |
| Main valve type | Inward | |
| Accumulator | No | |
| Accumulator pressure | kg/cm2 | N/A |
| Nitrogen pressure | kg/cm2 | 16.5 |
rock breaker
