Top Type Hydraulic Breakers
US$ 1 - 24,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
EDT
Model Number:
EDT400
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hydraulic Breaker China Top 1 Brand Edt EddieUS$ 10 - 22,000MOQ: 1 Unit -
Top Tye Hydraulic BreakerUS$ 2,000 - 25,000MOQ: 1 Set
-
Hydraulic Hammer Price Bottom Low PriceUS$ 10 - 24,500MOQ: 1 Acre
-
EDT Top Tye Hydraulic BreakerUS$ 2,000 - 25,000MOQ: 1 Set
-
Box-silenced Tye Hydraulic Breaker PC300US$ 2,000 - 25,000MOQ: 1 Set
Place of Origin
Shandong, China
Brand Name
EDT
Model Number
EDT400
After-sales Service Provided
Overseas service center available

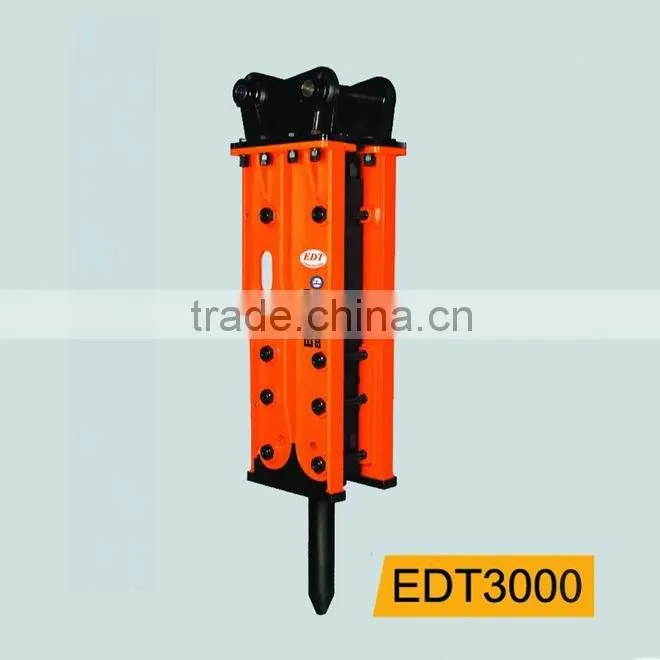

EDT3000 top type hydraulic hammer breakeer
1) Model: EDT3000 hydraulic hammer
2) Weight: 2540kg
3) Lenth: 3020mm
4) Working Pressure: 160-180kg/cm2
5) oil flow rate: 150-190 l/min
6)impact rate: 300-700bmp
7) Tool/rod diameter:150 mm
8)Applied carrier: 27-35 ton excavator
9) diameter of hose: 1.25 inch
10) impact energy: 7000 joule
EDT top type hydraulic breaker hammer can be suited the Excavator of Cat, Case, JCB, Komatsu, Hitachi, Daewoo, Doosan, Volvo, Kobelco, Sumitomo, Terex, Libeheer, Hyundai, Jonyang, Liugong, Johndeer etc
Powerful impact energy, longer durability, easy maintance, Low cost top type Hydraulic breaker hammer
hydraulic breaker
| ITEMS | Model | EDT3000 | ||
| 1 | Body Weight (Kg) | kg | 1106 | |
| 2 | Total weight(Kg) | kg | Side | 2530 |
| Top | 2420 | |||
| Box | 2540 | |||
| 3 | Length(mm) | mm | Side | 2519 |
| Top | 3013 | |||
| Box | 3020 | |||
| 4 | Working pressure | kg/cm2 | 160-180 | |
| 5 | Oil flow range | l/min | 150-190 | |
| 6 | Impact frequency | bpm | 350-700 | |
| 7 | Impact Energy Class(depends) | Joules | 7000 | |
| 8 | Diameter of hose | mm inch | 25.4 1 | |
| 9 | Diammeter of tool | mm | 150 | |
| 10 | Length of Tool | mm | 1300 | |
| 11 | Weight of Tool | kg | 160 | |
| 12 | Suitable Carrier bucket Volume | m3 | 0.9-1.2 | |
| 13 | Suiteable Carrier Weight | ton | 27-35 | |
| 14 | Main Valve Type | Outward | ||
