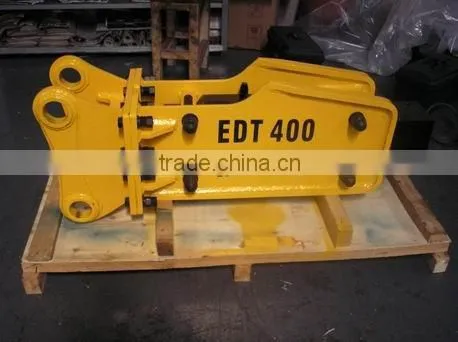

Rock Breaker Hammer for Kato Excavators Edt4500 Edt2100
US$ 1 - 24,500
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
EDT
Model Number:
EDT430
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hydraulic Breaker Specially for Australia New ZealandUS$ 1 - 24,500MOQ: 1 Unit -
Rock Breaker Hammer 300kg 500kg Edt EddieUS$ 1 - 24,500MOQ: 1 Set
-
Hydraulic Hammer for Iran Market Middle EastUS$ 2 - 24,500MOQ: 1 Acre
-
Hydraulic Hammer Breaker PC220 Pc200 220US$ 1 - 24,500MOQ: 1 Tray
-
Hydraulic Hammer for PC40 50 60 Excavators Backhoe LoaderUS$ 1 - 24,500MOQ: 1 Acre
Place of Origin
Shandong, China
Brand Name
EDT
Model Number
EDT430
After-sales Service Provided
Overseas service center available

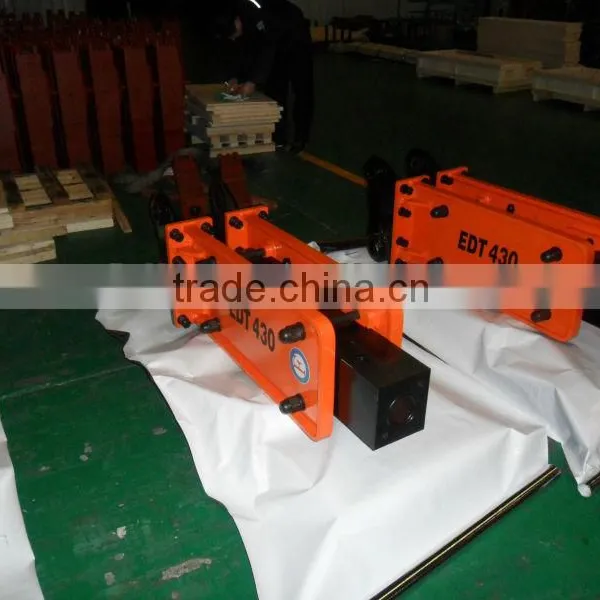

| rock breaker | Model | EDT430 |
| Specification | Unit | |
| Body weight | kg | 220 |
| lbs | 485 | |
| Total weight | kg | 386 |
| lbs | 850 | |
| Length | mm | 1722 |
| inch | 67 | |
| Hydraulic oil pressure | kg/cm2 | 120-150 |
| psi | 1680-2100 | |
| bar | 117-147 | |
| Hydraulic oil flow | l/min | 50-90 |
| gal/min | 13.1-23.6 | |
| Impact frequency | bpm | 400-800 |
| Hose diameter | mm | 12.7 |
| inch | 0.5 | |
| Chisel diameter | mm | 75 |
| inch | 2.95 | |
| Chisel weight | kg | 23 |
| lbs | 50.66 | |
| Applicable bucket capacity | m3 | 0.2-0.35 |
| yard3 | 0.15-0.27 | |
| Applicable vehicle weight | ton | 6-9 |
| lbs | ||
| Impact power | ft-lbs | 663 |
| Joule | 900 | |
| Main valve type | Inward | |
| Accumulator | No | |
| Accumulator pressure | kg/cm2 | N/A |
| Nitrogen pressure | kg/cm2 | 16.5 |
rock breaker
EDT rock breaker offer the value that exceed your expectation. after testing, you will know its value.
IT is best for your 4-7ton excavator.
