Overview
FI6603 is a new model optical fiber identifier . It adopts the micro-bend technology to do the on-line test without interrupting current service and no damage to the fiber. It can be used in both SM and MM networks.
As a new product, it remains the basic function of fiber optic identifier, but add a new VFL function for short distance fault location.
Different to the mental case optical fiber identifier , the FI6603 optical fiber identifier only has 1 adapter, which can accommodate all type of adapter diameter<=3mm.It avoids the interchange of connectors and make it more convenient and fast in operation.
Features
- optical fiber identifier
- Plastic material and lightweight
- Added VFL function
- Only 1 adapter
- In-line test without interrupting the current service
- Signal direction and modulation display
- Relative core power display
- Low power indication
-
60 hours working time
Specification
Model |
FI6603 |
Wavelength (nm) |
800~1700 |
Detector |
InGaAs |
Connector (mm) |
<3 |
Modulation(Hz) |
CW/270/1K/2K |
Direction |
Left or Right |
Power Test Range (dBm,CW/0.9mm ) |
-35~10 |
Modulation Identification (Hz) |
270/1K/2K |
Insertion Loss (dB) |
<1 |
VFL Wavelength (nm) |
650 |
VFL Output Power (mw) |
10 |
Battery (V) |
2pcs AA |
Working Time (h) |
60 |
Operating Temperature (℃) |
0~+50 |
Storage Temperature (℃) |
-10~+70 |
Dimension (mm) |
230*43*48 |
Weight (g) |
200 |

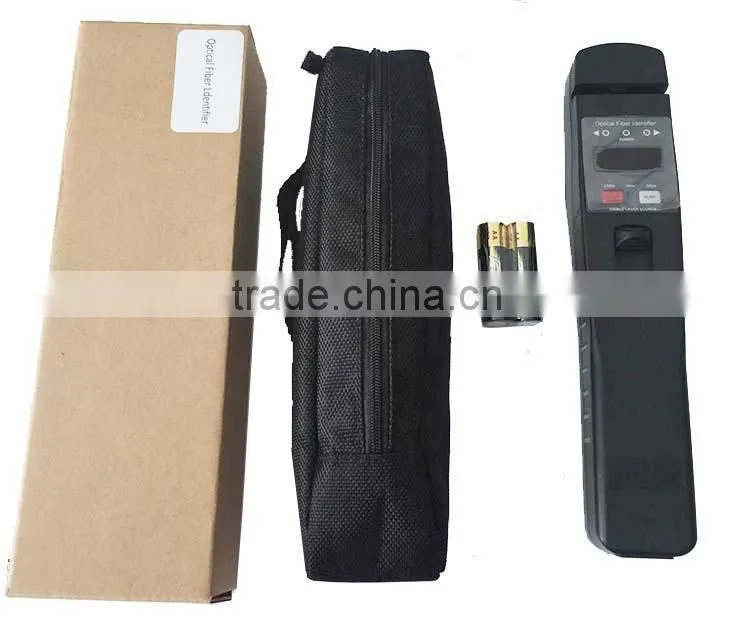

Standard Accessories
1) Optical fiber identifier
2) Battery
3) Manual
4) Carrying bag
