Galvanized Welded Mesh Type gabion box/basket/container for Retaining Wall
1, Welded Mesh Gabion Description:
name: Welded Mesh Type Iron Wire Gabion
size: 2m x 1m x 1m, 3m x 1m x 1m, 4m x 1m x 1m, 2m x 1m x 0.5m, 4m x 1m x 0.5m
Wire diameter : 2.0~5.0mm
hole size : 25X25 to 100X100mm
Edge wire : 2.5-6mm
Tie wire : 2.2mm
MOQ: 100 set
2, Welded Mesh Gabion Specification sheet :
Mesh wire diameter |
3mm,4mm,5mm,6mm etc as require |
Spring wire diameter |
3mm,4mm,5mm,6mm etc as require |
Mesh size |
50*50mm,50*100mm,37.5*100mm,60*60mm,65*65mm,70*70mm,76*76mm,80*80mm or as your request. |
Panel Size |
0.61*0.61m,1*1m,1.2*1.2m,1.5*1.5m,1.5*2m,2*2m, 2.21*2.13m or as your request. |
Finish |
Electro galvanized after welded Hot dipped galvanized welded PVC coated after welded |
Geotextile |
Heavy duty non-woven polypropylene |
Packing |
Wrapped with shrink film or packed in pallet |
3.Material: Low Carbon Steel Wire.
4, Welded Mesh Gabion used :
are used in slope support, Foundation pit, mountain rock face mesh shotcrete Gabion ,gabion cages cages Slope vegetation (green), railroad highway isolation guarding block. it also can be made into cages, nets mats, scour protection of rivers, levees and seawalls, reservoirs and river closure with a cage. The most serious disaster for river is River water flow make it destroy, Causing flooding, resulting in significant loss of life and property and massive soil erosion. In dealing with these issues when the ecological grid structure applied to become one of the best solutions, it can make the river banks receive permanent protection.
5, Welded Mesh Gabion Advantage :
* Flexible structure to adapt to changes in the slope without being destroyed, better than the rigid structure with the security and stability;
* Anti-erosion ability, able to withstand the maximum flow rate of up to 6m / s .
*This structure has essentially permeability, groundwater and the filtering effect of the natural role of a strong inclusive, suspended matter and silt in the water to move in to fill the crevice in precipitation, which is conducive to the growth of natural plants, and gradually restore the original ecological environment.
6.Welded Gabion Characteristics:
1)Econimic. Just put the stone in the Gabion and seal it.
2)Available in a range of wire diameters to suit the application.
3)The ability to modify the unit without affecting the integrity of the mesh.
4)Welded Gabion is dimensionally stable therefore alignment and deformation are controllable.
5)Easier and higher quality of installation.
7.Pictures Showing:

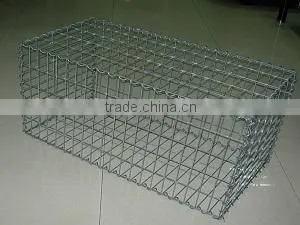

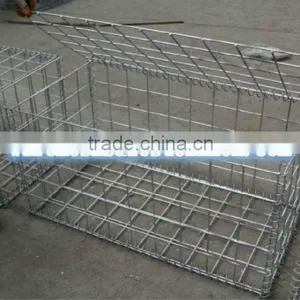

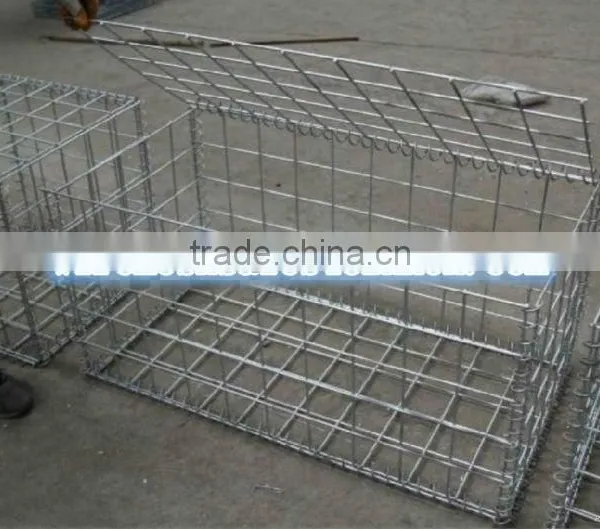

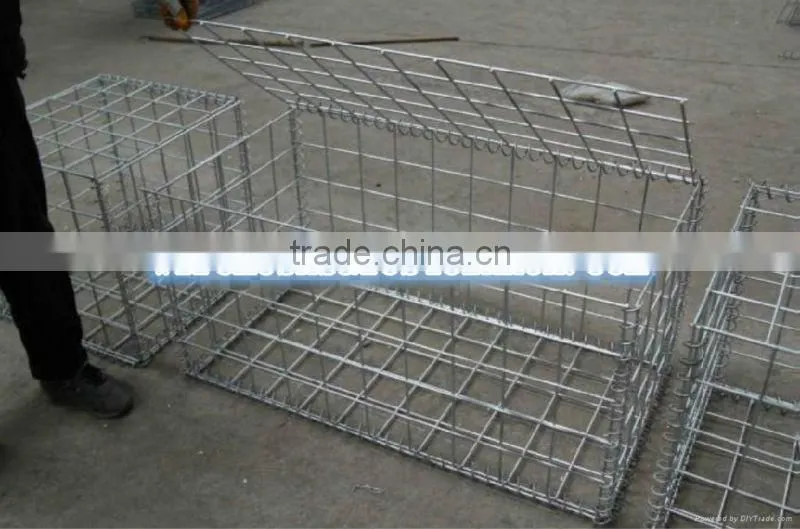

Assembled Welded Gabion Basket

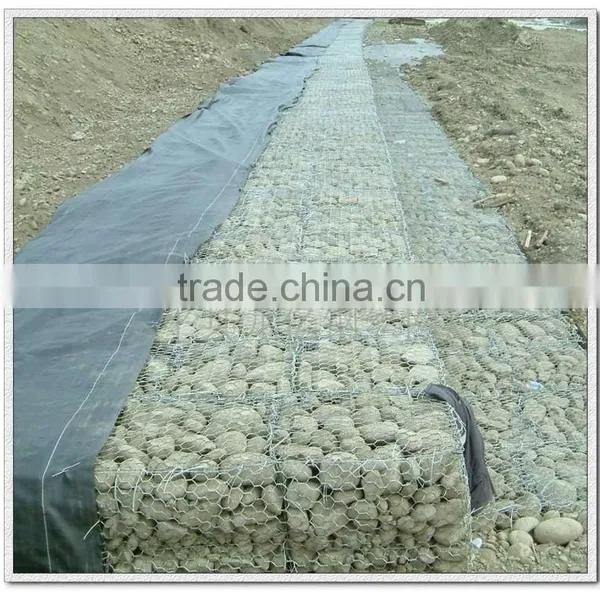

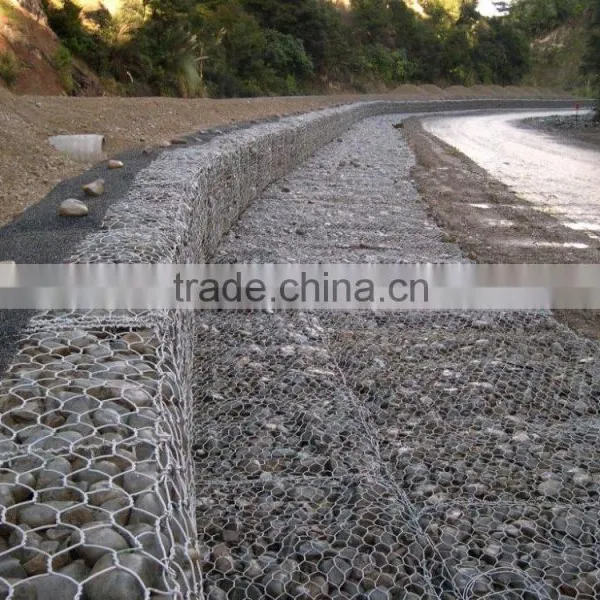

8.Welded Gabion APP In The Construction:

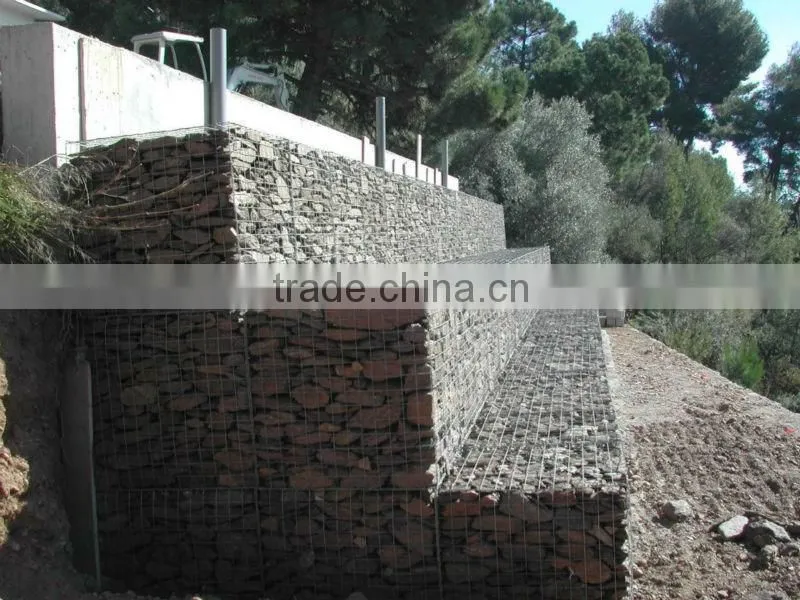

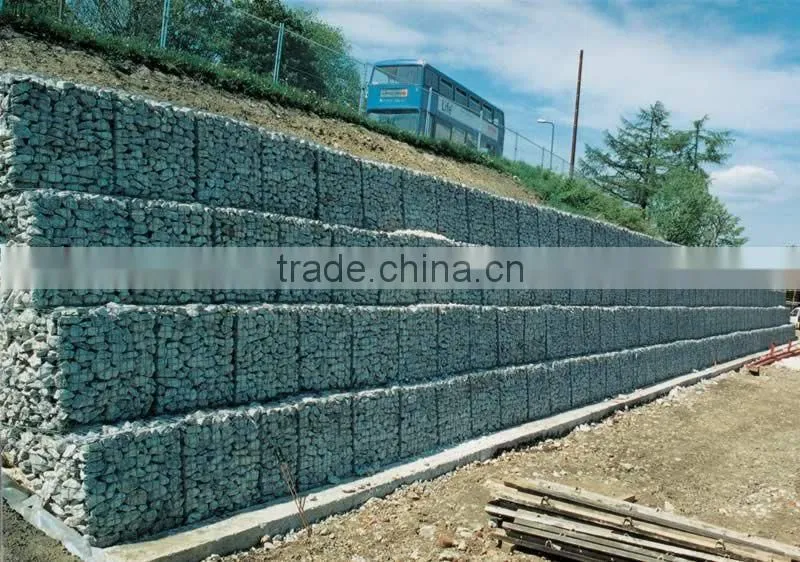

1)Retaining Wall

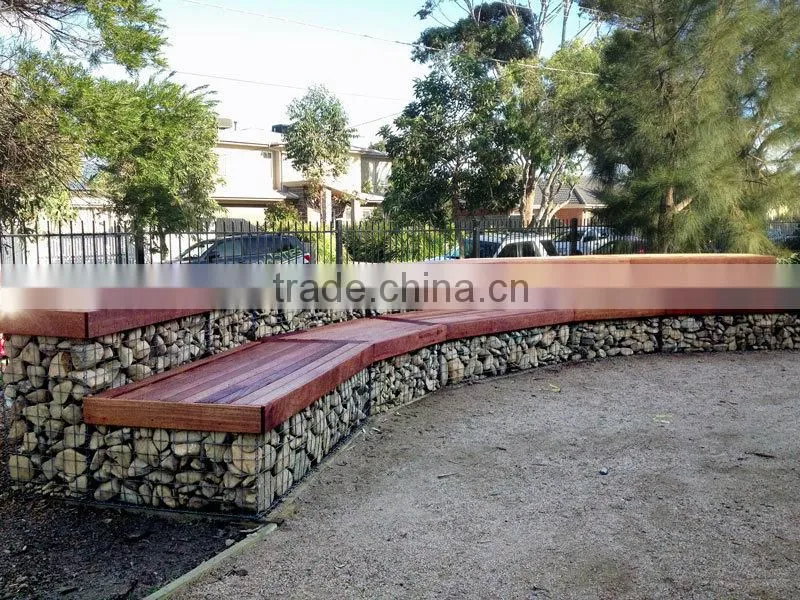

2)Bench In The Park

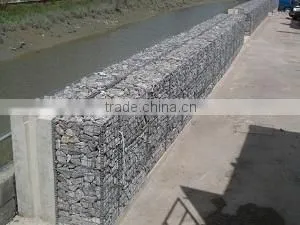

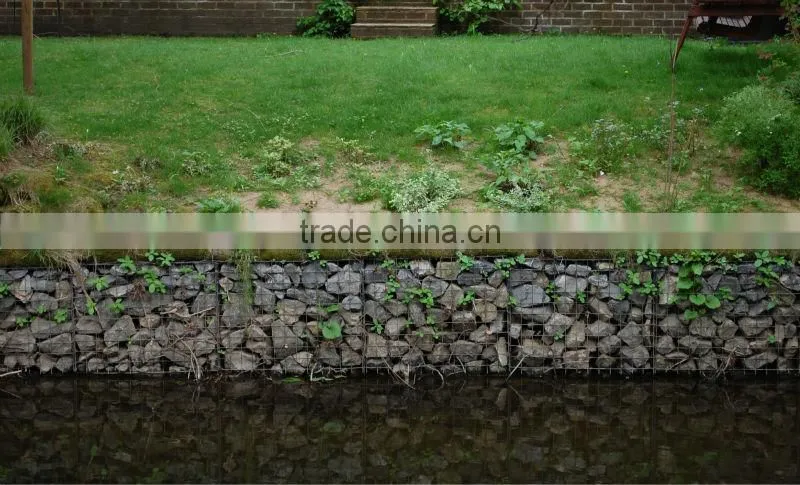

3)Control and Guide the water
4)Steps

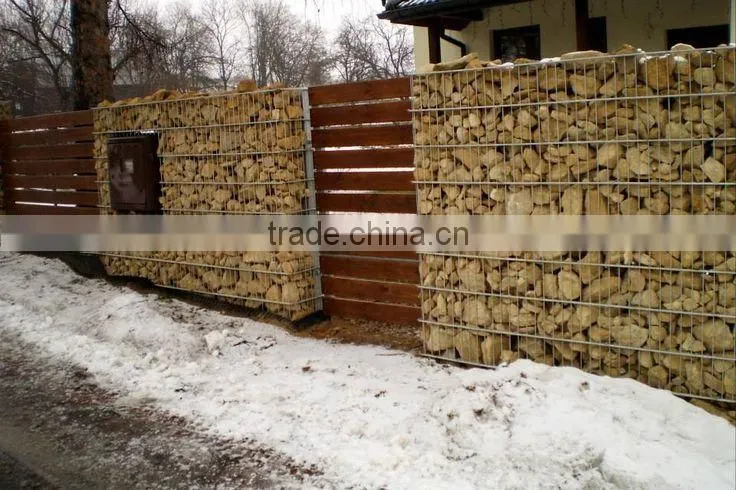

5)Gabion Wall
