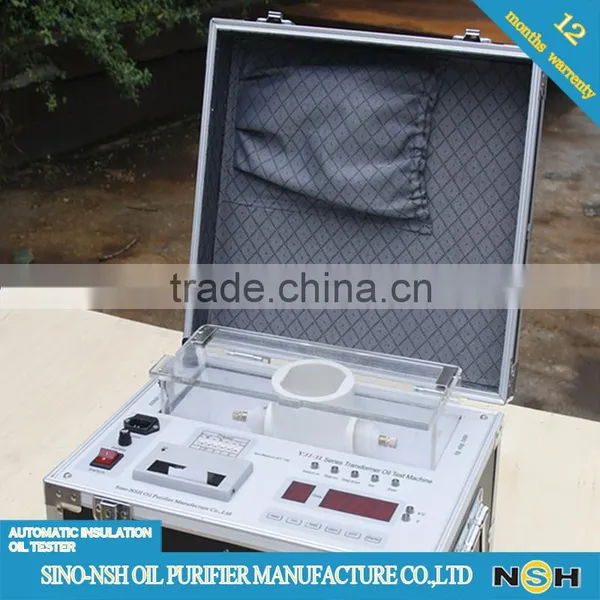

Transformer Oil Tester
(Dielectric Strength)
1. The summary
Insulation oil test machine is produced according to the National Standard GB-86 “Determination Method for Dielectric Strength of Transformer Oil”. The parameters are set in advance with the adjusting switch and then the instrument strictly works on the basis of the preset parameters. After doing one test, the results can be printed if you want. This instrument has a series of characteristics, such as strong anti-jamming, simple operation, sound light warning.
2. Technical index
1) input voltage : AC 220v
2) output voltage :AC 0-80kv
3) voltage rising rate: 2kv/s±10%
4) test precision: 2.0grade
5) testing times : 1---9 times, mix round time: 0---99seconds, quiescence time: 0---9 minutes and 59 seconds
6) temperature range for using: 5---40°C, relative humidity:≤90% RH
7) dimensions: 420mm*325mm*300mm, net weight:28kg

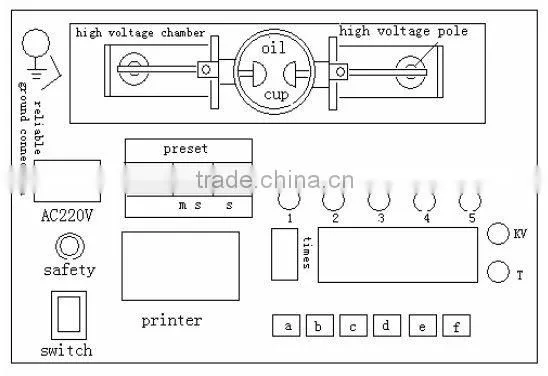

3. Structure
1.switch-on 2.step-on 3.step-down 4.stir 5.stew
a. reset b. run c. keep d. alarm e. print f. display
/watch?v=x1H1jbX1vAM
