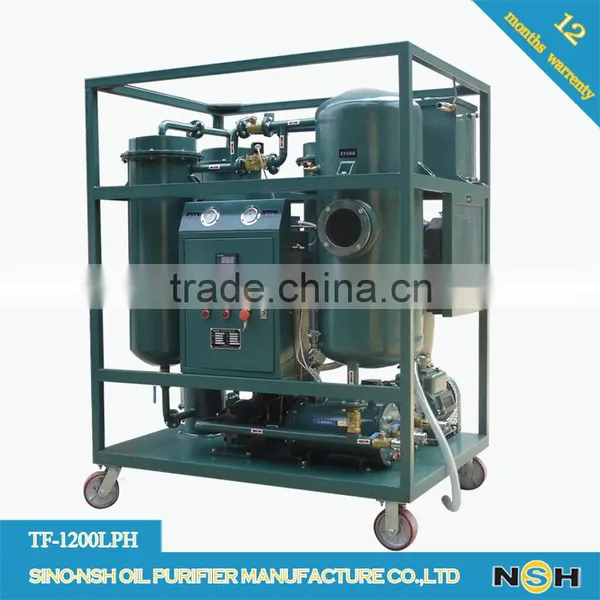

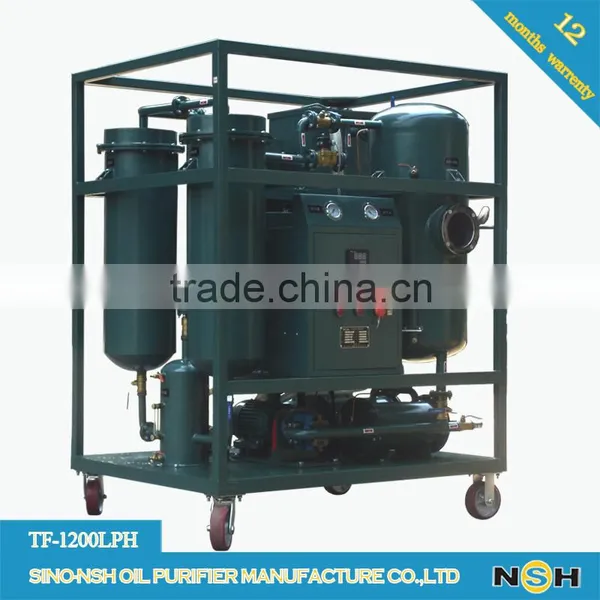

Vacuum Turbine Oil Purifier Centrifugal Type
Combination System
Application
TC series is particularly suitable for purifying turbine lubricating oil. It also applies to treat hydraulic, coolant oil and other lubrication in which contain large of water, vapor, impurities, sludge, dielectric and colloid.
It can eliminate them effectively and efficiently. TC series will result in the improvement of the properties of turbine oil, other lubrication and extend the maintenance period of turbine or other equipment which has lubrication system and keep them operate in good condition.
Fuel treatment, Lube oil treatment, Marine, Power stations, Oilfield industry
Features
Eliminate soluble and dissolved water effectively and demulsify rapidly
High effectively purify matters in oil such as impurities, sludge etc.
High automation, stability and operation online
Programmable Logical Control available
The centrifugal holds the feature of
Water Separate Sensor
Drum Equips Hydraulic Structure
Slag is removed thoroughly
Stable Transmission Structure
More simple mechanical structure
Oil Index after Purification
Water content before purification |
≥ 50 ppm |
Water content after purification |
≤ 5 ppm |
Gas content before purification |
10.5 % |
Gas content after purification |
≥ 0.5% |
Contact us for more details:
Skype: evychen517
Specification of vacuum part
Item |
Unit |
TF-10 |
TF-20 |
TF-30 |
TF-50 |
TF-100 |
TF-150 |
TF-200 |
|
Flow Rate |
L/H |
600 |
1200 |
1800 |
3000 |
6000 |
9000 |
12000 |
|
Vacuum Range |
Mpa |
-0.06 ~ -0.096 |
|||||||
Working Pressure |
Mpa |
≤ 0.3 |
|||||||
Clearness |
NAS |
≤ 6 |
|||||||
Temperature Range |
°C |
40 ~ 80 |
|||||||
Water Content |
PPM |
≤ 100 |
|||||||
Impurity Size |
μ m |
≤ 5 |
|||||||
Demulsification Number |
Min |
<15 |
|||||||
Power Supply |
V |
380V/50Hz(or as needed) |
|||||||
Working Noise |
dB |
≤ 70 |
≤ 75 |
||||||
Heating Power |
Kw |
9 |
18 |
27 |
36 |
72 |
90 |
120 |
|
Total Power |
Kw |
11 |
20 |
30 |
39 |
77 |
98 |
128 |
|
Pipeline Diameter |
mm |
DN20 |
DN20 |
DN20 |
DN25 |
DN32 |
DN40 |
DN50 |
|
Net Weight |
Kg |
320 |
400 |
420 |
450 |
750 |
850 |
950 |
|
Size |
length |
mm |
1280 |
1300 |
1300 |
1350 |
1500 |
1600 |
1700 |
width |
mm |
750 |
900 |
950 |
1000 |
1000 |
1200 |
1400 |
|
high |
mm |
1450 |
1450 |
1500 |
1800 |
1950 |
2000 |
2050 |
|
