Specifications
1.Length of Bag:110-330mm2.Width of Bag:30-110mm
3.Carbon Steel or Stainless Steel
4.CE Certificate

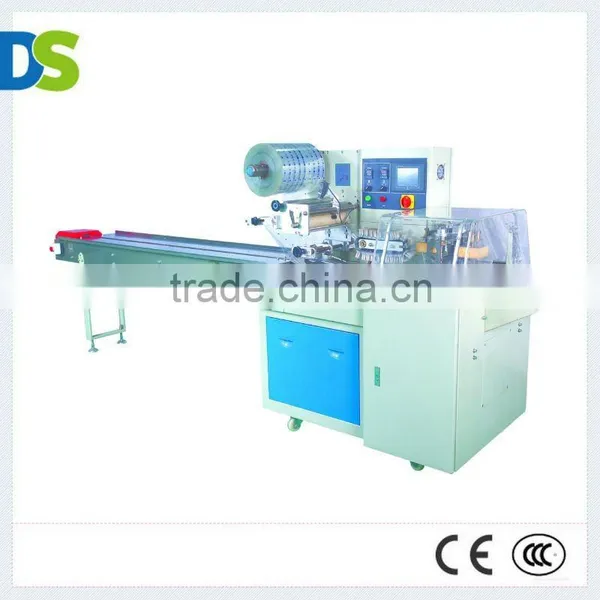

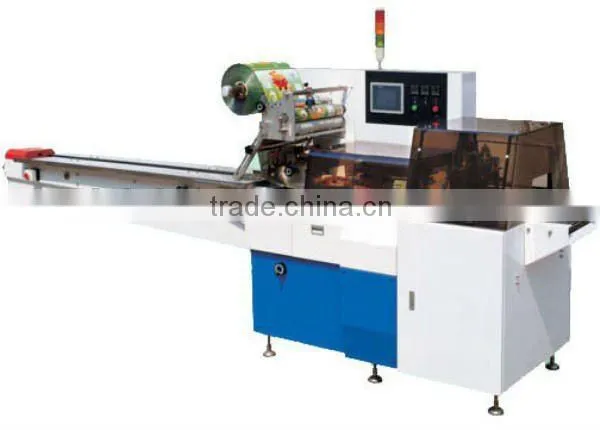

DSH-350W Pillow Type Automatic Horizontal Packing Machine
DSH-350W pillow type packing machine is controlled by touch screen controller with human-machine interface, and is easy to set parameter, works in high speed with high efficiency.
Application:
Suitable for packing regular objects such as biscuit, bread, instant noodle, moon cakes, spoon, medicine, hardware, industrial parts, paper box or trays and so on.
For the bulk cargo, it needs to be placed in a tray to form regular shape first before being packed.
Parameters:
Model |
DSH-350W |
DSH-450W |
DSH-600W |
Voltage |
220V/50Hz |
||
Power |
2.6KW |
3.2KW |
3.6KW |
Film Width |
Max.350mm |
Max.450mm |
Max.600 |
Length of Bag |
110-330mm |
120-450mm |
45-90mm |
Width of Bag |
30-110mm |
50-210mm |
50-280mm |
Height of Product |
Max.55mm |
Max.90mm |
Max.130 |
Film Rolling Diameter |
Max.320mm |
||
Packaging Speed |
30-120 bags/min |
20-80 bags/min |
|
External Dimension |
L3770*W810*H1450mm |
L3980*W860*H1580mm |
L3980*W970*H1580mm |
Net Weight |
800kg |
960kg |
1160kg |
Feature:
1.Double transducer control, flexible bag length cutting, operator needn’t to adjust the unloading working, saving time and saving films.
2.Human-machine operation, convenient and quick parameter setting.
3.Self diagnosis failure function, clear failure display.
4.High sensitivity optical electric color mark tracking, digital input cut position which makes the sealing and cutting more accurate.
5.Separate PID control to temperature, suitable for various packing materials.
6.Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7.Simple driving system, reliable working, convenient maintenance.
8.All the controls are achieved by software, convenient for function adjusting and upgrading.
After-sale service:
1) One year quality guarantee, tools and spare parts will be shipped with machine together.
2) Offer spare parts at low cost.
3) Online technic service and offer solution within 24 hours in case of problem comes.
4) Staff training if you come to our factory.
Pictures:
There is more information in our databases, welcome to inquiry us anytime, we will reply you within 24 hours.
Kindly send us inquiry, note products with size(length, width and height), then we will choose suitable machine for you.
Skype: allenni1989
Mobile: +86-13819112630
