Specifications
Geogrid Machinery, geocell Equipment Shanghai, Hong Jin is a professional manufacture of geotechnical materials, ultrShanghai hongjin ultrasonic electronic equipment factory is enterprise specialized in the research and development ,production geocell machinery and geogrid machinery.we have sold many machine to Russia and domestic
foreign trade corporation to sell all of the world
Shanghai hongjin ultrasonic electronic equipment factory is manufacture geogrid production line equipment is determined by more than one combination of ultrasonic plastic welding machine adopts imported PLC control has the following advanced features:
(1) geogrid machine touch-screen display and parameter setting, imported piezoelectric ceramic transducer, the output strength and stability.
(2) geogrid machine color display touch-screen control panel.
(3) geogrid machine all-Chinese menu, with multi-language you set, easy to use.
(4) geogrid machine levels of adjustable mold design, mold fast and easy adjustment.
( 5) geogrid machine the new power amplifier circuit, power is more robust, more durable transducers,
(6,) geogrid machine frequency automatic tracking, a variety of parameter settings. High degree of automation in the domestic production of similar products in the leading position.
Earthwork geogrid Production Line Model Specification Table
Geogrid welding head station |
HJM-12-3 |
HJM-16-4 |
HJM-24-6 |
HJM-32-8 |
|||
Welding digits |
12 unit |
16 unit |
24 unit |
32 unit |
|||
Maximum output power |
31.2KW |
41.6.4KW |
62.4KW |
83.2KW |
|||
Ultrasonic output power |
15.6KW |
20.8KW |
31.2KW |
41.6KW |
|||
Equipment Dimensions |
4.5*1.76*2.46 |
5.5*1.76*2.46 |
7.5*1.1.76*2.46 |
9.5*1.76*2.46 |
|||
Weight |
3.5TONS |
4.8TONGS |
5.7TONS |
7.5TONS |
|||
Rated input voltage |
AC380V N 50-60HZ |
||||||
Rated input pressure |
0.8~0.10MPa |
||||||
Air pressure vessel |
≥2.5~3.0/min |
||||||
Air Flow |
1.5~2.0M3 |
2.5~3.0M3 |
|||||
Transverse weld pitch |
50mm-80mm-125mm-150mm-200mm--3000 |
||||||
Longitudinal distance between welding points, |
50mm-150mm |
||||||
Geogrid width of the welding machine |
3m |
4m |
6m |
8m |
|||
24 hours a day production |
3500SQM |
4500 SQM |
6500SQM |
8500SQM |
|||

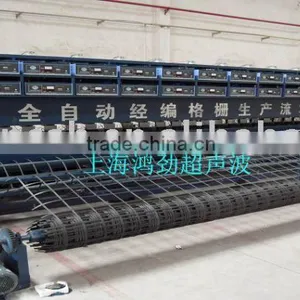

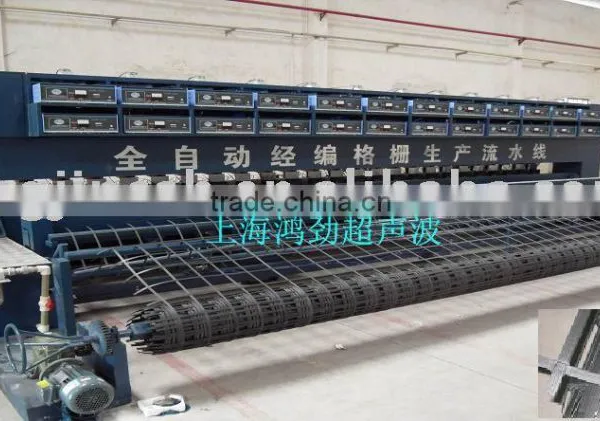

Machine pictures:
Products samples :
Model one Model two Model three Model four Model five Model six
Kindly remind:
Model one:Fibreglass geogrid
Model two:PET geogrid
Model three:steel-plastic geogrid
Model four:PP geogrid
Model five:PVC -steel plastic geogrid
Model six :satety net
products use for:
(1)Road surface reinforcement of road,railway and airport road;
(2)Maintenance,reconstruction and widening of old road surface(asphaltum road or cement concrete road).
(3)Reinforcement of soft soil roadbed,irrigation channels and water dams.
