Prestressing force anchorage
YJM Tensioning System is a complated, independent building measure researched, and developed by TianJin ZhenHua Prestressing Force Technology Co. Ltd. It has been widely adopted by modern construction,especially used in pre-tension or post-tension for concrete constructions and building materials.
YM Series products are composed of tensioning anchor,holding anchor,connectors.It can used to lock the steel strand wires on/under classes of 2000Mpa standard strength,which is usually in diameters of 12.7mm /12.9mm/15.2mm/15.7mm.
It has been verified by pratice that various type of YM anchor also can be used for the different kinds of strand wires produced according to ASTM/BS/JIS/JIG/AS and other international standards respectively only if its technical parameters shall mary the related detail materials.

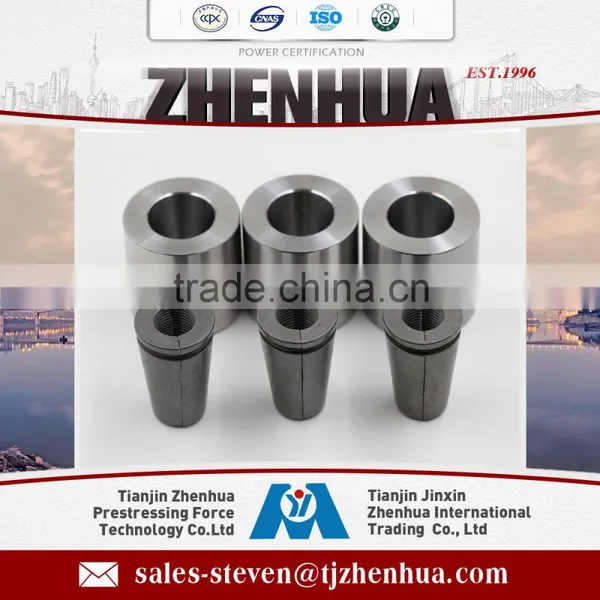

YJM Anchor consists of anchor head, bearing plate, anchor wedge, spiral reinforcement , plastic or metal corrugated ducts, PC strands(PC wire bundle).The products can be divided into two types according to their strand diameters: YJM13 andYJM15.
YJM anchorage system has the following features:
YJM anchorage( anchor block ) system can be used to anchor Φ12.7mm-15.7mm and strength below 2000Mpa PC strands.
YJM anchorageis complete in varieties and specifications.Wedge anchorage can be chosen arbitrarily from 1-55 wire PC strand (PC wire bundle) or according to the specific demands of the engineering designs. It is an anchorage system featured by its wide range of the application, easy of the design and simplicity of the process.
Prestressed Force Anchorage
YJM Tensioning System is a complated, independent building measure researched, and developed by TianJin ZhenHua Prestressing Force Technology Co. Ltd. It has been widely adopted by modern construction,especially used in pre-tension or post-tension for concrete constructions and building materials.
YM Series products are composed of tensioning anchor,holding anchor,connectors.It can used to lock the steel strand wires on/under classes of 2000Mpa standard strength,which is usually in diameters of 12.7mm /12.9mm/15.2mm/15.7mm.
Parameter of YJM15 Anchorage
|
SPC |
STRAND NO |
ANCHOR BOLSTER A×B×φC |
CORRUGATED PIPE INNER DIAMETER φD |
ANCHORAGE φE×F |
SPIRAL BAR |
ANCHOR BOLSTER |
Stressing Jack |
|||
| φG×φH×1 | CIRCLE |
INSTALL HOLE |
INSTALL HOLE |
|||||||
| YJM15-1 YJM13-1 |
1 | φ46×45 φ43×45 |
DC250Q YDC250Q |
|||||||
| YJM15-2 YJM13-2 |
2 | φ83×45 φ73×45 |
YCW100B YCW100B |
|||||||
| YJM15-3 YJM13-3 |
3 | φ135×85×66 φ130×80×63 |
φ50 φ50 |
φ87×45 φ78×45 |
φ130×φ10×50 φ130×φ10×50 |
4 4 |
φ112.5 φ110 |
M10 | YCW100B YCW100B |
|
| YJM15-4 YJM13-4 |
4 | φ136×100×66 φ136×95×68 |
φ55 φ50 |
φ93×50 φ87×48 |
φ140×φ10×50 φ136×φ10×50 |
4 4 |
φ115 φ115 |
M10 | YCW100B YCW100B |
|
| YJM15-5 YJM13-5 |
5 | φ146×120×71 φ146×120×73 |
φ55 φ50 |
φ103×50 φ97×48 |
φ152×φ10×50 φ146×φ10×50 |
4 4 |
φ126 φ126 |
M10 | YCW150B YCW100B |
|
| YJM15-6 YJM13-6 |
6 | φ164×135×80 φ155×120×77.5 |
φ70 φ60 |
φ117×50 φ107×48 |
φ170×φ12×50 φ155×φ12×50 |
4 4 |
φ140 φ135 |
M10 | YCW150B YCW100B |
|
| YJM15-7 YJM13-7 |
7 | φ164×135×80 φ155×120×77.5 |
φ70 φ60 |
φ117×50 φ107×50 |
φ170×φ12×50 φ155×φ12×50 |
4 4 |
φ140 φ135 |
M10 | YCW250B YCW150B |
|
| YJM15-8 YJM13-8 |
8 | φ176×150×85 φ167×140×81 |
φ80 φ70 |
φ127×52 φ117×50 |
φ180×φ14×50 φ167×φ12×50 |
5 4 |
φ153 φ146 |
M10 | YCW250B YCW150B |
|
| YJM15-9 YJM13-9 |
9 | φ185×150×90 φ175×150×88 |
φ80 φ70 |
φ137×52 φ127×50 |
φ180×φ14×50 φ175×φ12×50 |
5 4 |
φ162 φ154 |
M10 | YCW250B YCW150B |
|
| YJM15-10 YJM13-10 |
10 | φ210×160×97.5 φ190×175×93 |
φ90 φ80 |
φ147×52 φ137×53 |
φ190×φ14×50 φ190×φ12×50 |
5 4 |
φ188 φ166 |
M10 | YCW250B YCW150B |
|
| YJM15-11 YJM13-11 |
11 | φ210×187×99.5 φ196×185×96 |
φ90 φ80 |
φ157×54 φ147×53 |
φ190×φ14×50 φ196×φ14×50 |
5 4 |
φ180 φ166 |
M10 | YCW350B YCW150B |
|
| YJM15-12 YJM13-12 |
12 | φ210×187×99.5 φ196×185×96 |
φ90 φ80 |
φ157×54 φ147×55 |
φ190×φ14×50 φ196×φ12×50 |
5 5 |
φ185 φ176 |
M10 | YCW350B YCW250B |
|
| YJM15-13 YJM13-13 |
13 | φ220×216×105 φ196×205×96 |
φ90 φ80 |
φ157×62 φ147×55 |
φ190×φ14×50 φ196×φ14×50 |
5 5 |
φ190 φ176 |
M10 | YCW350B YCW250B |
|
| YJM15-14 YJM13-14 |
14 | φ234×252×110 φ206×230×103 |
φ90 φ90 |
φ167×62 φ157×57 |
φ240×φ14×50 φ206×φ14×50 |
6 5 |
φ200 φ186 |
M10 | YCW350B YCW250B |
|
| YJM15-15 YJM13-15 |
15 | φ234×252×110 φ216×230×108 |
φ90 φ90 |
φ167×65 φ167×60 |
φ240×φ16×60 φ216×φ14×50 |
6 5 |
φ200 φ196 |
M10 | YCW400B YCW250B |
|
| YJM15-16 YJM13-16 |
16 | φ244×286×115 φ220×270×108 |
φ90 φ90 |
φ177×65 φ167×62 |
φ240×φ16×60 φ220×φ16×60 |
6 5 |
φ210 φ196 |
M10 | YCW400B YCW250B |
|
| YJM15-17 YJM13-17 |
17 | φ258×320×116 φ230×300×111 |
φ90 φ90 |
φ187×70 φ177×62 |
φ240×φ16×60 φ230×φ16×60 |
6 5 |
φ218 φ206 |
M10 | YCW500B YCW250B |
|
| YJM15-18 YJM13-18 |
18 | φ234×252×110 φ216×230×108 |
φ100 φ90 |
φ187×70 φ177×65 |
φ240×φ16×60 φ230×φ16×60 |
6 5 |
φ228 φ206 |
M10 | YCW500B YCW350B |
|
| YJM15-19 YJM13-19 |
19 | φ234×252×110 φ216×230×108 |
φ100 φ90 |
φ187×73 φ177×65 |
φ240×φ16×60 φ230×φ16×60 |
6 5 |
φ228 φ206 |
M12 | YCW500B YCW350B |
|
