Help CenterPrestressed and Post Tensioning Clips China Famous Brand
Related Products
-
Prestressed Anchorage China Famous BrandUS$ 25 - 100MOQ: 100 Sets -
Anchor Plate New ProductUS$ 0.1 - 10MOQ: 100 Sets
-
Post Tension Anchorage Head Wedges PromotionUS$ 0.1 - 10MOQ: 100 Sets
-
Post Tension Anchorage Head Wedges Hot SaleUS$ 0.1 - 10MOQ: 100 Sets
-
Post Tension Anchorage Head Wedges Concrete AnchorUS$ 0.1 - 10MOQ: 100 Sets

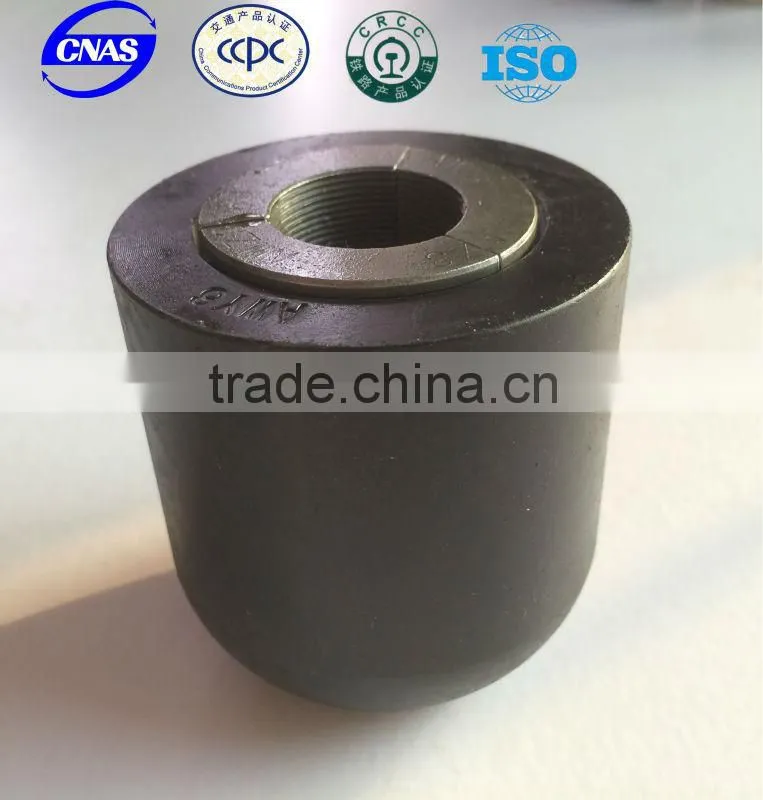

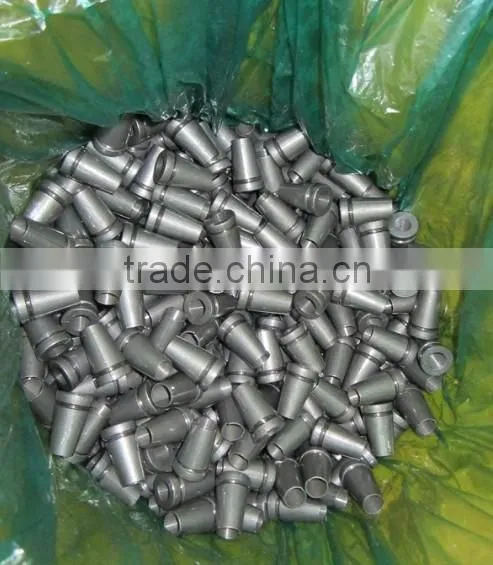

Definition of Wedge

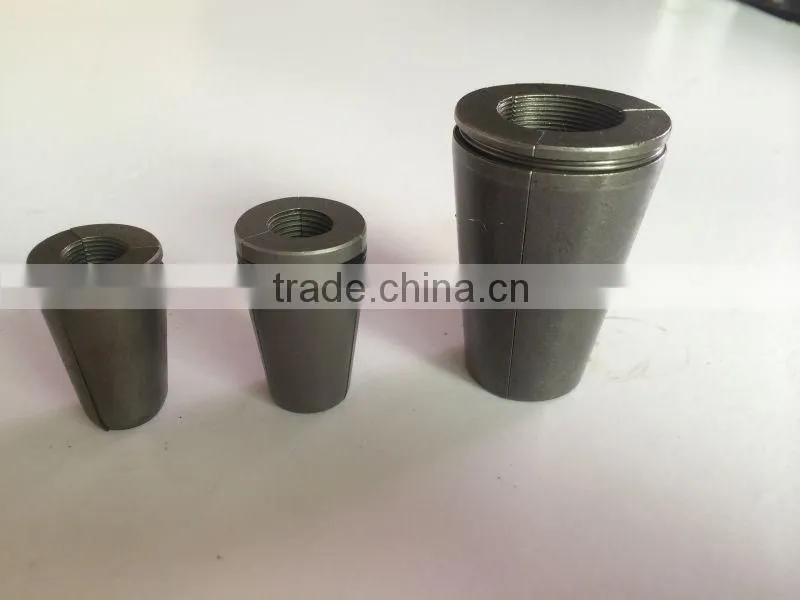

Wedge is the key part of amchorage suetem, which is made by high-class alloy steel 20CrMnTi.Its form is divided into two chip and three chip. It can be used for Ring anchorage ,flat anchorage,but also used for porous coupler.
Application:
YM anchorages can be used to lock 2000Mpa standard strength, which is used on dia of 12.7mm, 12.9mm, 15.2mm, 15.7, 17.8, 18.9, 21.6, 21.8,28, 29,32mm.
If Cutstomer have own design, we can customize according to DWG.
It has been widely adopted by modern construction, especially used in pre-tension or post-tension for concrete constructions as building materials.
INSTRUCTIONS:
1 YM anchorage must be used with YM working wedge, and YM tool anchorage must be used with YM tool wedge.
2 Work anchorage can't substitute for tool anchorage.
3 YM series anchorage must be used with the same specification located plates of YM.
4 Anchorage must be well keeped to prevent rusting and dirts. Before installation, rusting and dirts must be cleand to prevent from damaging the internal thread of wedge which will fill in the alveolar of wedge when tension.
5 When install anchorage, O Dia of Anchor Head should put in hole of Anchor Bearing Plate, and the restraing plate must in the same direction with the hole of tool anchorage, and the strands cannot be twined around each other and dislocated.
