Self-adhesive High Polymer Bitumen Waterproofing Membrane

Name: Self-adhesive High Polymer Bitumen Waterproofing Membrane
Brand: Dayu
SKU: 131924231

US$ 2.35 - 5.96 MOQ: 1000 Square Meters

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Dayu

Model Number:

DY-BAC

Guangzhou Dayu Waterproof Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Huangpu port Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Dayu

Model Number DY-BAC

Self-adhesive High Polymer Bitumen Waterproofing Membrane

Type		DYC self-adhesive bitumen waterproof membrane
Brand		Guangzhou Dayu
Place of origin		Guangzhou,China
Executive Standard		GB/T23457-2009
Reinforcement	Under Material	Surface Material	Application	Thickness	Width*Length
Polyerster, Fiberglass	Polyethylene film(PE) polyethylene terephthalate (PET) Aluminum foil	Polyethylene film(PE) polyethylene terephthalate (PET)	Wet or Dry application	3.0mm 4.0mm	1m10m 1m8m
Non (with PET and PE film as reinforcement)			Wet or Dry application	1.2mm 1.5mm 2.0mm	1m20m 1m15m

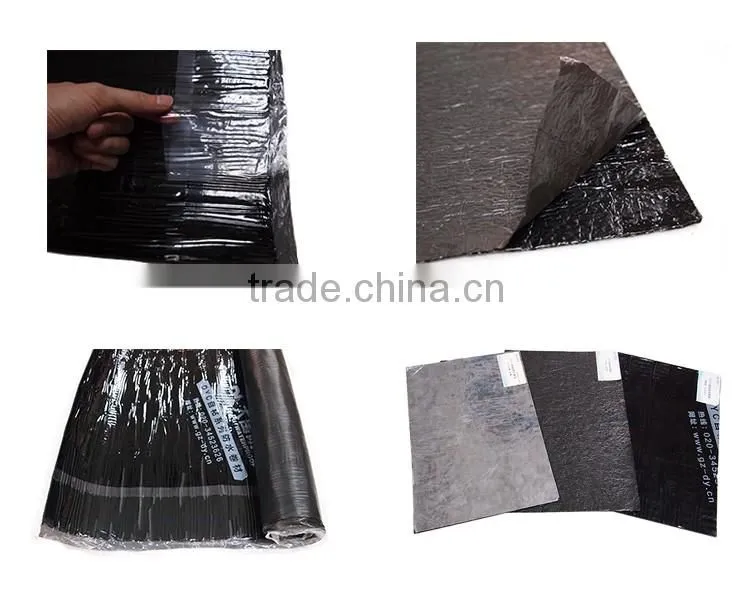

Product Pictures

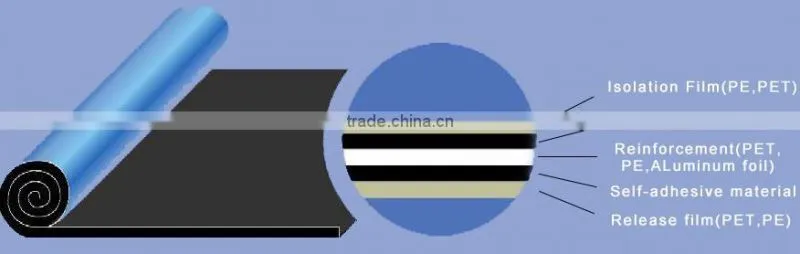

Product structure

Technical Specification

Item: DYC self-adhesive bitumen waterproof membrane
Ref to Chinese Standard GB23441-2009
Reinforcement				Polyester(PY)
No.	Test Item		Test Standards	Test Results	Vertification
1	Impermeability	Mpa	≥0.3	No leakage	Pass
		holding time (min)	≥120
2	Tension N/50mm	2.0mm	350	358	Pass
		3.0mm	450	480	Pass
		4.0mm	450	498	Pass
3	Enlongation at break, %		≥30	39	Pass
4	Heat resistance		70°C,no glide no flow, no drop	no glide no flow, no drop	Pass
5	Cold flexible		. -20°C,No cracking	No cracking	Pass

Main Features

Ultra-strong adhesion property can stick to the substrates tightly which beyond your image.

Saving construction materials but achieve a perfect waterproofing effect. High standards waterproofing projects adopt multilayer application, so that reveal its excellent waterproofing feature.

Safe and environment-friendly. Wet-application with cement-based materials, no need to prime coat and hot melting, no volatile solvent, no hidden fire hazards and no harm to human bodies.

Covered and protected by cement-based adhesive materials, possessing rigid waterproofing function so that creates one waterproofing layer but diploid prevention.

Easy to find out and repair the breakage spots, low maintain cost, and no phenomenon of fluid-channeling, all above promote its water self-locking property.

Application Scopes

1. All kinds of civil buildings, basement and roof.

2. Railway, highway, subway and tunnel project.

3. Garbage field, artificial lake, reservoir dam, various pipeways and other municipal constructions.
