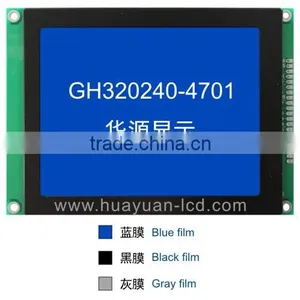

Help Center4.7 INCHS COB LCD MODULE 320*240 DOT CHARACTER GRAPHIC MONOCHROME LAPTOP LCD SCREEN
Related Products
-
2 INCHS COB LCD MODULE 122X32 DOT CHARACTER GRAPHIC MONOCHROME LAPTOP LCD SCREENUS$ 1 - 10MOQ: 1000 Pieces -
2.2 Inchs16X2 LCD MODULE ST7066U Controller Lcd Module 3.3V LCD MODULEUS$ 1 - 10MOQ: 100 Pieces
-
16X2 Monochrome Lcd Display ST7066U Controller Lcd Module 3.3V LCD MODULEUS$ 1 - 10MOQ: 100 Pieces
-
Digital Photo Frame, Digital Photo Frame Lcd Display ModuleUS$ 1 - 8MOQ: 100 Pieces
-
Lcd Display 2x16, 2.2 Inch Lcd Display 2x16US$ 1 - 8MOQ: 100 Pieces
The Module Datesheet

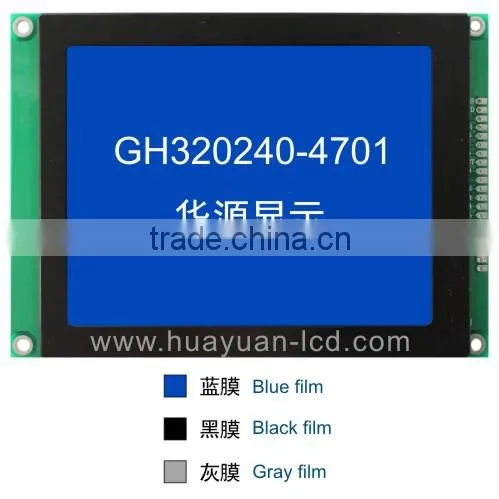

| Model: | GH320240-4701 |
| Construction | TAB |
| Display Type | STN,Negative,Transmissive |
| Operating Voltage (VDD) | 3.3V,5V |
| Backlight Voltage(VBL) | 3.3V,5V |
| Operating Temperature (degree Celsius) | -20°C~70°C |
| Storage Temperature (degree Celsius) | -30°C~80°C |
| Viewing Direction | 6:00 |
| Dot Matrix | 320*240 |
| Viewing Area | 103.00*79.00 |
| Active Area | 95.98*71.96 |
| Outline Dimension | 139.00*100.00*8.50 |
| Controller | NT7701 or equivalent controller |
| Backlight | LED,White |
The Layout Drawing
How to running the orders with old customers?
Step1.Send your original drawing paper or samples or photos, If you have not these information, tell us your idea.
Step2.According to your details, we give you some advise and good price.
Step3.Negotiate the technical dates after that we will send you the exact quotation
Step4.You arrange the tooling charge payment.
Step5.We make design paper and waiting for your confirmation in two days.
Step6.We make new samples for your testing with in two weeks
Step7.After samples confirmed, we are running the production.
Step8.You arrange the last payment, we sending goods to the ports.
We hope to build a long-term business relationship with you .believe we are you best supplier!
If you have any questions or queries, please do not hesitate to contact us. Welcomed to visit any of my other items. We are glad to help you!
Tom zhang
