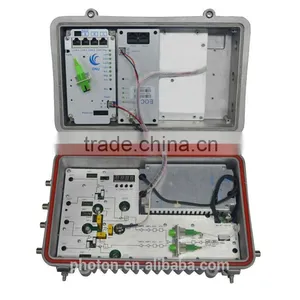

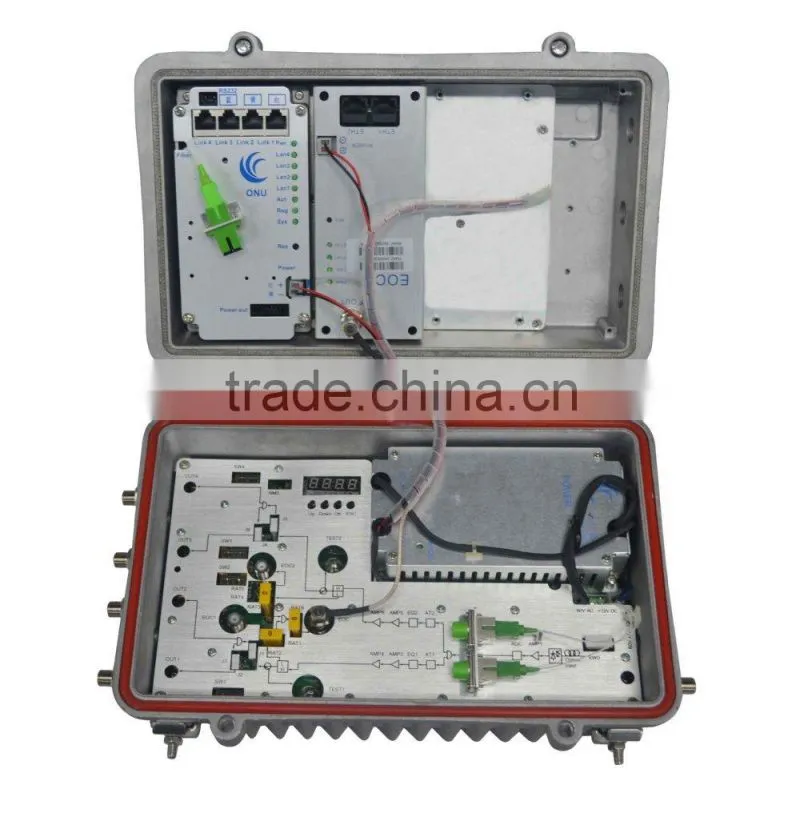

3 in 1 FTTB Multi- EOC &ONU& Node Workstation





Description

PHOTON PTC2000-M2704 is a cost effective integrated design of ONU, Optical Node and EOC master in one outdoor case, every single set performs operates like single ONU, Single Node and single EOC master.This modularized design largely saves the cost for transport freight, the space of the frame rack, the power consumption.In general, it greatly optimizes the functionality and structure of the normal standard-alone ONU, standard –alone EOC and Optical Node,providing users more convenient operating and maintenance experience.







Features

  1. One Node,one EOC and one ONU module in one case
  2. Node bandwidth is 65/87~1000Mhz,AGC arrange is -8 +2 dBm
  3. ATT and EQ monitor ,support ATT and EQ adjustment in software management
  4. Adopt GaAs MMIC amplifier chip and low consumption
  5. The GEPON ONU module supports IEEE802.3ah,802.3u,802.3 protocol
  6. The GEPON ONU module supports IEEE802.1q vlan,QoS and multicast protocol
  7. The GEPON ONU supports 10/100/1000Mbps speed
  8. The EOC master module supports HomePlug AV,IEEE802.1q,802.3/802.3u protocol
  9.  The RF bandwidth of EOC master module is between 7.5MHz and 35/65MHz
  10. The EOC master module uses strong anti-interference OFDM modulation technology and FEC technology
  11. supports SNMP  and Web browser network management protocol





Specification





Optical Node

Receive wavelength

nm

1100~1600



Input optical power

dBm

-8~+2



Input Voltage Range

VAC

90-265

220VAC/110VAC

Optical AGC range

A/W

-8~+2

1310nm/1550nm

Noise

pA/Hz

<8



Reflection loss

dB

≥45



Bandwidth

MHz

45~1003

85~1003 with diplexer

Flatness

dB

≤±0.75



Slope

dB

0~1



Output power of RF

dBμV

4out*104or 2 out*108dB

104 dBμV @1003 MHz, 4% OMI, input optical power -1dBm

Detection power of RF

dB

-20±1.5



Reflection loss of RF

dB

≥16



Impedance

Ω

75



Equalizer range

dB

0~10



Attenuation range

dB

0~20



CNR

dB

≥51

59 PAL CW carrier, 1310nm transmitter,  4.0% OMI, 10km optical fiber plus attenuator, -1 dBm optical input power, 88 dBuV output level at 870MHz

CSO

dBc

≥60

CTB

dBc

≥65

Anti-lighting or surge

V/A

6000/3000

surge(1.2/50us),

IEEE62.41 and IEC 61000-4-5

Reflection loss of optical

dB

≥40



 ONU Module

Receive wavelength

nm

1490±20



Input optical power

dBm

-3~-24



Output optical power

dBm

-1~-4



Sensitivity

dBm

≤-24



Transmitting Speed

Mbps

10/100 /1000 auto-negotiation



Transmitting distance

km

20 max



Transmitting wavelength

nm

1310±20



Optical interface type



SC



UNI port



RJ45,4*Gigabit port



EOC Master Module

Bandwidth of PHY  model

Mbps

500



Bandwidth of MAC  model

Mbps

350



RF Frequency

MHz

7.5~65



Output Power of RF

dBuv

<120



Sensitivity of RF

dBuv

-60



Transmission distance

m

About 700



Modulation mode



OFDM 4096/1024/256/64/16/8-QAM, QPSK, BPSK,ROBO,DBPSK, DQPSK



Impedance of RF output

Ω

75



Power consumption

w

<8



RF interface type



F connector,1 RF out



Uplink port



RJ45,2*Gigabit port



Generall Parameters

Operating Temperature

°C

-30~60



Operating Voltage

V

90V or 260V AC



Dimension (W x Lx H)

cm

350 x222x150



Weight

kg

7KGS
