Plant of product property
Application fields:
It’s widely used in lime factory assembly line, iron and steel works, desulfurization,
sewage treatment as well as high quality hydrated lime making.
The residual moisture will be controlled within 8%

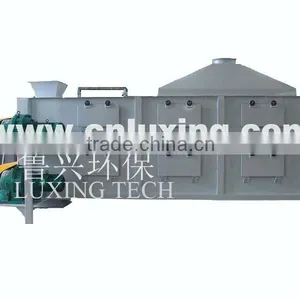

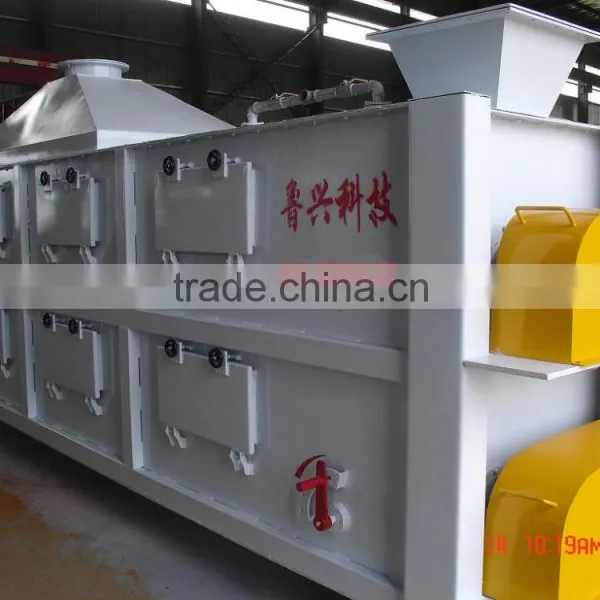

Product feature:
It takes less space and cost compared with the three stage lime hydrator,
especially is suitable for the company which is limited of height.
Technical parameter:
Output: 1-30ton/hour
Conversion rate: > 80%
BET: standard
Residual moisture: < 6%
Dustiness: <10mg/CBM

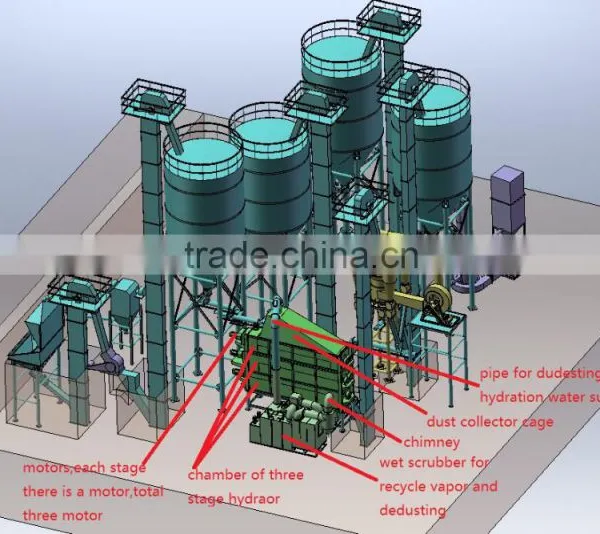

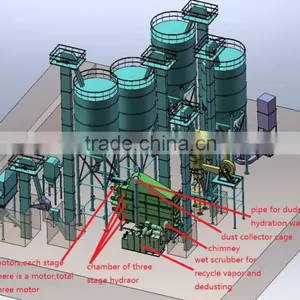

Luxing patent technology of lime hydration line

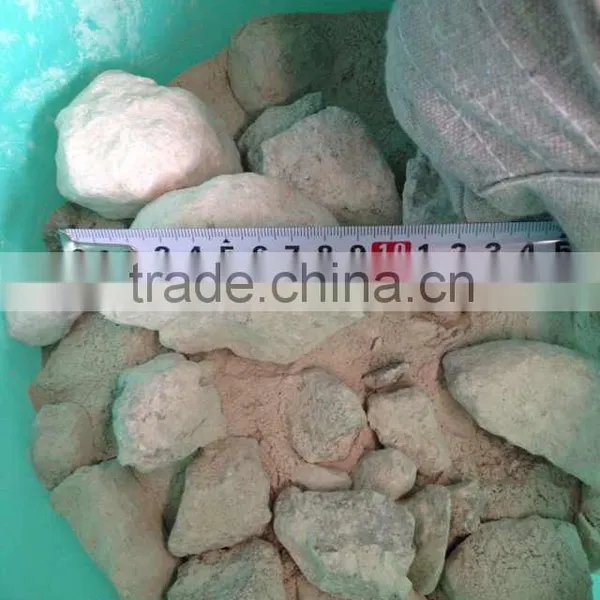

Quick lime (CaO) is transported into Buffer Tank (1) by Belt Conveyor, then the Uniform
Device (3) evenly delivery the raw material (CaO) averagely 1-30 tons per hour into Fine Crusher
(4), crusher can crush massive material into under 10mm.
During the crushing process the generating dust, which is from pipe on the cover of Buffer Tank
and pipe on the cover of the end of Uniform Device, will come into the Pulse Bag Filter (2). (This is
the first stage of environmental treatment to prevent dust escape.)
The fine crushed quick lime fall into the entrance of Bucket Elevator (5), then it is elevated and
transported into Raw Material Silo(6).
On the body of silo, there is installed an Up and Down Material Level Indicator which will send
instructions to PLC Control System when material is overfilled or insufficient. On the top of the silo
there is installed a Top Position Duster (7) of which function is to prevent lime dust escaped when
air in the silo is extruded by feed-in material ( This is second environmental treatment.)
The quick lime falls into Screw Feeder (9) through Electric Gate Valve, where is transported
into Screw Electronic Weighing Machine (10), according to one hour consumption (a series from
one to thirty tons per hour), quick lime is fed into Three-stage Hydrator (11) to be hydrated with
proportional water.
At first the quick lime in the hydrator is pushed into the first stage silo by a length of screw, of
which function is prevent a mass of overheated vapor mixes with lime dust counter flow into Screw
ElectronicWeighing Machine where will impact the accuracy of sensing signal. By many adjusting
means of frequency converter, adjustable weir and so on, we can control the quick lime in the three
stage hydrator to be hydrated for 8-12 minutes for an enough hydration.
Unique design makes massive heat generated in the lime hydration course recycled, which is to
increase the material temperature in lime hydration for enough hydration. On the top of the hydrator,
here we set up a Dust Cage, in which there are three pieces of sprinklers, they can spray three pieces
of water surface to prevent massive of overheated vapor and lime dust generating in the lime
hydration course (this dust is good quality hydrated lime, should be recycled.) escaped. This is to
lessen the dust capacity in next progress.(The third environmental treatment.)
When the lime dust escaped from the water surface comes into Wet Scrubber through pipe.
(also known as Dust Removal Device, which is our patent product, Patent No.
ZL200110133877.8)(22) Massive of lime dust and overheated vapor, which is quick lime generating
in three stage hydrator, comes into water tank through dust cage and pipeline. In the wet scrubber
lime dust is filtered in the water by negative pressure generated by fan. After treating the dust and
vapor, the purified air will finally be exhausted on the air vent. In the process of treating dust and
overheated vapor, the water in the water tank of wet scrubber comes into being hot lime water, which
is injected into water pipe used for water surface by high-pressure pump.
The wet scrubber achieves to recycle the hot dust removal water and its collection coefficient
can reach to more than 99%. Dust removal effect is that the dustiness is less than 30 milligram per
cubic meter on the air vent. (Our state standard: dustiness is 150 mg/m3 )
Finally we can achieve energy saving and effect enhance and solve environmental pollution
problem of dust flying.
The hydrated lime (water content is 1.5%) falls into Screw Feeder (12) and is transported to
Bucket Elevator (15), then it is elevated into Centrifugal Separator: T-sepax efficient two section
separation which use aerodynamics analytical method, adopt two stage separation to divide the
material to coarse particle and fine particle.
In the first graduated area, it pre-separates the coarse particle of the mixed powder into coarse
powder heap, then, the second graduated area is a accurate separation which is completed in the
annular region consist of guide vane and cage rotor.
Thanks to the pre-separation of separating the coarse particle, therefore, classifying precision is
higher, and the powder-selecting efficiency can reach to 92%.
The different grades of separated material powder separately falls into Screw Feeder (18),
comes into Bucket Elevator (19), elevated into Product Silo (20). The hydrated lime is controlled
by Electric Gate Valve to be packed by Bagging Machine in storage.
Company inforamtion
Anhui Luxing Environmental Engineering Technology Co., Ltd. is a high technology enterprise, which specializes in manufacturing complete equipments used for producing hydrated lime(Ca(OH)2).Our company is professional in manufacturing various equipments for various factories and areas: Environmental friendly lime hydration equipment used for sintering dosing room for steelworks, lime producing line for lime plants ,sticky material cleaning device for ironworks, building material manufacturing line for mining area, desulfurization equipment, calcium treating machine in sewage treatment, high quality hydrated lime producing line, wet lime dust collector(patent NO.ZL2007 1 0133877.8). We have the right of import, export and agent, together with the research, design, manufacture and sale of accessory equipments, and our product has gained great population all over the word.
We have 26667 square meters floor space, 2500 square meters office area, 14000 square meters workshop,1500 square meters laboratory. We solve problems on lime hydrating for our client with best quality machines and fast-considerate service. In line with the concept of environment protection and energy saving, we focus on technical innovation, consistently absorbing advanced technology and management skills domestic and abroad, then combine client’s actual demands, improve a lot through practice, to develop better products. Especially, aimed at dust problem producing from hydration, we have developed dedicated dust removal device which has gained national patent of invention. Meanwhile, we can provide lime hydrating process design, technical improvement, personnel training and other services.
If you are also interested in luxing hydration product to support your business,
pls help us do some pre-questionnaire for us to design before contact us:
1. Company Information: |
|
Company Name: |
|
Company website: |
|
Contact Person: |
|
Mobile No.: |
|
E-mail Address: |
|
2. Plant Data
Plant location or Plant site(where to bulid?) |
* |
Plant Elevation OR height above sea level (m) |
* |
Wind power ( meter/second) |
|
Rainfall distribution |
|
Annual Temperature (highest and lowest value in seasons) |
|
New Plant or Expansion of existing? |
|
Capacity of output from hydrator (Tons per hour)? |
|
What PURPOSE is hydrated lime used for? (IN DETAIL) |
* |
Daily working time (hours/day) |
|
Size of workshop? Attach construction drawing |
|
|
3. Raw material Properties (CaO properties) |
|
Source of CaO (self-made or purchase) |
|
Effective Calcium Content in CaO |
* |
PARTICLE SIZE DISTRIBUTION TABLE ofCaO |
* |
ACTIVITY DEGREE (T60s OR Value) |
* |
|
4. Product Requirements (Ca(OH)2 Properties) |
|
Fineness Requirement or size requirement AND purity requirement for hydrated lime product |
l μm or mesh |
Moisture content |
* |
Special Product Requirements (If stated) |
|
|
Environmental Data: |
|
Allowable Particulate Emissions |
|
List Other Emission Requirements. |
|
5.
|
Utility Data: |
|
|
Frequency (Hertz) |
* |
|
Voltage |
what is industrial voltage value |
*: |
what is illumination voltage value |
*: |
|
Is Compressed Air Available on site? |
|
|
Source of water (quality of water) |
|
|
6.
Scope of Supply: |
By Supplier |
By Purchaser |
silo (not recommended for seller scope) |
|
|
Hydration with dedusting and Weighing feeding system |
|
--- |
Separation system |
|
|
Packing system |
|
|
PLC Control System |
|
|
Thank you for your understanding, What we supply not only the know-how, the engineering package and the supervision services but also the key components and its accessory, to assure the achievement of the plant performances as indicated in us.
Wait for your inquiry!!
