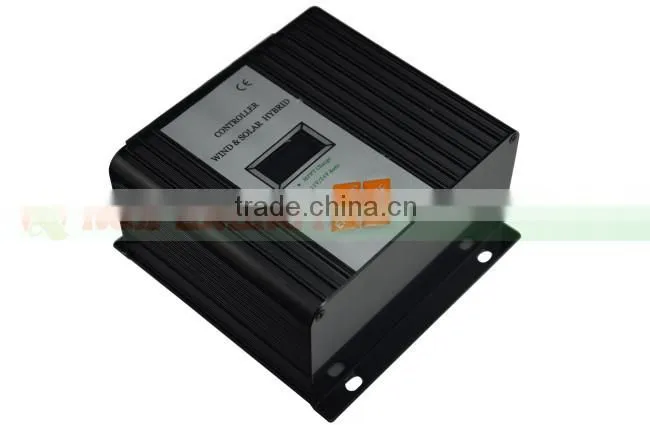

Help Center600w Mppt Charge Controller for Solar and Wind Power System. CE,ROHS,ISO9001 Certification.
Related Products
-
Price Solar Charge Controller/Wind Charge Controller 1000w Rated, 1500w Max.US$ 200 - 250MOQ: 1 Piece -
PWM Solar Charge Controller 1kw. Used for Solar and Wind System. 24V/48V Input.US$ 200 - 250MOQ: 1 Piece
-
Wind Solar Hybrid Charge Controller 600W, for 600w Wind Turbine and 300w Solar Panel.US$ 65 - 85MOQ: 1 Piece
-
Wind Generator Battery Charge Controller 600W. 12V/24V.US$ 55 - 85MOQ: 1 Piece
-
1kw Charge Controller 48 Volt. Used for Wind Turbine Generator.US$ 140 - 180MOQ: 1 Piece
Specifications
mppt charge controller1. Wind turbine 600w max
2. Solar pane 12V/150W, 24V/300W
3. LCD display
600w mppt charge controller for solar and wind power system. CE,ROHS,ISO9001 certification.
Sample Purchase online:Click here
Introduction
The advanced wind/solar hybrid controller is specially designed for high-end small-scale
wind/solar hybrid system and especially suitable for wind/solar hybrid street light system
and wind/solar hybrid monitoring system.
Technical Data
Wind generator control set-up definition:
Rated Wind Turbine Power |
100w |
Wind Turbine brake voltage (12v/24v) |
15VAC / 25VAC |
Wind Turbine brake current (12v/24v) |
10A / 20A |
Solar panel set-up definition
PV max power (12V/24V) |
150W / 300W |
PV max open circuit voltage (12v/24v) |
24.0V / 48.0V |
PV max charge current |
12.5A |
Battery management definition
Over-discharge Voltage (2V/24V) |
10.5V / 20.0V |
adjustable |
Over-discharge Recovery Voltage (12V/24V) |
12.0V / 24.0V |
adjustable |
Over-charge Voltage(12V/24V) |
15.0V / 30.0V |
adjustable |
Over-charge Recovery Voltage(12V/24V) |
13.5V / 27.0V |
adjustable |
Output Set-up function
Each Line Output Current rating |
5A |
adjustable |
Each Line Output rated Power (12V/24V) |
60W / 120W |
adjustable |
Dusk and dawn threshold voltage ( VsTH) |
default : 6.0V |
adjustable |
Product Conventional parameter
Display |
LCD with backlight |
Self-consumption |
≤30mA (backlight turn-off) |
Temperature-compensation coefficient |
-35mV/°C (25°C ref.) |
Ambient temp. range |
-30°C to +55°C |
Store temp. range |
-35°C to +80°C |
Humidity range |
10% - 90% (NC) |
Altitude work |
≤5000 meters above sea level |
Protection class |
IP55 |
Data-communication |
RS232 / RS485/USB be optional |

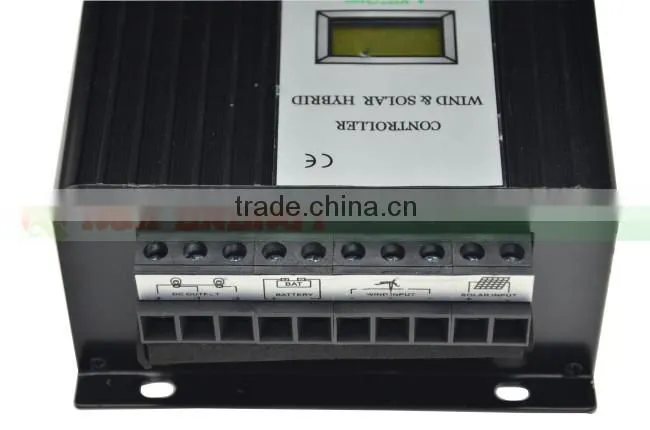

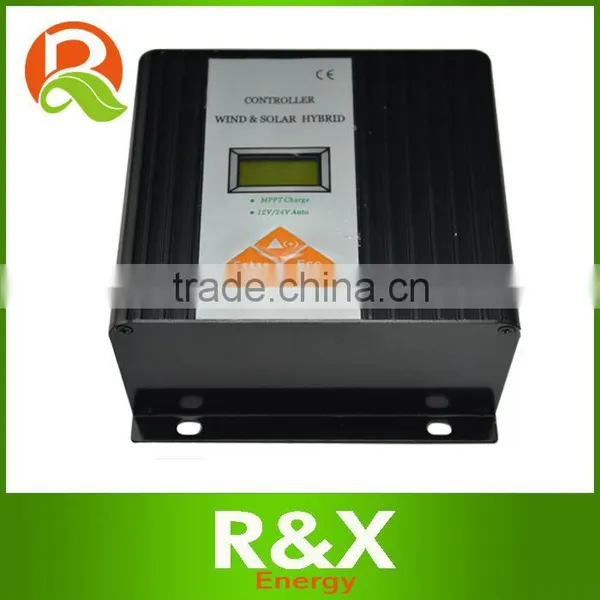

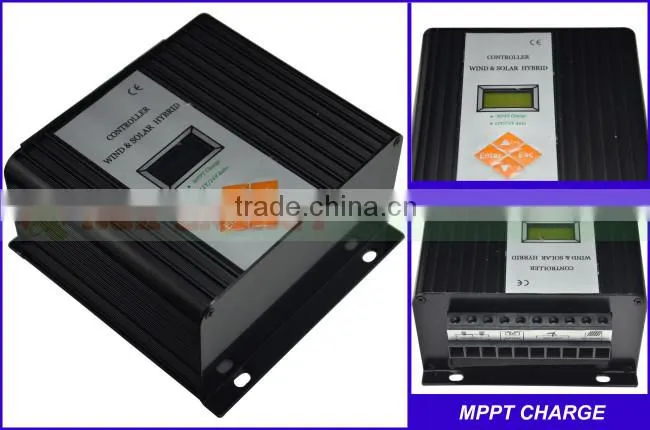

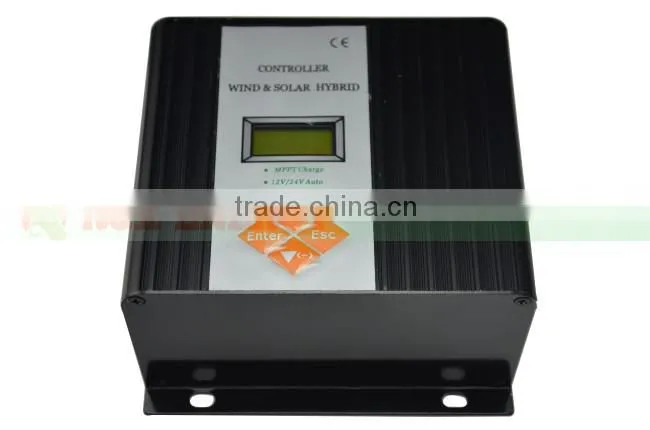

Picture of controller
Features
1. MPPT technology to optimize using the wind energy. (Optional)
2.Boost circuit designed. User can set this voltage parameter. (Optional)
3. 12V/24V System automatic recognition function. (Optional)
4. Be able to use for 200W-600W wind turbine with high compatibility.
5. Digital design, module structure, stable and reliable.
6. Dual-line output, light sensor and timer functions, morning lighting, constantly output 24hours.
7. User can adjust setting of system parameters as voltage protection point,
boost voltage, light sensor voltage, timer. and so on.
Protection Function
1. Solar cells reverse charging, solar cells anti-reverse connection.
2. Battery over-charging, over-discharge, battery anti-reverse connection.
3. Over-load, load anti-reverse connection and load short circuit protection
4. Wind turbine current and voltage limited, rotation limited and brake.

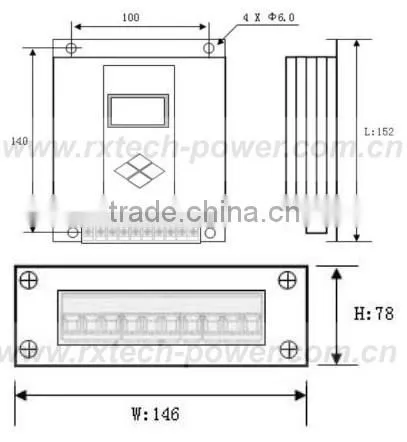

Dimension of controller

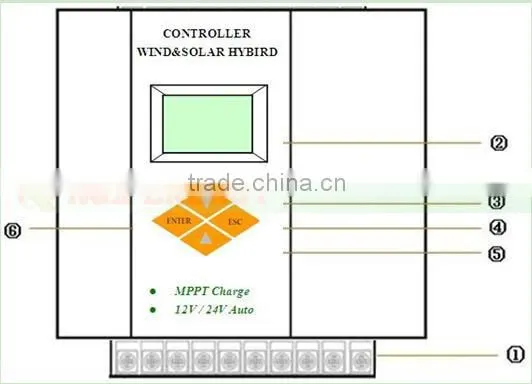

Instruction for panel of controller
1. Wiring connection with system terminals
2. LCD with green backlight
3. (+) setting key to increase value of parameters.
4. “Esc” key for existing system without save setting.
5. (-) setting key to reduce value of parameters.
6. “Enter” key to process setting condition or save modification of parameters.

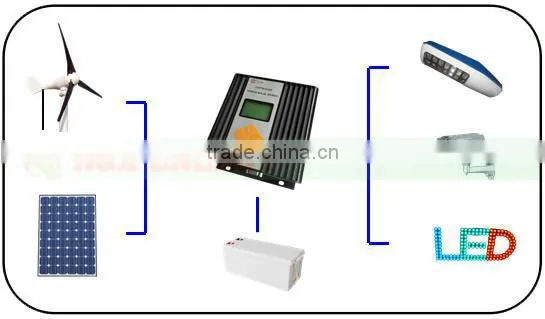

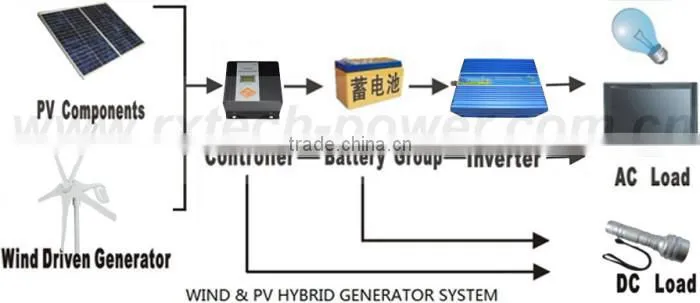

Application
