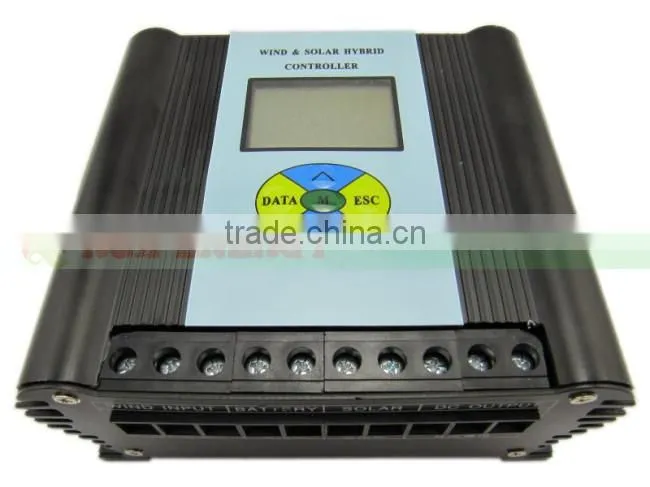

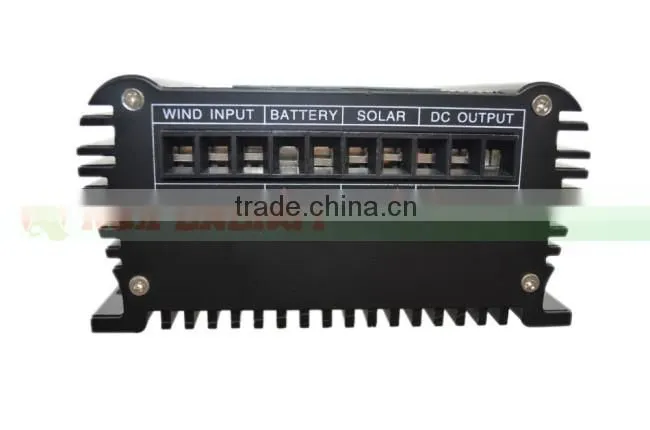

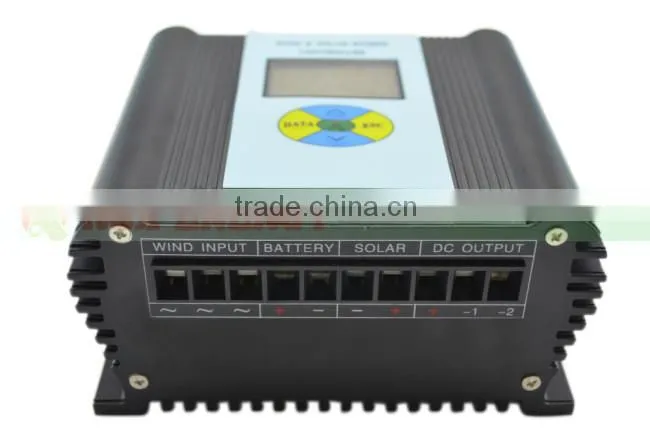

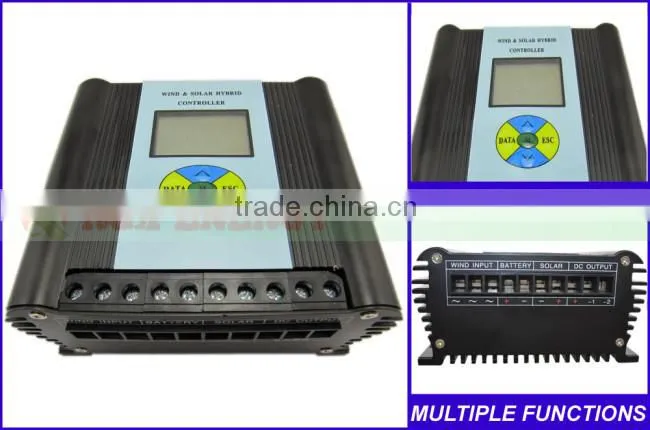

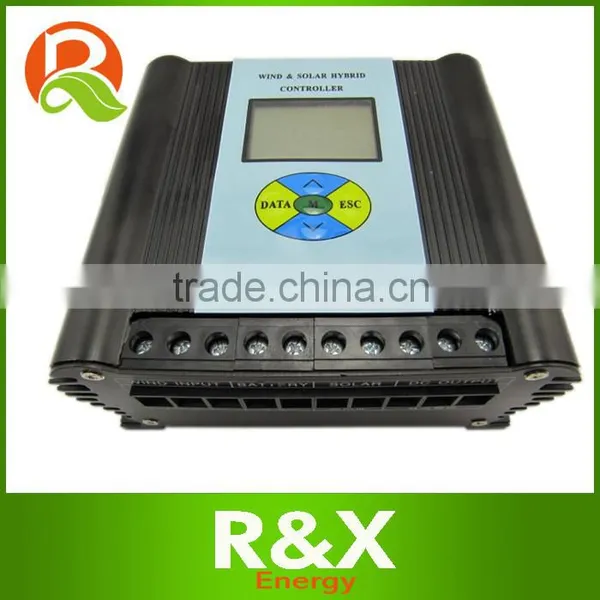

600w Wind/solar Hybrid Controller 12v/24v Charge Controller With LCD Display. Used for Wind and Solar Power System.

US$ 60 - 85 MOQ: 1 Piece

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

R&X

Model Number:

RX-600LCD

Nantong R&X Energy Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN/SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name R&X

Model Number RX-600LCD

Application Other, Wind/solar hybrid charge controller

Rated Voltage Other, 12V/24V

Maximum Current 30 A

600w wind/solar hybrid controller 12v/24v charge controller with LCD display. Used for wind and solar power system.

Sample Purchase online:Click here

Features

1. Exclusive use of three-phase soft brake technology within the industry, protect wind turbine

more perfectly.

2. Menu-driven operation,no manual,can directly manipulate,simple and easy to understand.

3. Over-speed protection of the wind turbine,the turbine can effectively self-protection in windy

conditions,to extend the life of the entire system.

4.Temperature display,real-time monitoring controller operating environment.

5. Integration of multiple voltage,current,power meter,real-time monitoring of various parts

of the electrical parameters.

6. Warranty 2 years,better service for end customers and integrators.

7. The majority parameters of the system can be setted by user,designed with flexibility

better adapt to different systems.

Technical Data

Model	RX-600LCD
Rated Voltage	12V	24V
Battery maximum current	30A	30A
Rated Power of Solar panels	150W	300W
Voltage of Power on	1V(adjust able)	2V(adjust able)
Voltage of Power off	2V(adjust able)	4V(adjust able)
Rated Power of Wind Power	400W	600W
Maximum Speed of Wind turbines	100~2000r /min(adjust able)
Series of Wind turbines	6~35(adjust able)
Time of brake renewing of Wind turbines	10min~60min (adjust able)
Float charging voltage	14V (adjust able)
Charge return voltage	12.5V (adjust able)
Over-discharge protection voltage	10V (adjust able)
Over-discharge recovery voltage	11V (adjust able)
Compensation factor of Charging temperature (optional)	2mV/°C/2V(adjust able) -20~65°C
Maximum current	10A (could be designed)
Load Output (two independent outputs)	Normally closed , normally open,light-control, time-control, light&time-control
Load output Current	10A
Load output period	1~15hour(adjust able)
Ambient temperature	-20~+55° C
Storage temperature	-30~+65° C
Operating humidity range	35~85%RH(no condensation)
Elevation Altitude	≤5500 M
Case size	127mm150mm75mm
Weight	2.5kg
Case material	Milky/Black paint
Protection function	Solar reverse charge&connection protection, Battery over charge,over discharge , reverse connection protection, Lightning protection , Wind turbine over speed ,current limiting, automatic brake and manual brake
In order to serve our customers better. Our company can adjust parameters configuration according to customer's requirement.
