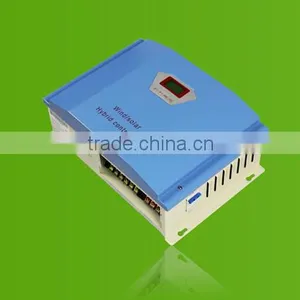

5kw wind solar hybrid controller with LCD display, 48V/120V/220V battery charge controller for 5kw wind turbine and 1.5kw solar
General Description
The wind/solar hybrid controller is an intelligent control device which can control wind turbine
and solar panel at the same time, specially designed for high-end wind/solar hybrid system and
also suitable for wind/solar hybrid power system and wind/solar hybrid monitoring system.
It is used to control the wind generator and solar panel to charge the batteries safely and
efficiently.
With decent appearance, easy operation, visual LCD display and perfect protection functions,
the apparatus has high charge efficiency, low no-load loss.
The wind/solar hybrid controller is the core component of the off-grid power generation system.
The performance of the controller will impact the life and the stability of the whole system,
especially the lifespan of battery banks.
Technical Data
Product Model |
WM-5000HCB |
Rated Battery Voltage |
48V |
Rated Wind Turbine Input Power |
5kW |
Maximum Wind Turbine Input Power |
7.5kW |
Wind Turbine Brake Current |
105A |
Rated Solar Input Power |
1.5kW |
Floating Charging Voltage |
58V |
Display Mode |
LCD |
Quiescent Current |
≤20mA |
Ambient Temperature & Humidity |
-20~+55℃/35~85%RH(Without Condensation) |
Temperature Compensation Function (Optional) |
-4mV/℃/2V ,–35℃--+80℃ , Precision:±1℃ |
Dimension(L×W×H) |
Controller Box: 440×300×170mm ; Dumpload Box: 770×390×180mm |
Net Weight |
Controller Box: 7.5kg ; Dumpload Box: 17kg |
|
In order to serve our customers better. Our company can adjust parameters configuration according to customer’s requirement. | |

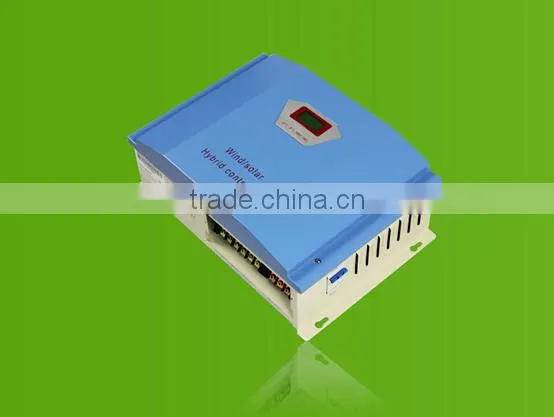

Picture Of Controller
Description
1. Reliability:Intelligent zed, modularized design, simple mechanism, powerful functions.
With industrial range superior components and strict production technology, the controller can be
used in relatively bad working environment and has reliable performance and long life-span.
2. PWM Step less Dump load Mode: dump residual power with division into thousands of stages.
It can dump residual power while charging battery banks, which is benefit to effectively extend
battery longevity.
3. Voltage Limiting and Current Limiting Charge Mode: When battery voltage exceeds the
pre-set floating voltage point, the controller will adopt PWM voltage limiting charge mode.
It dumps the excess energy. When wind turbine charging current exceeds pre-set brake
current point, the controller will automatically start brake to protect battery banks.
4. LCD Display Function: LCD screen can display system status and parameters via visual digital
and graphic form. Such as: battery voltage, wind turbine voltage, PV voltage, wind turbine
current, PV current, wind turbine power, PV power, battery power status etc.
5. Perfect Protection Functions: Battery over charge protection, Battery over discharge
protection, Battery anti-reserve connection protection, wind turbine current-limiting charge,
automatic brake, manual brake; solar anti-reverse charge protection, solar anti-reverse
connection protection, lightning protection, etc.
More information will be shown in the manual when you receive goods
