Square Box type tube separation centrifuge
Summary:
Square box type Tube centrifugal separator (also can be named tube separation centrifuge) is a high speed high separation factor and high separation accuracy machine. It is of square box type with door can be opened, which features easy of dismounting and operation. All the parts contacting with materials are made of SUS316L. Also, as customer required, large surface of cooling tubes can be installed inside the machine, which has the good cooling effect.
Note: square box type one only has one type:
“TC”-Clarification type (only double phase separation)
TC series tube centrifugal separator is mainly used to separate various suspension liquids with lower solid content; especially for suspension solid-liquid separation which is of low concentration, fine granule, very narrow difference in solid-liquid specific gravity.
For example,
extraction of bacteria (colibacillus, lactobacillus or Lactobacillus Bulgaricus, etc), extraction of proteins, separation of fermentation liquor, separation of nanometer materials, slag removal of drink, purification of coffee or liquid medicine, etc.
Flow diagram:

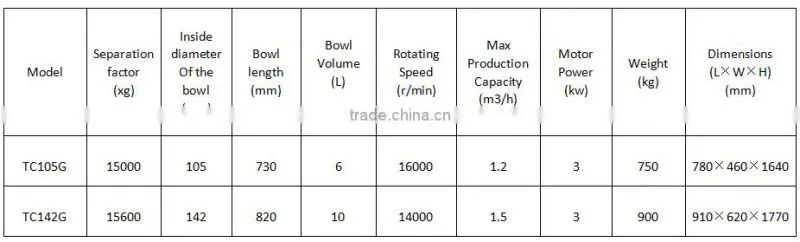

Technical parameter of TC-G Series:
Note: The prodcution capacity is based on water only, just for reference. Different feeding solution will of different production capacity.
Square box type:
with cooling tubes as custom requied.

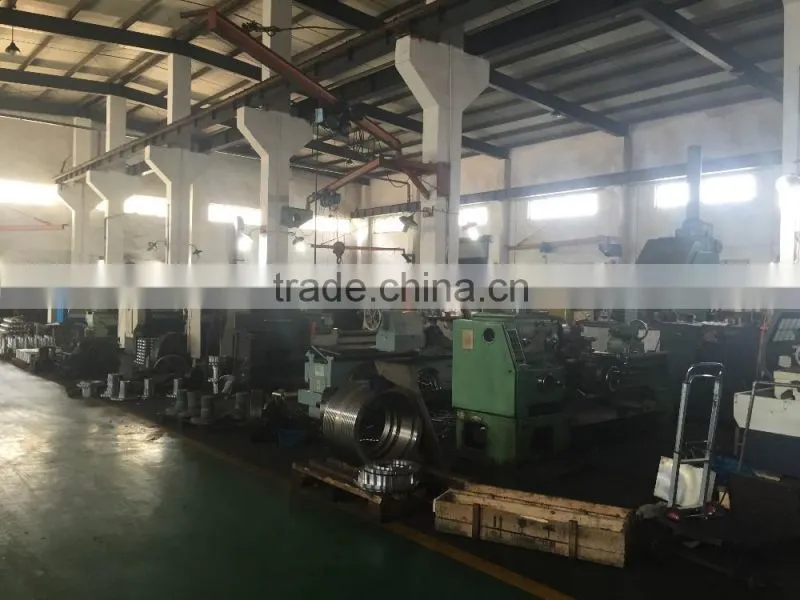

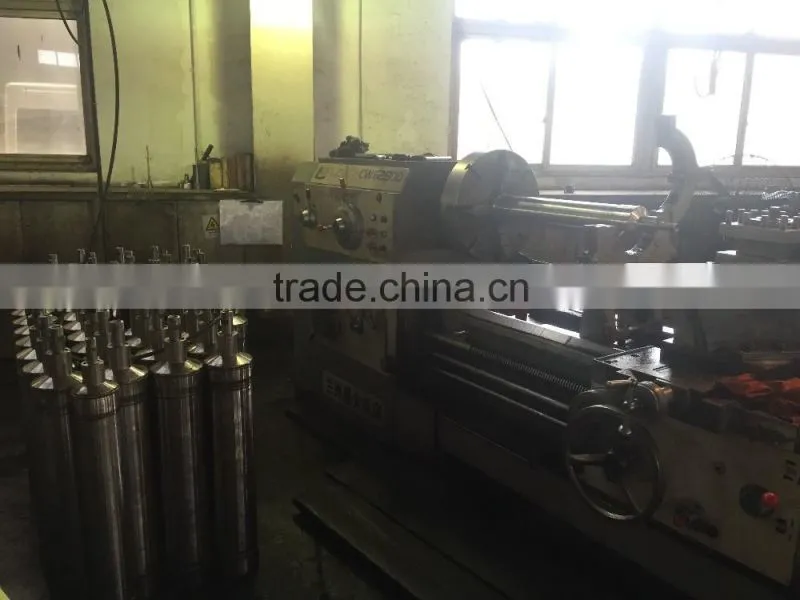

Our workshop:
