Ceiling wireless AP 300Mbps in promotion max support 50 clients high performance
wireless AP Introduction
- Ø 300Mbps:wireless transmission max up to 300Mbps, meeting high speed data,voice and video transmission requirement.
- Ø Ceiling install designed,beautiful, simple, easy to install.
- Ø Smart antenna:Built-in original high-gain smart antenna, wireless superior performance, greatly reduce blind spots.
- Ø High power:external high power PA and LNA design,support wide range wifi coverage.
- Ø POE power supply:support standard 802.3af power supply over Ethernet.
- Ø WDS function:Easy to extend the wireless network.
- Ø Complete wireless encryption technology :Support WEP,WPA-PSK,WPA2-PSK,WPA,WPA2,MAC certification etc variety of encryption/security Settings.
- Ø Advanced function:support AP,AP Client,WDS and Universal Repeater work mode,support multi-SSID(max 3 SSID)
Wireless AP Feature
- Ø Compliant with IEEE802.3AF/AT power supply(PD)standard.
- Ø Compliant IEEE802.11b/g/n
- Ø Support max up to 300Mbps wireless transmission
- Ø Good receiving sensitivity and high transmission power, greatly extend the wireless coverage
- Ø Support ACL(access control list) based MAC
- Ø Support SSID hidden function
- Ø Support multi-SSID function
- Ø Support firmware upgrade via WEB
- Ø 2*10/100Mbps Ethernet interface,support auto MDI/MDIX
- Ø Supports automatic adjustment of wireless transmission rate
- Ø Support 64/128bit WEP encryption,WPA, WPA2, WPA-mixed encryption and security mechanism, ensure the safety of data transmitted in wireless network.
- Ø Support SSID broadcast control,Effectively prevent the SSID broadcasting leaks
- Ø Support configure based Web.
- Ø Support WMM, Voice and video more fluent
- Ø Support software control, work status LED enable/disable function
Ceiling wireless AP datasheet
Hardware | |
Chip |
Atheros 9341 |
memory |
64MB DDR |
Flash |
8MB 20MHz |
Main frequency |
535MHz |
Dual PA design |
Skyworks 2576 |
Protocol&standard |
IEEE 802.11n,IEEE 802.11g,IEEE 802.11b;IEEE802.3af/802.3at IEEE 802.3,IEEE 802.3u,IEEE 802.3x |
Interface |
2*10/100Mbps RJ45 ports,support Auto MDI/MDIX; |
Reset |
Back to factory default: (press 10s) |
LED(green) |
Power / LAN / WLAN |
Antenna |
Built-in 4dBi antenna |
Power supply |
DC 12V/1.5A &PoE, support IEEE802.3af/802.3at standard |
Wireless | |
Basic function |
Wireless ON/OFF;SSID broadcast ON/OFF;support 11b only,11g only, 11n only, 11b/g mixed only, 11b/g/n mixed only mode work channel:1-14 bandwidth:20MHz,40MHz;multi-SSID configure/hidden/isolation |
Frequency |
2.412----2.4835GHz |
Transmit rate |
IEEE 802.11b: 1, 2, 5.5,11 Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps IEEE 802.11n: 150,300Mbps (typical) |
Transmit power: |
27dBm (Max) (dual PA) |
|
Receiving sensitivity (typical) |
IEEE802.11n: MCS8 at -90dBm MCS15 at -70dBm IEEE802.11g : 6Mbpsat -92dBm 54Mbpsat -72dBm EEE802.11b : 1Mbpsat -93dBm 11Mbpsat -89dBm |
Work mode |
AP AP Client WDS Universal Repeater + AP (scan) |
Wireless security |
MAC access control(ACL) 64/128 bit WEP encryption ;WPA-PSK/WPA2-PSK,WPA/WPA2 Mixed WPS(PBC,PIN) 802.1x |
Power optional |
FULL power and EU STANDARD optional |
Software | |
System tools |
Traffic statistics ;Client list software control the AP; work instructions LED opening and closing; time zone set up; local WEB management control; configuration file import and export ;WEB software upgrades |
Others | |
Package |
300Mbps wireless high power ceiling AP |
Size |
Φ150 * 150 * 18mm |
Environment |
Work Temp:0℃ to 45℃(32°F to 113°F) Store temp::-20℃to 70℃(-4°F to 158°F) Work Hum.:10% to 90%RH No condensation Store Hum:5% to 90%RH No condensation |

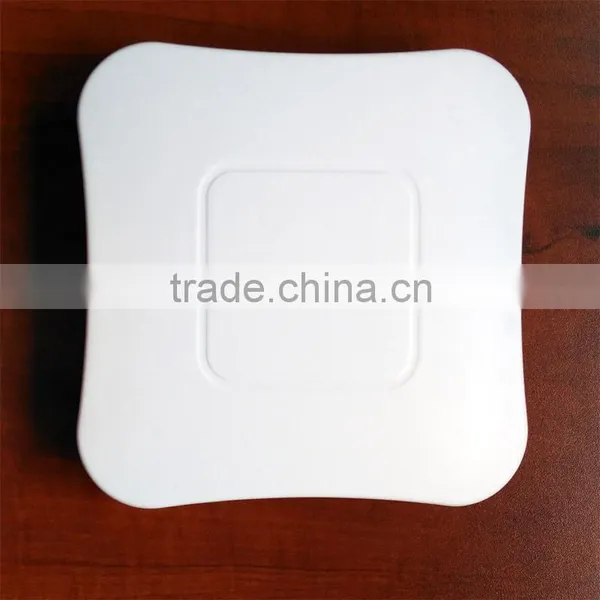

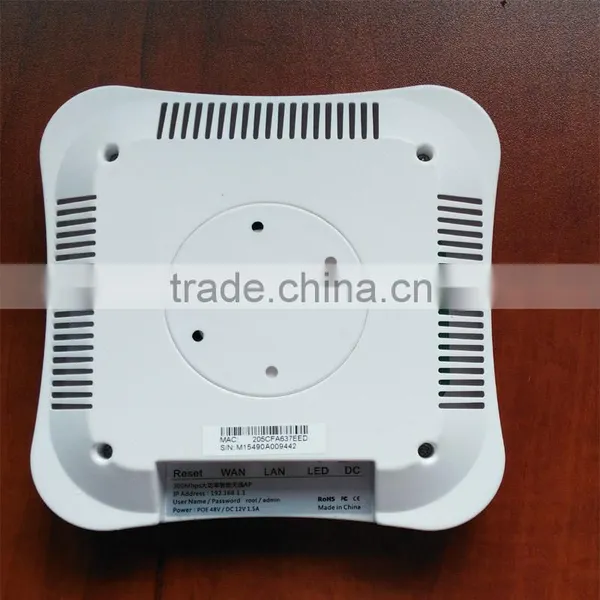

Product picture

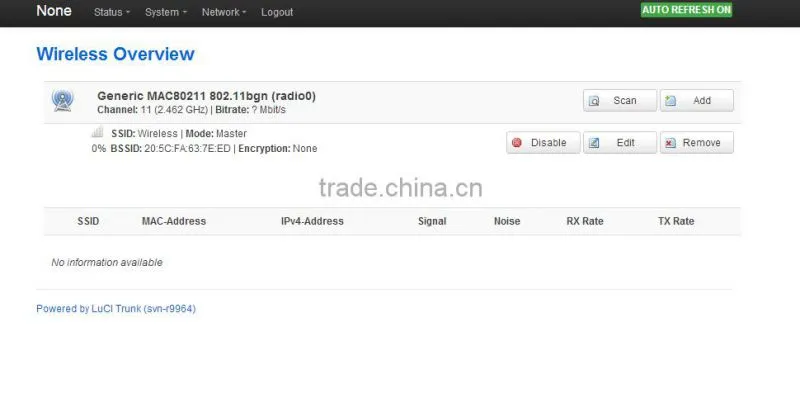

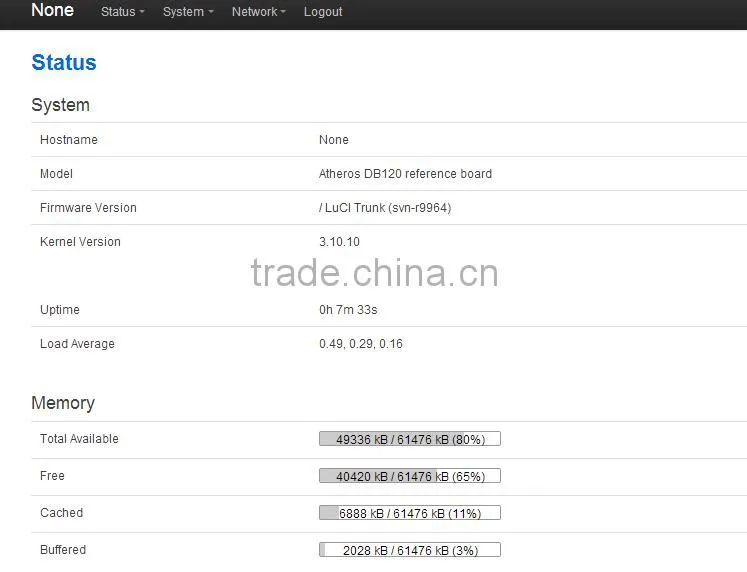

Web interface
Click Below for more interesting products info.
Wireless AP and Router High quality Network cable POE switch
Network switch Ptach panel patch cord Fiber patch cord
Related products
FAQ
1. What is the warranty on the parts you sell?
All parts sold by YINET meet all of the manufactures specifications and carry one year warranty. Some customized products could carry up to three years warranty.
2. How to repair a broken product?
Usually we supply free substitute model for the small value products. and we bear the freight. For Big-ticket items or high value products,Considering the high freight and costwe can supply free parts such as PCBA,power adapter or power supply etc. We can also provide remote guidance.
3. What payment methods do you offer?
We accept payment via T/T, L/C,Western Union, MoneyGram and PayPal;
4. What is your minimum order?
To achieve customers' satisfaction, we accept sample order, even one Piece.
