Application field:
* Disinfect and sterilize purified water, mineral water , beverage (material water ) , treat medium water and wastewater .
* Disinfect and sterilize aseptic workshop with the outside centralizing method .
* Produce high concentrated ozone water , rinse and spray raw material and accessorial material , clean vegetables and fruits,
to reach the purpose of disinfecting and sterilizing the surface .
* Produce high concentrated ozone water , disinfect and sterilize pipeline and utensils .
* Decolor the high-level oxidation technology of chemical and industrial system .
| Ozone generating capacity | 36g/h | Air Source | oxygen |
| Power supply | 220V50HZ | Power | 500W |
| N.W | 60kg | Size | 500*420*900 |
| Introduction | |||

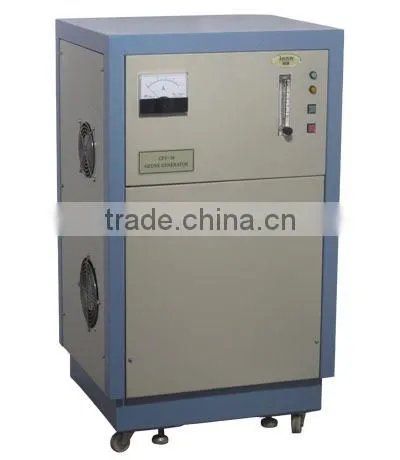

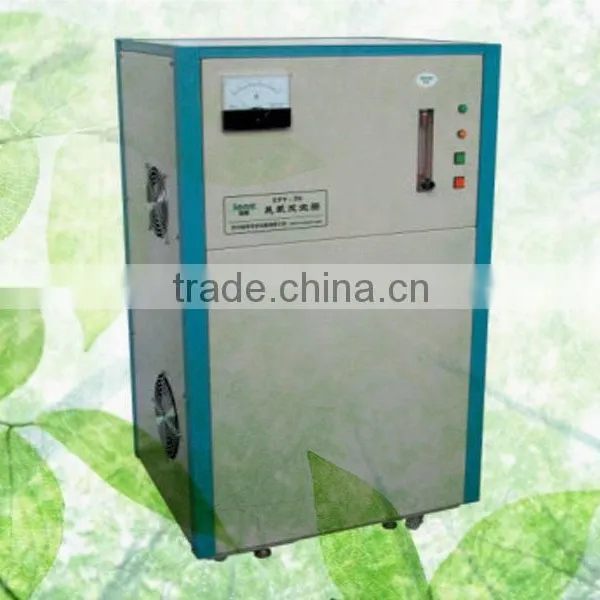

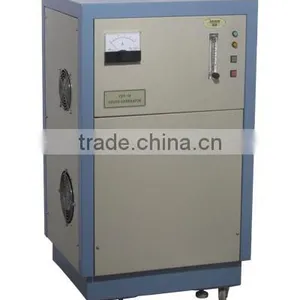

1, CFY-36 ozone sterilizer: Take oxygen as gas source (Need to additionally oxygen bottle), and driven by high-frequency & voltage power module, and take ozone plate with air-cooling as ozone generating fitting. High generating efficiency, high ozone concentration and stable performancehigh oxygen utilization rate, per 15L oxygen can produce 1 glam ozone.
CFY series less than 100g ozone sterilizer
The air pressure of ozone input: ≤0.15MPa
The air pressure of ozone output: 0.1MPa
Ozone concentration: ≥60mg/L
The interface of ozone outlet: Φ8*1 soft pipe
Temperature: 5-35 centigrade
Humidity: ≤80%
Rate input flow: 15-20L/g
2,Ozone sterilizer main application field:
1. Disinfect and sterilize purified water, mineral water, beverage (material water), treat medium water and waste water.
2. Disinfect and sterilize aseptic workshop with the outside centralizing method.
3. Produce high concentrated ozone water, rinse and spray raw materials and accessorial material, clean vegetable and fruits, to reach the purpose of disinfecting and sterilizing the surface.
4. Produce high concentrated ozone water, disinfect and sterilize pipeline and utensils.
5. Fade the high-level oxidation technology of chemical and industrial system.
3,Our main products:
1. CFY series (oxygen source) ozone generator: CFY-3,6,12,24,50,100,150,225,300,500.
2. CFZY series (air source) ozone generator: CFZY-3,6,12,24,50,100,150,225,300,500.
3. CHYS series ozone water treatment machine (Integrate ozone generator, tube mixer and water pump into one): CHYS-B, CHYS-C, CHYS-D.
4. GH series tube mixer: CH-1,2,3,4,5......30..
5. TH series mixing tower: TH-1,2,3,4,5....20...
If you have other requirements, we also can costomize for you.
4,photos of our company
5,CE certification
6, Application field:
| model | ozone capacity | gas source | power supply | power | net weight | size(L*W*H) |
| CFY-3 | 3g | oxygen | 220V50Hz/60Hz | 150W | 10kg | 320*175*380 |
| CFY-6 | 6g | oxygen | 220V50Hz/60Hz | 180W | 12kg | 340*190*420 |
| CFY-12 | 12g | oxygen | 220V50Hz/60Hz | 180W | 25kg | 500*420*345 |
| CFY-24 | 24g | oxygen | 220V50Hz/60Hz | 360W | 35kg | 500*420*445 |
| CFY-36 | 36g | oxygen | 220V50Hz/60Hz | 500W | 60kg | 500*420*900 |
| CFY-50 | 50g | oxygen | 220V50Hz/60Hz | 700W | 68kg | 500*420*1000 |
