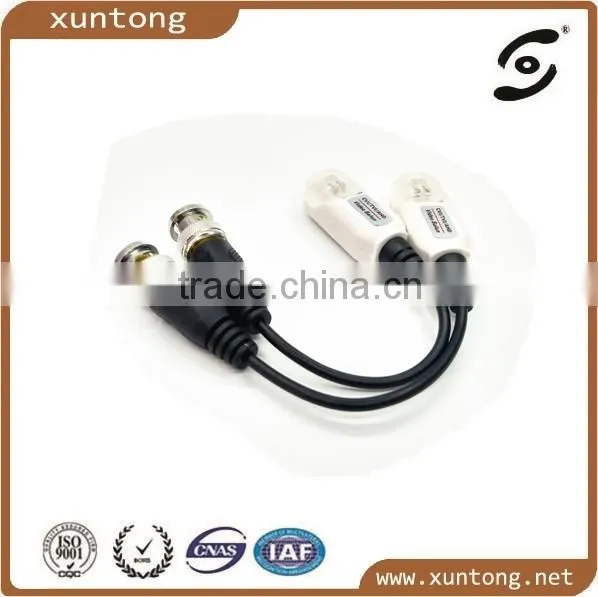

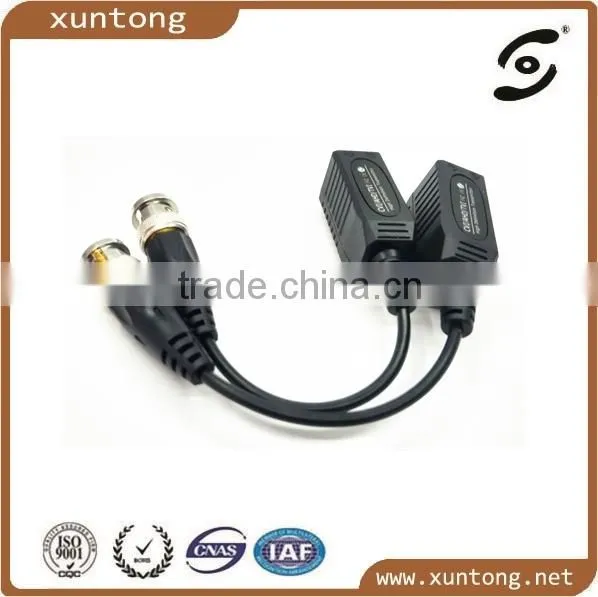

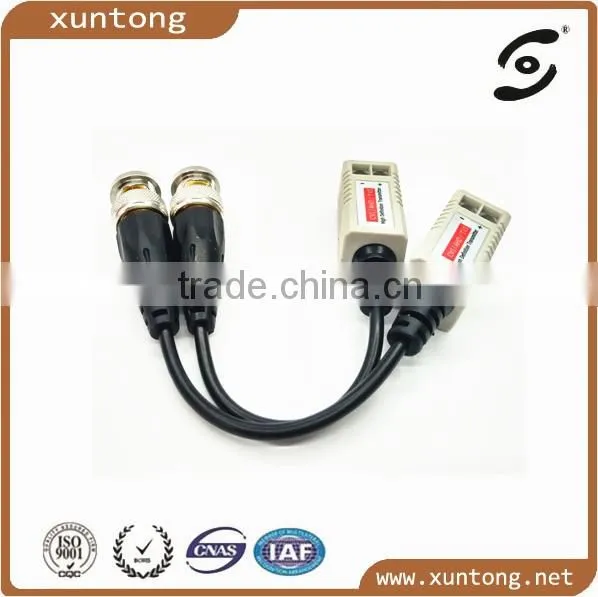

Help CenterManufacture HD-CVI/TVI/AHD Passive Video Balun HD CCTV Via Twisted Pairs YJS-4011HD
Related Products
-
2.5mm DC Power Female Adapter Plug Connector for CCTVUS$ 0.1 - 2MOQ: 2000 Pieces -
5.5*2.1mm DC Power Male Adapter Plug Connector for CCTV SeriesUS$ 0.1 - 2MOQ: 2000 Pieces
-
High Quality HD-CVI/TVI/AHD Passive Video BalunUS$ 0.1 - 2MOQ: 2000 Pieces
-
5.5MM Connector Male Female DC AdapterUS$ 0.1 - 2MOQ: 2000 Pieces
-
Power Connector 5.5/2.1mm Cable CCTV DC ConnectorUS$ 0.1 - 2MOQ: 2000 Pieces
BNC Video DC Power RCA Audio Balun
Characteristic Impedance |
100Ω(Terminal) |
Operating Temperature |
-20℃~70℃ |
75Ω(Female BNC) |
Storage Temperature |
-40℃~150℃ |
|
Operating Frequency |
DC~6MHz. |
Anti-interference |
>60dB |
Signal transmission |
AHD/CVI/TVI |
Transmission distance |
AHD/CVI:≤300M |
video format |
PAL.NTSC.SECAM |
TVI:≤200M |
|
UTP cable |
Impedance |
100±20Ω |
|
DC Loop Resistance |
52ohms per 1000ft(18ohms per 100m) |
||
Transmission media |
UTP CAT5 / 5E / 6 |
Attenuation |
≤1.5dB typ |
Executive Standard |
Video Input(Female BNC) |
2KV(common mode). 10/700us IEC6100-4-5/1995(GB/T 1726,5-1999) |
|
Video Output(Push-Pins) |
2KV(common mode). 10/700us IEC6100-4-5/1995(GB/T 1726,5-1999) |
||
|
Parts Name |
Material |
|
Material And Plating |
Housing |
ABS engineering plastic |
|
Body Color |
Gray |
||
Dimensions |
95*90*15mm |
||
Gross weight |
88g |
||
Relative Humidity |
0~95%(non-condensing) |
||
1. Your inquiry will be replied within 24 hours.
2. Our delivery time is 15 days, we will contact if there are special circumstances.
3. OEM&ODM.
4. We can do the product from your drawing, sample or indicated details.
A:Do you only have these types of products ?
XT: No, We can do other products just need to give us your product samples and data.
B :How about your product quality and piece?
XT: We have different material products, you can choose according to your needs.
C :I dont know if your product is suitable for us.
XT: Dont worry,we can give our samples to you if you need.
