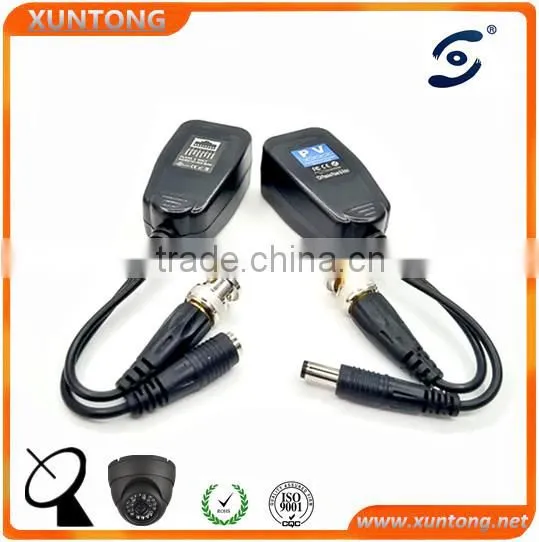

CCTV Coax BNC Video DC Power RCA Audio Balun Transceiver With Video Balun Cat5e
US$ 0.01 - 0.3
MOQ: 5000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
xuntong
Model Number:
XT
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai ningbo shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1CH Passive Security CCTV UTP Twisted Pair BNC Male Connector Video BalunUS$ 0.01 - 0.3MOQ: 5000 Pieces -
Tool-free Twisted Pair Video Balun via Bnc to Rj45 ConverterUS$ 0.01 - 0.3MOQ: 5000 Pieces
-
Passive Security CCTV UTP Twisted Pair BNC Male Connector Video BalunUS$ 0.01 - 0.3MOQ: 5000 Pieces
-
BNC Balun Converter Cat5 Wireless Adapter CCTV Video BalunUS$ 0.01 - 0.3MOQ: 5000 Pieces
-
Coax CAT5 Camera CCTV Passive BNC Video BalunUS$ 0.1 - 0.2MOQ: 1000 Pieces
Place of Origin
Jiangsu, China
Brand Name
xuntong
Model Number
XT
BNC Video DC Power RCA Audio Balun
PRODUCT GROUP
PRODUCT SPECIFICATIO
| Characteristic Impedance | 75ohm | |
| Frequency Range | DC-4GHz | |
| VSWR | ≤1.30@DC-1000MHz | |
| Insertion Losss | ≤0.2dB | |
| Working Vlotage | 500V RMS,50Hz,at sea level | |
| Dielectric Withstanding Voltage | ≥1500V RMS,50Hz,at sea level | |
| Dielectric Resistance | ≥5000MΩ | |
| Contact Resistance | Center Contact ≤1.5mΩ | Outer Contact ≤1.0 mΩ |
| Durability | Mating cycles ≥500 | |
| Parts Name | Material | Plating |
| Body | Brass | Ni |
| Insulator | PTFE | — |
| Inner Conductor | Phosphor Bronze | Au |
| Coupling Nut | Brass | Ni |
| Gasket | Silicone Rubber | — |
| Ferrule | Annealed Copper | Ni |
| Operating Temperature | _45 °C~-85 °C | |
| Weatherproof Rate | IP67 | |
| RoHs (2002/95/EC) | Compliant by exemption | |
| Suitable Cable Family | RG59 Cable | |
PRODUCT IMAGE
PACKAGE SHIPPING
EQUIPMENT PROCESS
CERTIFICATIONS
OUR SERVICE
1. Your inquiry will be replied within 24 hours.
2. Our delivery time is 15 days, we will contact if there are special circumstances.
3. OEM&ODM.
4. We can do the product from your drawing, sample or indicated details.
FAQ
A:Do you only have these types of products ?
XT: No, We can do other products just need to give us your product samples and data.
B :How about your product quality and piece?
XT: We have different material products, you can choose according to your needs.
C :I dont know if your product is suitable for us.
XT: Dont worry,we can give our samples to you if you need.
