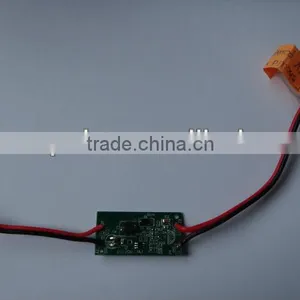

Daughter Board Pcba Smt Pcb Assembly

Name: Daughter Board Pcba Smt Pcb Assembly
Brand: Rigao
SKU: 132268343

US$ 6 - 8 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Rigao

Model Number:

Rigaopcba0288

Shenzhen Rigao Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Rigao

Model Number Rigaopcba0288

Base Material FR4

Copper Thickness 1OZ

Board Thickness 1.6mm

Min. Hole Size 0.5mm

Min. Line Width 0.5mm

Min. Line Spacing 0.075mm

Surface Finishing HASL

Specifications

pcb & pcba Service
UL,Rohs Certificated pcb assembly
OEM PCBA are welcome
Quick turn pcba
PCBA Leadtime:14 days

Welcome to Rigao Electronics!

One-stop EMS Service-- Your Reliable PCB and PCB Assembly Supplier

-Contract Manufacturing pcb and pcba
- Engineering Services
- PCB Design & Assembly and copy service
- Prototyping pcb and pcba

- Components purchasing

- Plastics and Molds

- Fast turn around pcb and PCBA

1. PCB Assembly Specification

Quantity	Prototype, small-medium and high volume
Type of Assembly	SMT and Through hole
Solder Type	Water Soluble Solder Paste, Lead and Lead Free
File Formats	Bill of Materials
	Gerber files
Bare Board Size	Smallest:0.25*0.25 Inches
	Largest: 20*20 Inches
Components	Passives Down to 0201 Size
	BGA and VFBGA
	Leadless Chip Carriers/ CSP
	BGA Repair and Reball
	Part Removal and Replacement
Component Packaging	Cut Tape,Tube,Reels,Loose Parts
Turn Time	Same Day Service to 15 day service
Testing	X-RAY Inspection & AOI Test

2. Process Capability

Item	Technical Index
Layer	1-22 layers(Rigid Board)
	1-10 layers(Flexible Board)
	Multi-layer
Base Material	FR4, PI, PET
Cooper Thickness	Rigid PCB	0.5Oz to12Qz
	Flexible PCB	18μm-105μm
Min. Hole Size	0.2mm
Min. Line Width	Rigid PCB	0.1mm
	Flexible PCB	3mil
Min. Line Spacing	Rigid PCB	0.1mm
	Flexible PCB	3mil
Surface Treatment	OSP/HASL Lead Free/ ENIG/Immersion Gold/Immersion Tin
External Treatment	Precise V-cut, externally pressed or milled, laser appearance
External Tolerance	±0.05mm
Solder Mask Color	Blue/White/Green/Red/Yellow
Welding Resistance Film	Covered in layers with PI and PET film
	Sensitive welding resistant oil/ welding resistant dry film/silk printing oil/separable welding resistant oil
Type of oil	Applicable to silk printing in multi-colors
