Help CenterGround Wire/ACS Wire/Aluminium Clad Steel Wire(stranded)
Related Products
Application:
It is widely used in longspan transmission line, overhead ground conductor, extra high voltage overhead conductor, optical fiber composite overhead ground line, self damping conductor line, bare overhead conductor, OPGW , ground wire , messenger wire ,guy wire formed wire for protecting , terminating and splicing transmission and distribution lines , fence , barber wire and hardware etc.
Aluminium Clad Steel Wire/ aluminum clad steel wire
Standard: ASTM B415, etc.

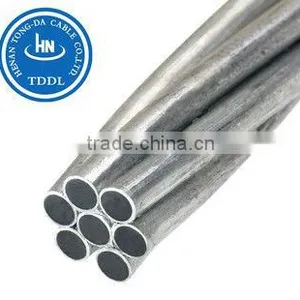

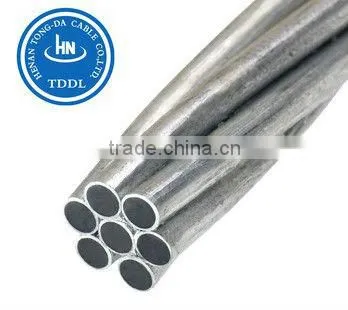

Aluminium Clad Steel Strand/ aluminum clad steel strand
Standard: ASTM B 416, ASTM B 505, DIN 48201, etc.
Aluminium Clad Steel Wire/Alumoweld Wire ASTM B 415
Size |
Dia. |
Area |
Min. Tensile Strength |
D.C. Resistance at 20°C |
Weight |
AWG |
mm |
mm2 |
Mpa |
ohm/km |
kg/km |
4 |
5.189 |
21.15 |
1070 |
4.01 |
139.34 |
4 |
4.775 |
17.91 |
1100 |
4.73 |
118.0 |
5 |
4.620 |
16.76 |
1140 |
5.06 |
110.50 |
5 |
4.392 |
15.15 |
1170 |
5.60 |
99.84 |
6 |
4.115 |
13.30 |
1210 |
6.38 |
87.62 |
6 |
3.934 |
12.16 |
1240 |
6.93 |
80.13 |
7 |
3.665 |
10.55 |
1280 |
8.04 |
69.48 |
7 |
3.477 |
9.495 |
1310 |
8.93 |
62.57 |
8 |
3.264 |
8.367 |
1340 |
10.14 |
55.14 |
9 |
2.904 |
6.633 |
1340 |
12.78 |
43.65 |
10 |
2.589 |
5.260 |
1340 |
16.12 |
34.66 |
11 |
2.304 |
4.169 |
1340 |
20.34 |
27.49 |
12 |
2.052 |
3.307 |
1340 |
25.64 |
21.80 |
Aluminium Clad Steel Strand/Alumoweld Earthwire ASTM B 416
|
No. and Size of wire |
Area |
Stranding |
D.C. Resistance at 20°C |
Weight |
|
mm2 |
No. |
mm |
ohm/km |
kg/km |
|
No.7-5 Awg |
117.42 |
7 |
4.62 |
0.7427 |
781.1 |
No.7-6 Awg |
93.10 |
7 |
4.11 |
0.9196 |
619.5 |
No.7-7 Awg |
73.87 |
7 |
3.67 |
1.1597 |
491.1 |
No.7-8 Awg |
58.56 |
7 |
3.26 |
1.4626 |
389.6 |
No.7-9 Awg |
46.44 |
7 |
2.91 |
1.8441 |
308.9 |
No.7-10 Awg |
36.83 |
7 |
2.59 |
2.3254 |
245.1 |
No.7-11 Awg |
29.18 |
7 |
2.30 |
2.9324 |
194.4 |
No.19-5 Awg |
318.70 |
19 |
4.62 |
0.2698 |
2128 |
No.19-6 Awg |
252.70 |
19 |
4.11 |
0.3402 |
1688 |
No.19-7 Awg |
200.45 |
19 |
3.67 |
0.4291 |
1339 |
No.19-8 Awg |
158.96 |
19 |
3.26 |
0.5410 |
1062 |
No.19-9 Awg |
126.10 |
19 |
2.91 |
0.6820 |
842 |
No.19-10 Awg |
99.93 |
19 |
2.59 |
0.8602 |
668 |
please get back to us so that we shall start making all preparation for your shipment and also we shall prepare a proforma invoice and send to you in order to proceed.
Our reference: We HNTDDL, an manufacturer with 24 years of experience of producing:
1)ACSR(aluminium conductor steel reinforced),
2)ACSR/AS(aluminium clad steel reinforced aluminium conductor),
3)ACS wire(aluminium clad steel wire),
4)AAC(all aluminium conductor),
5)AAAC(all aluminium alloy conductor),
6)Galvanized Steel Wire(GSW), Stay wire, Earth Wire
7)Wire and Cable
