Galvanized Steel Guy Wire

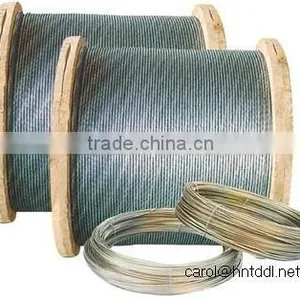

Galvanized Steel Guy Wire thumbnail-1

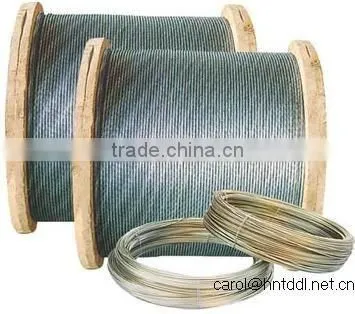

Galvanized Steel Guy Wire photo-1
US$ 600 - 1,100 MOQ: 1 Ton
Key Specifications
Get Latest Price
Steel Grade:
steel
Standard:
ASTM, BS
Wire Gauge:
3.0-20mm
Contact Supplier Request Quote Chat Now
Henan Tong-Da Cable Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI;QINGDAO;NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Steel Grade steel
Standard ASTM, BS
Wire Gauge 3.0-20mm
Place of Origin Henan, China
Type Galvanized
Application Other, Steel Wire Strand
Alloy Or Not Non-alloy
Special Use Cold Heading Steel
Model Number GSW
Brand Name HNTDDL

Specifications

Guy wire (Galvanized steel wire strand )are produced for use with poles,towers 7/8,7/12,7/14,7/18

1.Ungalvanized steel wire,galvanized steel wire for steel core for ACSR,fences,Packing.
   Specification :1.00-4.20mm
2.Galvanized steel wire strand for groud wires,steel core for ACSR,stay wires,Guy wires,messengers.
   Specification:1×7-3.00-12.6mm
          1×19-5.00-16.00mm

Number
of
wires
in
strand		 Stee
wire
diameter
mm		 Norminal
diameter
of the
strand
mm		 The cross
section
area of
strand
mm2 		Nominal tensile streng of Gal.steel wire Mpa Approximate
Weight
of stand
per
Kg/100M
1175 1270 1370 1470 1570
Breaking strength of strand KN≥
1×7 1.60 4.8 14.07 16.53 17.87 19.28 20.68 22.09 11.17
1.80 5.4 17.81 20.93 22.62 24.40 26.18 27.96 14.14
2.00 6.0 21.99 25.84 27.93 30.13 32.32 34.52 17.46
2.20 6.6 26.60 31.26 33.78 36.44 39.10 41.76 22.77
2.30 6.9 29.08 34.17 36.93 39.84 42.75 45.66 23.09
2.60 7.8 37.17 43.60 47.20 50.92 54.63 58.30 29.51
2.90 8.7 46.24 54.33 58.72 63.36 67.97 72.60 36.71
3.00 9.0 49.48 58.14 62.84 67.79 72.74 77.68 42.38
3.20 9.6 56.30 66.15 71.50 77.13 82.76 88.39 44.70
3.50 10.5 67.35 79.14 85.85 92.27 99.00 105.74 53.48
3.80 11.4 79.39 93.28 100.82 108.76 116.70 124.64 63.04



Number
of
wires
in
strand		 Stee
wire
diameter
mm		 Norminal
diameter
of the
strand
mm		 The cross
section
area of
strand
mm2 		Nominal tensile streng of Gal.steel wire Mpa Approximate
Weight
of stand
per
Kg/100M
1175 1270 1370 1470 1570
Breaking strength of strand KN≥
1×19 1.60 8.0 38.2 44.88 48.51 52.38 56.15 59.97 30.40
1.80 9.0 48.35 56.81 61.40 66.24 71.07 75.91 38.49
2.00 10.0 59.69 70.14 75.81 81.77 87.74 93.71 47.51
2.20 11.6 72.22 84.86 91.71 98.94 106.16 113.39 56.69
2.30 11.5 78.94 92.75 100.25 108.15 116.04 123.94 62.84
2.60 13.0 100.88 118.53 125.12 138.20 148.29 158.38 80.30
2.90 14.5 125.50 147.46 159.38 171.93 184.48 197.03 99.90
3.00 15.0 134.30 157.80 170.56 183.99 197.42 210.85 105.43
3.20 16.0 152.81 179.55 194.06 209.35 224.63 239.91 121.64
