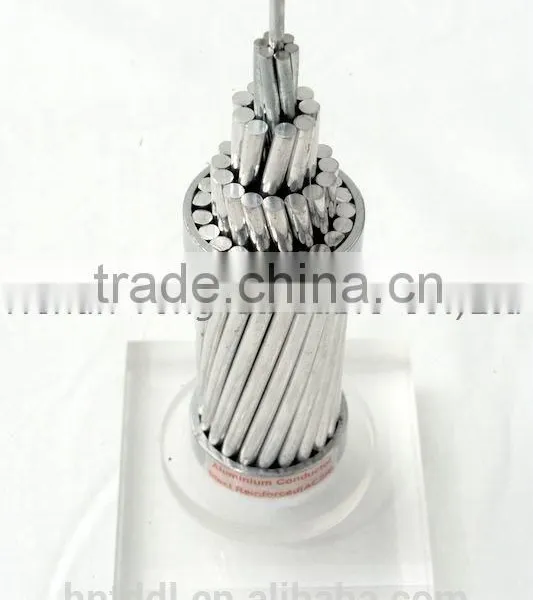

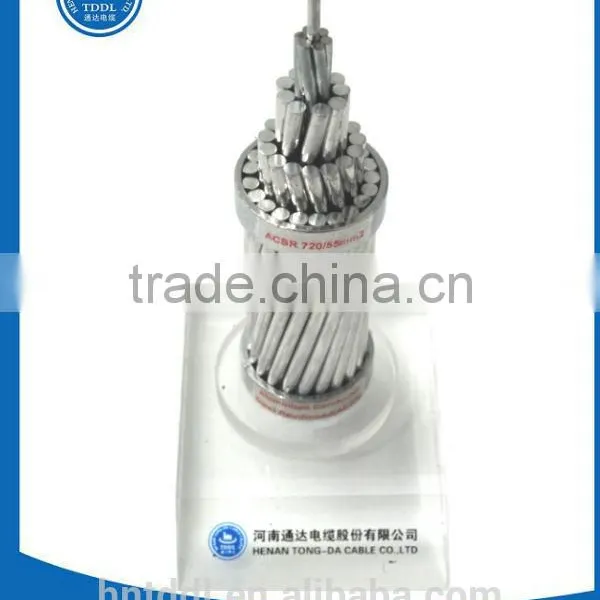

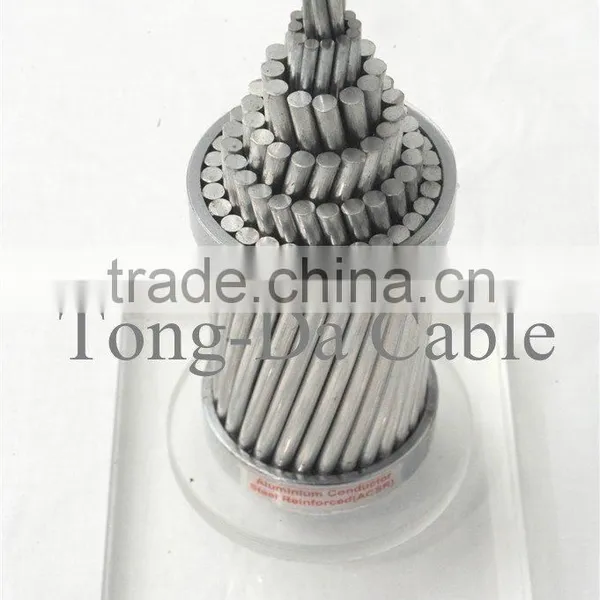

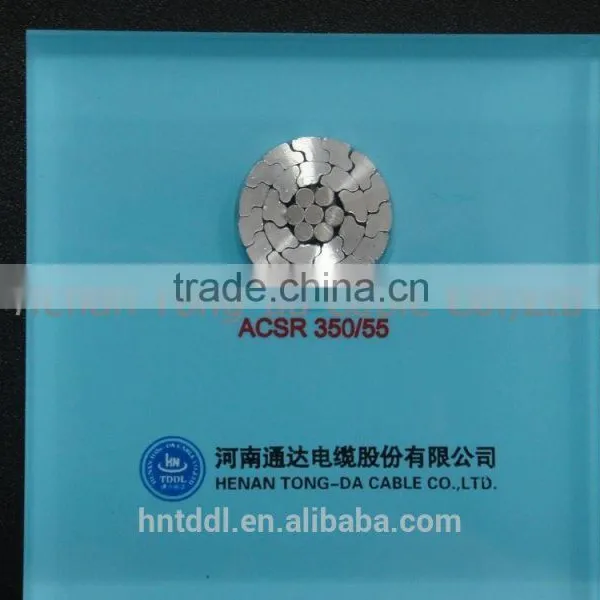

ACSR--aluminum Conductor Steel Reinforced for CSA C49

Name: ACSR--aluminum Conductor Steel Reinforced for CSA C49
Brand: HNTDDL
SKU: 132283887

Negotiable MOQ: 1000 Kilometers (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Henan, China

Brand Name:

HNTDDL

Model Number:

Flexible bare conductor

Henan Tong-Da Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

sahnghai qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Brand Name HNTDDL

Model Number Flexible bare conductor

Conductor Material Aluminum

Insulation Material Other

Jacket Other

Number of Conductors custom

Application indoor and outdoor wire

Aluminium Conductors Steel Reinforced(ACSR CSA C49-1965)
Code Name	Area		Stranding and wire diameter		Approx. O.D.	Total
	Al.		Al.	Steel	Approx. O.D.	Total
	AWG or MCM	mm2	No./mm	No./mm	mm	Kg/Km
Phoenix	954	483.42	42/3.83	7/2.13	29.67	1528
Cardinal	954	483.42	54/3.38	7/3.38	30.42	1826
Snowbird	1033.5	523.68	42/3.99	7/2.21	30.57	1657
Curlew	1033.5	523.68	54/3.51	7/3.51	31.59	1978
Beaument	1113	563.93	42/4.14	7/2.30	31.74	1783
Finch	1113	563.93	54/3.65	19/2.19	32.85	2120
-	1192.5	604.26	42/4.28	7/2.38	32.82	1911
Geackle	1192.5	604.26	54/3.77	19/2.27	33.97	2270
Scissortail	1272	644.51	42/4.42	7/2.46	33.9	2039
Pheasant	1272	644.51	54/3.90	19/2.34	35.1	2421
-	1351.5	684.84	42/4.56	7/2.53	34.95	2166
Marin	1351.5	684.84	54/4.02	19/2.41	36.17	2572
-	1431	725.1	42/4.69	7/2.61	35.97	2294
Plow	1431	725.1	54/4.14	19/2.48	37.24	2725
-	1510.5	765.35	42/4.82	7/2.67	36.93	2420
Parrot	1510.5	765.35	54/4.25	19/2.55	38.25	2877
-	1590	805.68	48/4.63	7/3.60	38.58	2779
Falcon	1590	805.68	54/4.36	19/2.62	39.26	3025
Bantam	13.1	6.65	3/1.68	4/1.68	5.04	87.8
Magpie	20.87	10.58	3/2.12	4/2.12	6.36	139.9
Shrike	33.2	16.84	3/2.67	4/2.67	8.04	222.6
Snipe	52.825	26.77	3/3.37	4/3.37	10.11	354.1
Loon	66.5	33.68	3/3.78	4/3.78	11.34	445.8
Petral	101.8	51.61	12/2.34	7/2.34	11.7	377.2
minoca	110.8	58.13	12/2.44	7/2.44	12.2	410.7
Leghorn	134.6	68.19	12/2.69	7/2.69	13.45	500
Guinea	159	90.59	12/2.92	7/2.92	14.6	589.3
Dollerel	176.6	89.48	12/3.08	7/3.08	15.4	654.8
Dorking	190.8	96.71	12/3.20	7/3.20	16	705.9
Branma	203.2	102.97	16/2.96	19/2.48	18.12	1004.5
Cochin	211.3	107.1	12/3.37	7/3.37	16.85	784.2
