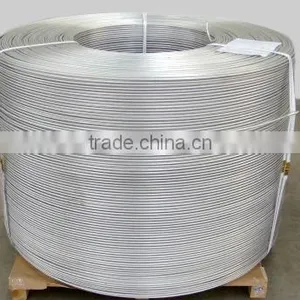

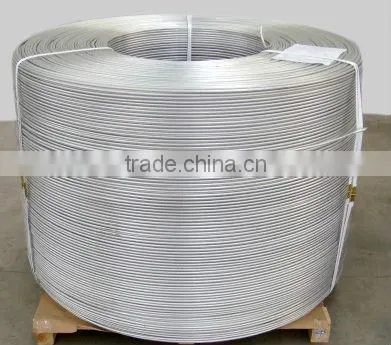

Aluminium or Alloy Rod
Negotiable
MOQ: 20 Metric Tons (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
HNTDDL
Model Number:
1350
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PVC Insulated Flat Wire Rated 450/750VNegotiableMOQ: 1 Kilometer -
600V Cable/Wire/Cord With PVC Insulated Nylon Sheath,ASTM StandardNegotiableMOQ: 1 Kilometer
-
Rubber Flexible CablesNegotiableMOQ: 1000 Meters
-
Aluminium Rod 1350 Electric QualityNegotiableMOQ: 20 Metric Tons
-
Low Voltage Cable PVC InsulatedNegotiableMOQ: 1 Kilometer
Place of Origin
Henan, China
Brand Name
HNTDDL
Model Number
1350
Conductor Material
Other, Alloy
Specifications
Aluminium Rod was produced and provided by consulting and following the American standard ASTM B233 and Germany standard EN171521.Producing and prividing the products according to Chinese standard GB/T3954-2001, and consulting and following the American standard ASTM B233:1997, and Germany DIN standard EN 17152:1997.
2.The Type,Condition and Range
| Type | Condition | Range(mm) |
| A | o | Φ9-20 |
| A2,A4,A6,A8 | H/R |
3.The Mechanics and Electric Function
| Type |
Tensile Strength (Mpa) |
Percentage Elongation (%≥) |
Resistivity at 20°c (nΩ.m≤) |
| A | 60-80 | 25 | 27.55 |
| A2 | 80-100 | 12 | 27.85 |
| A4 | 95-115 | 10 | 28.01 |
| A6 | 110-130 | 8 | 28.01 |
| A8 | 120-150 | 6 | 28.01 |
4.The Component of Material
| Name of Element | Si | Fe | Cu | V+Ti+Mn+Cr | Other | Al |
| Percentage % | ≤0.11 | 0.25 | 0.01 | 0.02 | 0.03 | ≥ 99.61 |
5.Standard specification for Aluminium 1350 Drawing Stock for ELectrical Purposes
TABLE 1- Tensile Property Limits
| Temper | Tensile Strength | |
| Ksj | Mpa | |
| 1350-O | 8.5-14.0 | 59-97 |
| 1350-H12 and-H22 | 12.0-17.0 | 83-117 |
| 1350-H14 and-H24 | 15.0-20.0 | 103-138 |
| 1350-H16 and-H26 | 17.0-22.0 | 117-152 |
TABLE 2- Electrical Resistivity Limits
| Temper | Resistivity | Equivalent Volume Conductivity,% |
| Max.Ω.mm2/m | IACS Min. | |
| 1350-O | 0.027899 | 61.8 |
| 1350-H12 and-H22 | 0.028035 | 61.5 |
| 1350-H14 and-H24 | 0.028080 | 61.4 |
| 1350-H16 and-H26 | 0.028126 | 61.3 |
