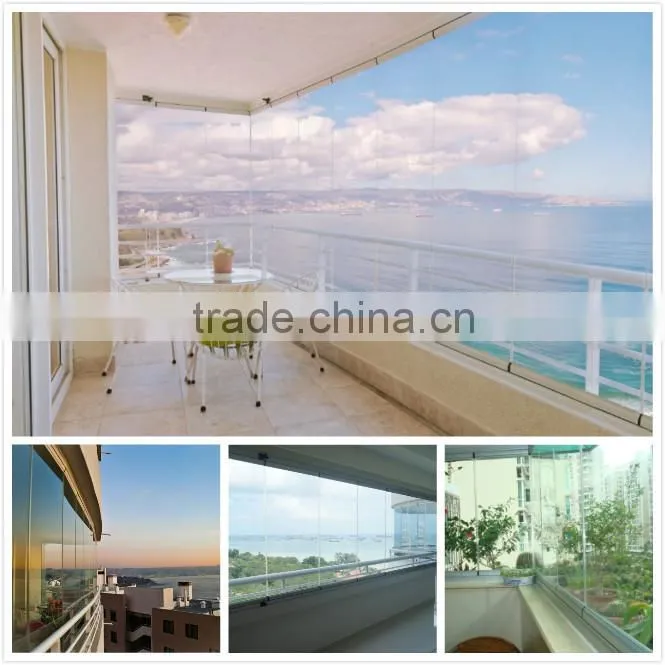

There are no frames between glass panels and each glass panel can freely slide to the left or right to open for ventilation or cleaning purpose with Finzone09 aluminum window. Total or partial balcony enclosure or opening is achieved.The characteristics of Finzone09 aluminum window makes the cleaning of the windows to be very easy,you can clean the reverse and facade with every glass panel.The balcony installed with Finzone09 aluminum window looks like a transparent package balcony,which not only doesn't damage the appearance and style of the building,but also contributes a lot to the integral beauty of the balcony.

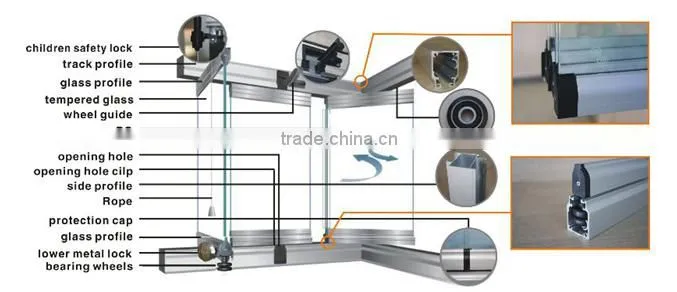

System features for Finzone09 aluminum window

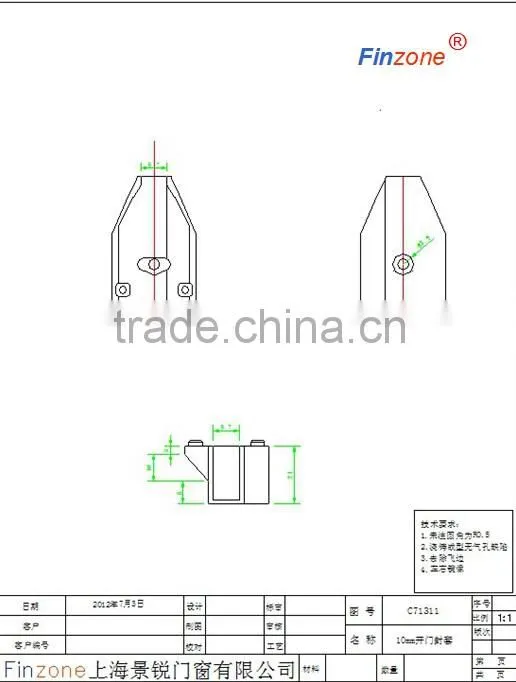

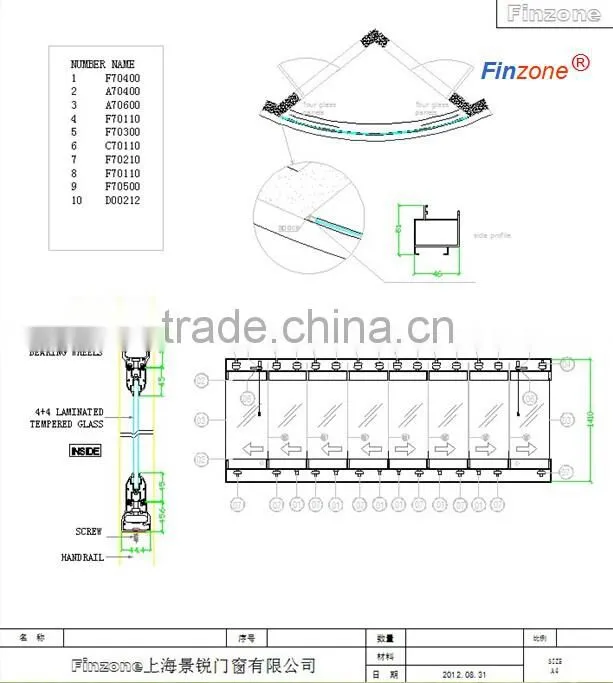

Structure drawing for Finzone09 aluminum window
Mechanical properties for Finzone09 aluminum window
The guide profiles are made in compliance with 6063T5 as special profiles
Tensile strength of the frame from the guide profile: 860 kg
Guide profile deflection 80 kg / 3.8 m:
Perpendicular: 3.5 cm
Horizontal: 7.5 cm
No permanent changes in shape

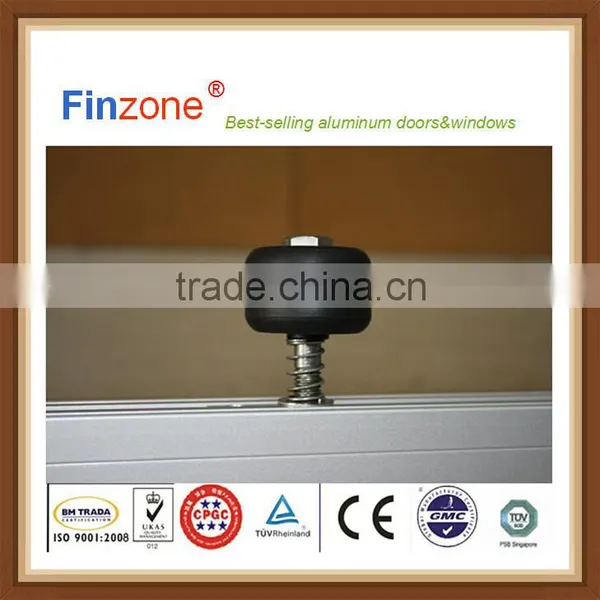

Each glass element is supported by four 8 mm hinge axles, featuring a total of 10 horizontal wheels
Durability of Nylon bearing wheel in random profile loading: undamaged over 600 kg Gearing heat resistance (POM): approx +90 Degree C
Frost resistance: over -30 Degree C
All metal parts are non-corrodible: only aluminum and stainless steel
Installation on concrete and brick surface is by 8 mm stainless steel bolts and brass anchor.
Sound insulation for Finzone09 aluminum window
For 100 Hz Reduction 6.7 dB
For 2400 Hz Reduction 13.5 dB
Measured according to international standards ISO 140-5 & ISO 717-1
Wind pressure for Finzone09 aluminum window
Finzone09 aluminum window can support the wind speed according to the panel height and glass thickness
| wind speed | Beaufort scale description | Equivalent pressure | Maxiumum height for 8mm aluminum window |
| 121km/h | Hurricane | 700Pa | 1.85m |
| 112km/h | Violent storm | 600Pa | 2m |
| 102km/h | Storm | 500Pa | 2.2m |
| 79km/h | Severe gale | 300Pa | 2.5m |
Function for Finzone05 aluminum window's shapes
That's not enough to introduce our product,because we also want to show you how we can design this new aluminum window.Simple style and streamlined appearance,shows the perfect combination of technology and style.
Color choice for Finzone09 aluminum window
Customers coming for Finzone09 aluminum window
Exhibitions for Finzone09 aluminum widnow

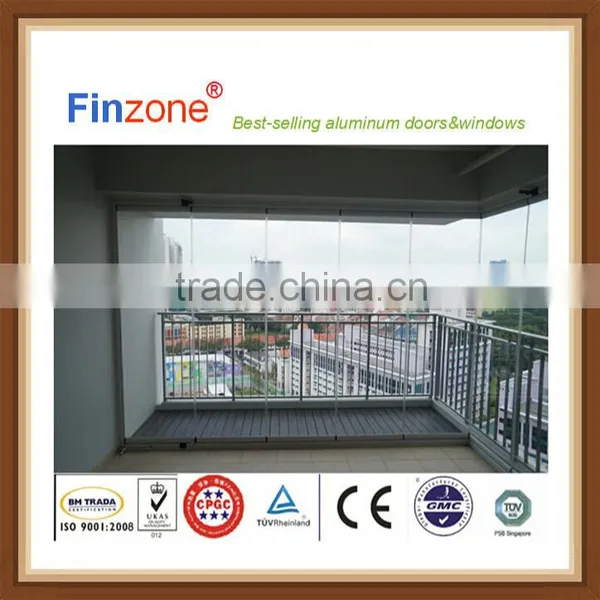

Users' projects for Finzone09 aluminum window
Effective Factory for Finzone09 aluminum window
Our Package for Finzone09 aluminum window
Certificates for Finzone09 aluminum window
