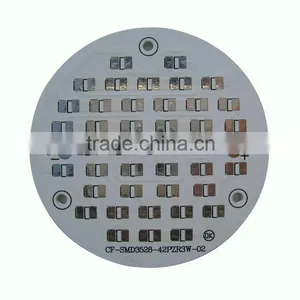

Help CenterAluminum Base LED PCB
Negotiable
MOQ: 1 Square Meter (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Yun Jie
Model Number:
aluminum base PCB for high power soptlight
Payment & Shipping
Payment Methods:
Port of Shipment:
HongKong or Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Lead-free HAL PCB BoardNegotiableMOQ: 1 Square Meter -
Single-sided Aluminum PCB 1.6mm LED Aluminum Clad PCBNegotiableMOQ: 1 Square Meter
-
Aluminum Base PCB for LED High Thermal ConductivityNegotiableMOQ: 1 Square Meter
-
Aluminum Base PCB for High Power Soptlight,LED Circuit Board PCBNegotiableMOQ: 1 Square Meter
-
Double-Sided PCBNegotiableMOQ: 1 Square Meter
Place of Origin
Guangdong, China
Brand Name
Yun Jie
Model Number
aluminum base PCB for high power soptlight
Number of Layers
Other, Multi Layer
Base Material
FR-4, CEM-1, CEM-3, Aluminium Clad,Arlon,Teflon,Taconic, Rogers, Pol
Copper Thickness
1OZ
Min. Hole Size
0.1mm or greater
Min. Line Width
0.075mm
Min. Line Spacing
0.075mm
Specifications

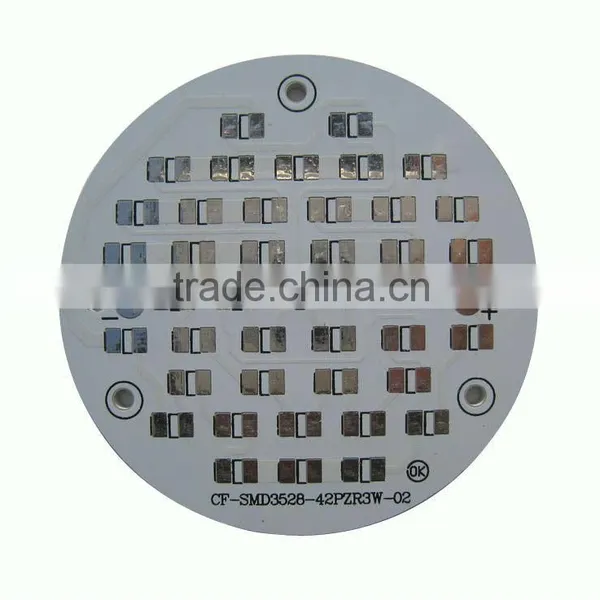

Aluminum base LED PCBAluminum base LED PCB. PCB certificate:ISO, UL and ROHS
Our LED PCB Technical capabilities
1. Layers: 1-20 layers
2. Max. Board size:2000*610mm
3. Min. board Thickness : 2-layer 0.15mm
4-layer 0.38mm 6-layer 0.55mm 8-layer 0.80mm 10-layer 1.0mm 4. Min. line Width/Space: 0.075mm(3mil)
5. Max. Copper thickness: 6OZ
6. Min. S/M Pitch: 0.075mm(3mil)
7. Min. hole size: 0.1mm(4mil)
8. Hole dia. Tolerance (PTH): ±0.05mm(2mil)
9. Hole dia. Tolerance (NPTH): +0/-0.05mm(2mil)
10. Twist & Bent: 0.75%
11. Test Voltage: 50-300V
12. Min. blind/buried via: 0.15mm (6mil)
13. Surface Finished: HAL, ENIG, ImAg, Imsn OSP, Plating AG, Plating gold
14. Materials:FR4, H-TG, Teflon, Rogers, Ceramics, Aluminium, Copper base
