Specifications
Portable Leeb hardness testerOLED display
Mini USB communication port.
Large capacity memory can store 48~350 groups
-
All English menu display
OLED display
Mini USB communication port.
Large capacity memory can store 48~350 groups
(impact average times32~1) of information including single measured value, mean value, testing date, impact direction, impact times, material and hardness scale etc.
l Conversion to tensile strength (U.T.S).
l For all metallic materials.
l Provide software calibration function.
l High-performance Li battery with charging circuit providing extra-long working time and standby time. Battery sign, display the current remaining capacity.
l PC Software can be equipped to meet the higher demands in quality assurance, activities and management.
-
[Technical Specification]
l Measuring range: 170~960 HLDl Measuring direction: 360°
l Hardness Scale: HL, HRC, HRB, HRA, HV, HB, HS
l Display: dot matrix LCD 128×32 dots
l Data storage: 350 groups maxim, relative to impact times 32~1
l Charging power supply: 5VDC,220VAC
l Charging time: 1~2h
l Battery: 3.7V,Li(120mAh)
l Using temperature: 0 ~ 40°C
l Storage temperature: -25 ~ 70°C
l Continuous working period: 10h (without backlight)
l Communication port: Mini USB
l Outline dimensions: 146 × 30 × 25mm
l Wight: 110g (main device)
Application:
-
Installed machine or abiding assembly parts; such as boiler, metal pipes and turbo vanes.
l Mould; large producing part: roller, crank, tramroad of the machine and so on.
l Invalidation analysis of pressure vessel, steam generator and other equipments.
l The narrow space in the main shaft and the bottom of groove.
l The product line of bearings and other parts.
l Demanding the original records of the results
l Distinguishing of materials in the metal material warehouse.

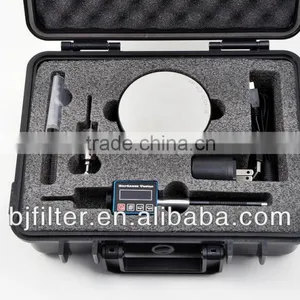

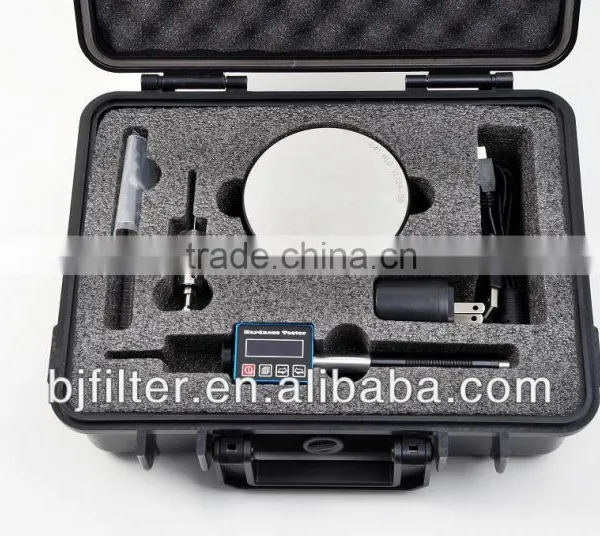

Standard Delivery:
-
NO.
Item
Quantity
Standard Configuration
1
Main unit
1
2
Small support ring
1
3
Cleaning brush (I)
1
4
High value test block
1
5
Charger
1
6
Communication cable
1
7
Software
1
-
Optional
Configuration
8
Other type of support rings
9
High, medium, and low HLD value test block
THE PREVIOUSNoneTHE NEXT - Features
- Technical specs
- Application
- Standard delivery
- Optional delivery
- Leaflet
-
All English menu display
OLED display
Mini USB communication port.
Large capacity memory can store 48~350 groups
(impact average times32~1) of information including single measured value, mean value, testing date, impact direction, impact times, material and hardness scale etc.
l Conversion to tensile strength (U.T.S).
l For all metallic materials.
l Provide software calibration function.
l High-performance Li battery with charging circuit providing extra-long working time and standby time. Battery sign, display the current remaining capacity.
l PC Software can be equipped to meet the higher demands in quality assurance, activities and management.
-
[Technical Specification]
l Measuring range: 170~960 HLDl Measuring direction: 360°
l Hardness Scale: HL, HRC, HRB, HRA, HV, HB, HS
l Display: dot matrix LCD 128×32 dots
l Data storage: 350 groups maxim, relative to impact times 32~1
l Charging power supply: 5VDC,220VAC
l Charging time: 1~2h
l Battery: 3.7V,Li(120mAh)
l Using temperature: 0 ~ 40°C
l Storage temperature: -25 ~ 70°C
l Continuous working period: 10h (without backlight)
l Communication port: Mini USB
l Outline dimensions: 146 × 30 × 25mm
l Wight: 110g (main device)
-
l Installed machine or abiding assembly parts; such as boiler, metal pipes and turbo vanes.
l Mould; large producing part: roller, crank, tramroad of the machine and so on.
l Invalidation analysis of pressure vessel, steam generator and other equipments.
l The narrow space in the main shaft and the bottom of groove.
l The product line of bearings and other parts.
l Demanding the original records of the results
l Distinguishing of materials in the metal material warehouse.
-
NO.
Item
Quantity
Standard Configuration
1
Main unit
1
2
Small support ring
1
3
Cleaning brush (I)
1
4
High value test block
1
5
Charger
1
6
Communication cable
1
7
Software
1
-
Optional
Configuration
8
Other type of support rings
9
High, medium, and low HLD value test block
-
AHT100 Hardness Tester.pdf
-
-
