Home > Electrical & Electronics > Passive Components > Capacitor > Capacitor Capacitor 0.01uf Metallized Polypropylene Film Capacitor
Capacitor Capacitor 0.01uf Metallized Polypropylene Film Capacitor
US$ 0.05 - 0.1
MOQ: 10000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
dahua
Model Number:
CBB21
Payment & Shipping
Payment Methods:
Port of Shipment:
Shunde port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
AC Fan CapacitorUS$ 0.06 - 0.32MOQ: 1000 Pieces -
Metallized DC Epoxy CapacitorNegotiableMOQ: 1000 Pieces
-
Metallized Film CapacitorsUS$ 0.12 - 0.86MOQ: 500 Pieces
-
AC Motor Washing Capacitor(CBB60) X2 Capacitor Run Washing CapacitorNegotiableMOQ: 1000 Pieces
-
AC CapacitorUS$ 0.7 - 1.5MOQ: 1000 Pieces
Place of Origin
Guangdong, China
Brand Name
dahua
Model Number
CBB21
Type
Aluminum Electrolytic Capacitor
Application
RF / Microwave
Package Type
Surface Mount
Capacitance
0.01-3.3uF
Rated Voltage
250V 400V 630V
Operating Temperature
40//85/21

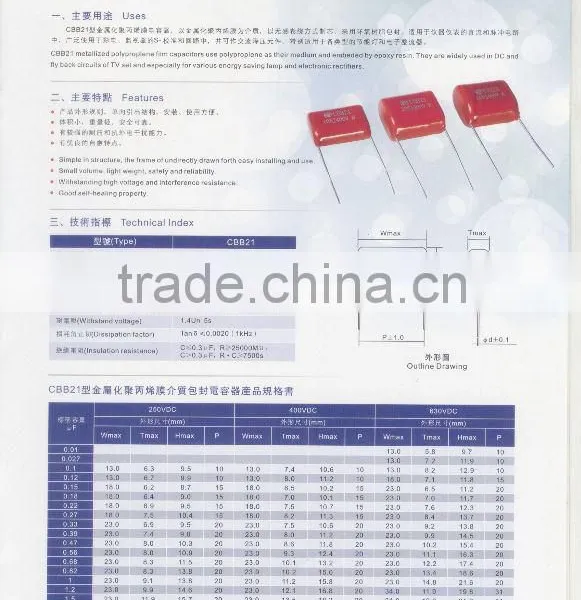

CBB21 Capacitor,metallized polypropylene film capacitor are
Suitable for e applies high frequency ,DC ,AC and PCBs.
Features:
Very low loss at high frequency
High dv/dt ability and suitable for high current High isulation resistance
Long life due to self-healing effect
Widely used in high frequency DC, AC and pulse circuits
Reference Standard GB10190-88(IEC60384-16)
Climatic Category 40/85/21
Rated Voltage 250V- 630V
Capacitance Tolerance +/-5%(J), +/-10%(K), +/-20%(M)
Voltage proof 1.6UR(5s)
| Type | Ambient Temperature |
Rated voltage ( VAC ) |
Rated capacitance (μ F ) | Test voltage ( VAC ) |
Insulation Resistance | Dissipation Factor |
| CBB21 | -40~+85ºC | 250~630 | 0.01~3.3 | T-T:1.5Un/60S 1.75Un/10S 2Un/2S |
C ≤ 0.3 μ F ≥ 25000M Ω C > 0.3 μ F ≥ 7500S |
tg δ≤ 0.002(1KHz) |
| T-C:2000VAC/60S |
capacitor capacitor 0.01uf metallized polypropylene film capacitor
