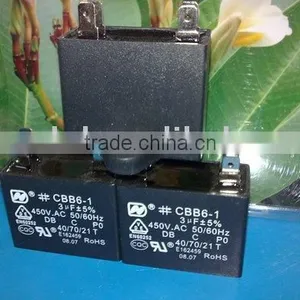

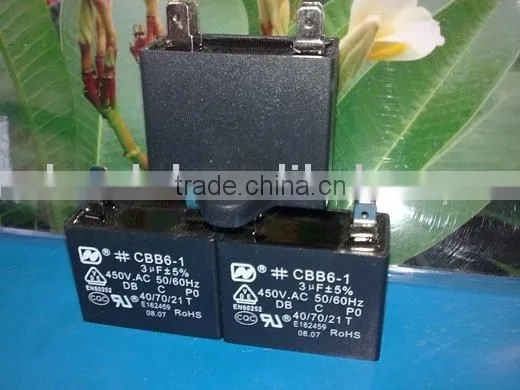

ac Fan Capacitor(with UL,VDE,TUV,CQC Approval)
US$ 0.131 - 0.526
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HD
Model Number:
CBB61
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shunde
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangdong, China
Brand Name
HD
Model Number
CBB61
Type
Polypropylene Film Capacitor
Application
Fan
Package Type
Surface Mount
Capacitance
0.1-40uF
Rated Voltage
250VAC~630VAC
Operating Temperature
-40/+85
Specifications

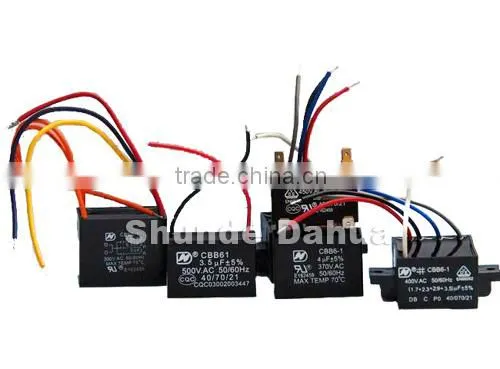

ac fan capacitor(with UL,VDE,TUV,CQC approval), film capacitors, AC capacitors are applied to the single-phase motorsac fan capacitor(with UL,VDE,TUV,CQC approval),are applied to the single-phase motors for electric fan,oil and smoke exhauster machine which demand 50/60 Hz power supply.
Features
Small in dimensionlight in weigh.
Low dissipation factor.
Good self-healing.
Sealing by fire-retardant plastic shell and fire-retardant epoxy resin.
P0 class (no Anti-explosion) and P2 class (Safety Anti-explosion) two different structures.
| Type |
Ambient Temperature |
Rated voltage ( VAC ) |
Rated capacitance (μ F ) | Test voltage ( VAC ) |
Insulation Resistance | Dissipation Factor |
| CBB61 | -40~+70ºC | 250~630 | 0.4~20 | T-T:1.5Un/60S 1.75Un/10S 2Un/2S |
T-T: ≥ 3000S | MPP: tg δ≤ 0.002(100Hz) MPET: tg δ≤ 0.005(100Hz) |
| T-C:2000VAC/60S | T-C: ≥ 1000M Ω |
