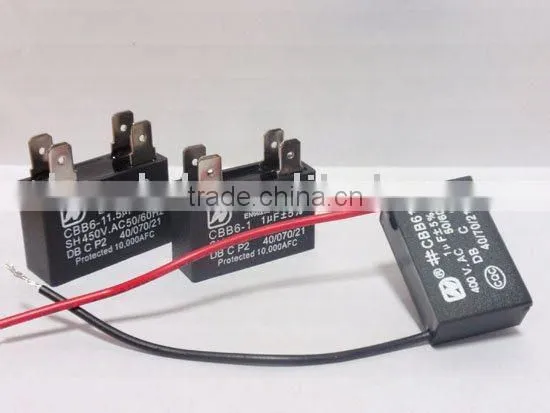

Help CenterAC Fan Capacitor (CBB61)
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HD
Model Number:
CBB61
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shunde
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
AC Fan Capacitors sk CapacitorUS$ 0.131 - 0.889MOQ: 1000 Pieces -
CBB61 Fan Capacitor 4 Wire Fan Capacitor Film Fan CBB61 CapacitorUS$ 0.131 - 0.889MOQ: 1000 Pieces
-
AC Fan Capacitors sk CapacitorUS$ 0.131 - 0.689MOQ: 1000 Pieces
-
220VAC Fan CapacitorUS$ 0.131 - 0.389MOQ: 1000 Pieces
-
450VAC Fan CapacitorUS$ 0.131 - 0.395MOQ: 1000 Pieces
Place of Origin
Guangdong, China
Brand Name
HD
Model Number
CBB61
Type
Polyester Film Capacitor
Application
Fan
Package Type
Surface Mount
Capacitance
0.1--60uF
Rated Voltage
250V-630V
Operating Temperature
40-85
Specifications
They are applied to the single-phase motors for electric fan,oil and smoke exhauster machine which demand Fan capacitor.Dry A.CFan capacitor(CBB61).
Small in dimension light in weigh.
Low dissipation factor.
Good self-healing.
Sealing by fire-retardant plastic shell and fire-retardant epoxy resin.
P0 class (no Anti-explosion) and P2 class (Safety Anti-explosion) two different structures.
| Type |
Ambient Temperature |
Rated voltage ( VAC ) |
Rated capacitance (μ F ) | Test voltage ( VAC ) |
Insulation Resistance | Dissipation Factor |
| CBB61 | -40~+70ºC | 250~630 | 0.4~20 | T-T:1.5Un/60S 1.75Un/10S 2Un/2S |
T-T: ≥ 3000S | MPP: tg δ≤ 0.002(100Hz) MPET: tg δ≤ 0.005(100Hz) |
| T-C:2000VAC/60S | T-C: ≥ 1000M Ω |
