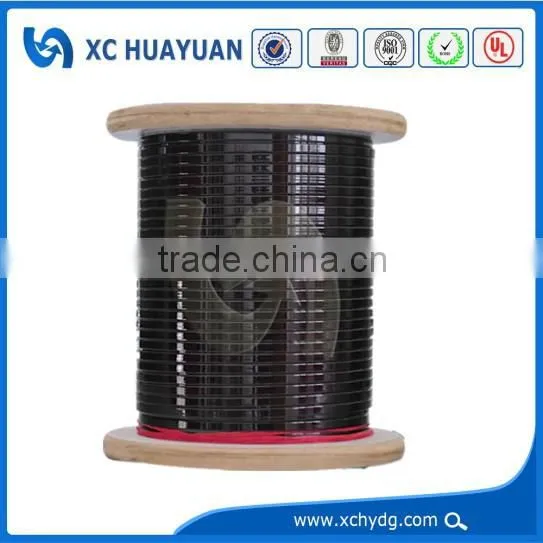

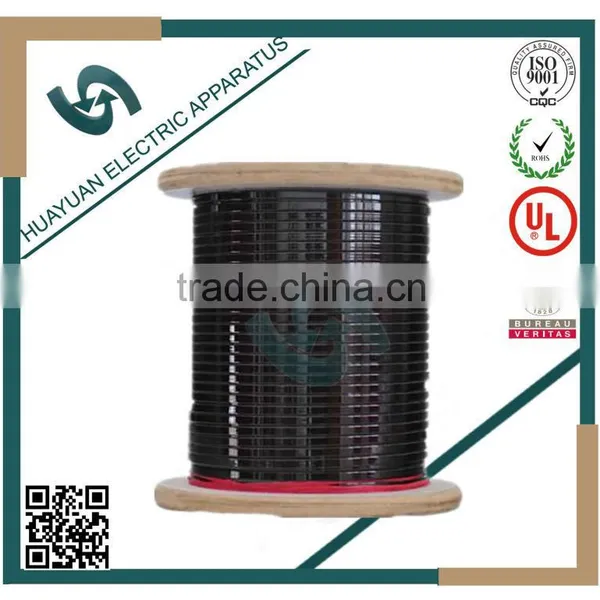

Enameled copper cable price per meter
Product detail picture
Main products: Enameled aluminum round wire, enameled aluminum flat wire ,paper covered aluminum wire,paper covered copper wire,3M paper covered aluminum wire, telephone paper covered aluminum wire,Dupont covered aluminum wire,single-layer glass fiber covered aluminum wire, single-layer glass fiber covered copper wire, double-layer glass fiber covered aluminum wire, double-layer glass fiber covered copper wire
1. copper cable price per meter specification as follows :
| Diameter | Round wire: Φ1.0-8.0mm |
|
Flat wire: Thickness(a): 0.8mm-5.0mm, Width(b): 2-16mm | |
| Standard | IEC, NEMA, GB |
| Thermal Class | 130/155/180/200/220 |
| Certification | UL Approved, ROHS Authentication, ISO9001 |
| 1). Class 130 polyester enameled wire, PEW /130 |
| 2). Class 155 modified polyester enameled wire, PEW/155 |
| 3). Class 180 polyesterimide enameled wire, EIW/180 |
| 4). Class 200 polyester-imide / polyamide-imide enameled wire, EI/AIW200 |
| 5). Class 130 /155/ 180 polyurathane enameled wire, UEW 130/ 155 /180 |
2. copper cable price per meter feature
| 1)High temperature resistance |
| 2)Chemical corrosion resistance |
| 3)Transformer oil resistance |
|
4)Radiation resistance |
| 5)High breakdown voltage |
| 6)Good mechanical properties |
|
1) The largest range of Enameled Round Aluminum Wire, with diameters from 1.0 to 8.0 millimeters |
|
2) BV approved professional manufacturer of aluminium wire. We process in high quality only |
| 3) The vanish use is ELANTAS to gurantee the quality |
|
4) Factory have passed the ISO 9001 (00112Q213049R1M/4100) and ROSH certification |
| 5) Some of our products are UL listed (OBMW2.E317671) |
| 6) Free samples can be sent to test quality |
Why Choose Us :
Services Guarantees of magneto wire:
1) Factory Direct and on-time shipment.
2) ELANTAS insulation paint available.
3) Large size safe package up to PT-270.
4) Customized sizes,OEM are accepted!
5) Goods are sold with rerun or refund guarantee due to quality issue!
copper cable price per meter hot sale

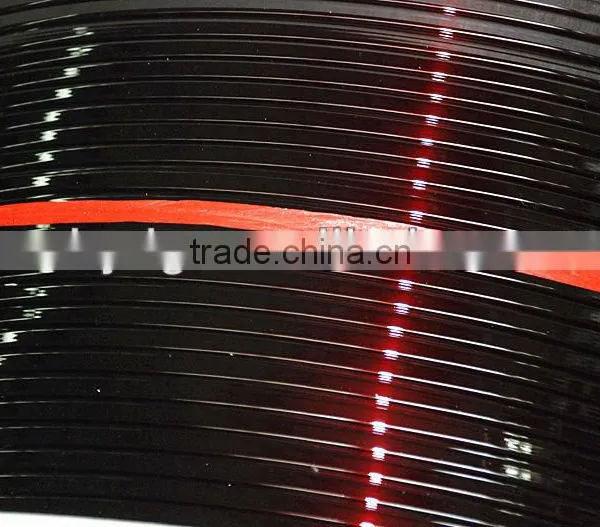

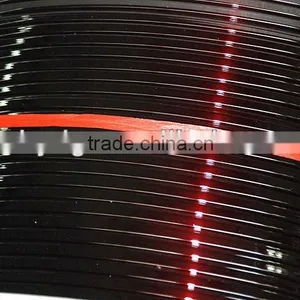

Copper flat wire is produced by processing copper bar through our continuous conforming technology, then coating the copper wire with several layers of enamel insulation as per the specified requirements. Copper flat wire is used in the windings of transformers, generators, motors and other electrical equipment.
Certifications of copper cable price per meter :
The mechanical, electrical and chemical characteristics of copper flat wire differ from those of
copper magnet wire because of the inherent differences in the conductor materials. These
differences are reflected in certain test procedures and/or performance requirements for copper
flat wire , such as elongation, adherence and flexibility, heat shock, scrape resistance, continuity
and thermal endurance .
Producing Process of copper cable price per meter
Packing about copper cable price per meter
Inner packing: different plastic spool according to wire diameter (Plastic spool of PT-4,PT-10,PT-20,PT-25)
Outer packing: wooden cases or according customers' requirement.
Shipping terms of copper cable price per meter
1) Sample time: Nearby 3-5days, distance 5-7days.
2) Production time: 10-30days(Depends on the Qty) after advanced payment received
3) Packing: Each into individual carton box, then into export carton
Technical test iterms about copper cable price per meter
Maximum Overall Diameter, Conductor Diameter, Film Thickness, Conductor Resistance, Elongation, Spring Back, Mandrel Winding, Sudden Jerk, Cut Through, Heat Shock, Room Temperature Breakdown Voltage, High Voltage Hole, and Pin-Hole etc .
Name |
enamel copper magnet wire |
||||
Type |
QZB-2/155 |
||||
Diameter |
4.00X8.00 |
||||
Standard |
GB/T7095.3 |
||||
Test Item |
Unit |
Technical requirements |
Test Result
|
||
Appearance |
|
Bright and clean, uniform color |
Ok |
||
Dimensions |
Bare Conductor |
Narrow side |
mm |
±0.05 |
4.01 |
Broad side |
mm |
±0.07 |
8.00 |
||
Enameled Increase |
Narrow side : |
mm |
0.12~0.17 |
0.130 |
|
Broad side |
mm |
0.12~0.17: |
0.150 |
||
Adherence and Flexibility |
Mandrel Winding Test |
|
1D |
OK |
|
Jerk Test |
|
No Crack, and No losing adhesion |
OK |
||
Resistivity(20°C) |
Ω. mm²/m |
≤0.017241 |
0.01693 |
||
Elongation |
% |
A side(mm) ≤2.5 30% >2.5 32% |
44% |
||
Heat Shock |
°C |
after bending in 6a test bar, 175°C no cracking |
no cracking |
||
Breakdown Voltage at Room Temp. |
KV |
2.0 |
4.9,3.5,4.2,4.0,6.2 |
||
Packing |
|
Meet the export standard |
OK |
||
a) Class 180: Polyesterimide enameled round and flat aluminum/copper wire class180 have good performance of heat shock.
Resistant to high cut- through temperature, excellent mechanical strength .With the feature of both solvents
resistance and refrigerants resistance. It can be widely used in electrical equipments which
require high performance of heat resistance.
Typical applications include:
| l Electric motor |
| l Instrument |
| l Dry transformer |
| l Generator |
| l UPS power source |
| l Electric welding machine |
b) Class 200: Polyester or polyestermide covered with polyamideimide enameled round and flat aluminium/copper wire class
200 show superior performance in the application including extreme environment application.
Typical applications include:
| l Motor |
| l Transformer(include oil-immersed transformer) |
| l Refrigerating System |
| l C motor |
| l UPS power source |
For more information of copper cable price per meter : please visit our website: https://img13.fr-trading.com/ or /
|
Q1. Different thermal class wire, whether their price is the same ? Their price is different based on different thermal class, because the varnish is different. |
|
Q2. Why we need our customer tell the insulation thickness ? Our customers can tell us the insulation thickness or the referance satndards, such as GB/IEC /NEMA. |
|
Q3. If I order today, how long it takes for the shipment ? If customized order will ship the goods within 5-15days also depend on the quantity. |
|
Q4. Can u provide customized specifications ? Yes,we can. Round wire diameter 1.00-8.00mm Flat wire Thickness(a): Φ0.8mm- 5.0mm, Width(b): Φ2-16mm . |
Certifications of copper cable price per meter
UL, ISO9001, ROHS, Bureau Veritas
Xuchang Huyuan Electric Apparatus Co.,Ltd Since 1993
Professional Manufacturer of magneto wire in China
To provide you with the perfect service
Enamelled copper wire Main Export to Hongkong, Singapore, Indonesia, Sri Lanka, Vietnam, Thailand, Turkey, UK, Hungary, Romania, Croatia, Greece, Egypt, USA, Canada, Brazil, Argentina, Zambia, Colombia, Dominican republic.
