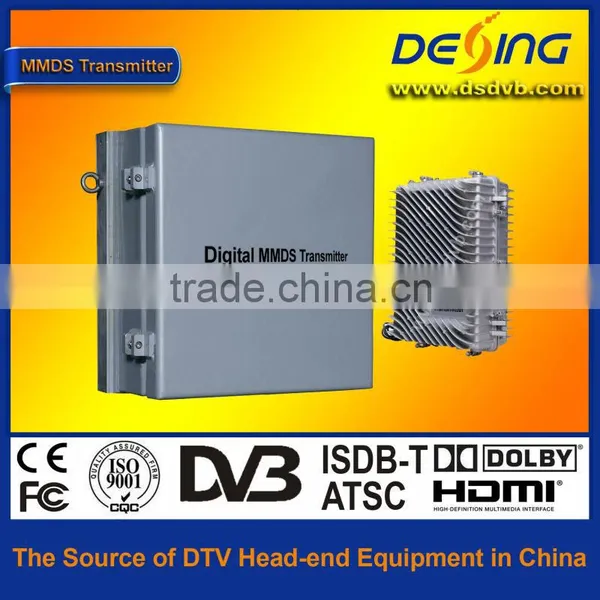

NDS2527 Digital MMDS Broadband Transmitter (Outdoor Model)
Key Features
- Low LO phase noise, enhanced signal transmission quality;
- Low consumption and super linear design, improved transmitting power and reduced non-linear distortion;
- Outdoor design to improve the transmitting power and reduce feeder consumption;
- Outdoor design to leave out the waveguide and reduce system cost;
- Miniaturization design for easier constructing;
- Self-cooled design improving the device reliability;
- Aluminum shell with modular structure for easy maintains;
- Indoor monitoring for the microwave and signal quality and other parameters;
- Optical input interface to realize transmitting signals in different places
Technical Data
1. Electrical Signal Specifications
Parameters |
Symbol |
Minimum |
Typical |
Max |
Unit |
Output freq range |
FOUT |
2500 |
|
2700 |
MHz |
Output power |
P1 dB |
5 10 30 50 100 200 |
5 10 30 50 100 200 |
5 10 30 50 100 200 |
W |
Frequency conversion gain flatness@200Mhz bandwidth |
G200MHz |
|
1 |
2 |
dB |
Input freq range |
FIN |
2500-LO |
|
2700-LO |
MHz |
Input Level |
PlN |
75 |
85 |
95 |
dBμV |
Gain numerical control |
Atten |
1 |
|
15 |
dB |
AGC range |
GAGC |
|
±5/±0.5 |
|
dB |
AGC state |
POUT |
|
1 |
|
dB |
LO SSB phase noise@10KHz |
Ng |
|
-95 |
95 |
dB/Hz |
Group delay |
GD |
|
|
20 |
nS |
Input port echo wastage |
|
14 |
|
|
dB |
Output port echo wastage |
|
17 |
|
|
dB |
Input port impedance/connector |
50Ω/N-50K |
|
|
|
|
Output port impedance/connector |
50Ω/N-50K |
|
|
|
|
2. OpticalSignal Specifications
Parameters |
Unit |
Standard |
Wave length |
Nm |
1300-1600 |
Nominal input |
dBm |
-1 |
Inputting power |
dBm |
-5~+2 |
Max Inputting Power |
dBm |
+3dBm |
Connector |
|
FC/APC |
Reflection Loss |
dB |
≥45 |
Output impedance |
W |
50 |
Output reflection loss |
dB |
≥12 |
Output level |
dBμv |
85 |
in-band flatness |
dB |
≤1 |
3. Others
| |||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||
