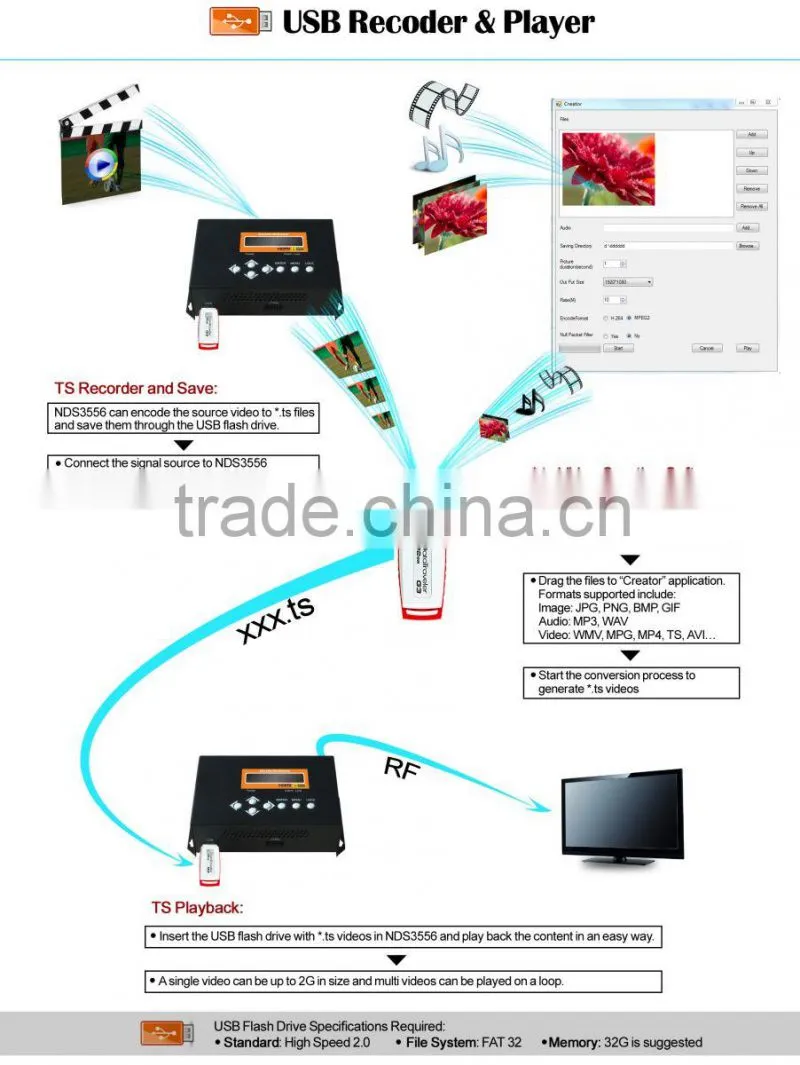

hdmi to dvb-c rf modulatorUSB record TS and playback
with TS Creator.exe
MPEG4 HD/SD encoding
digital rf output
HDMI to DVB-C RF Modulator

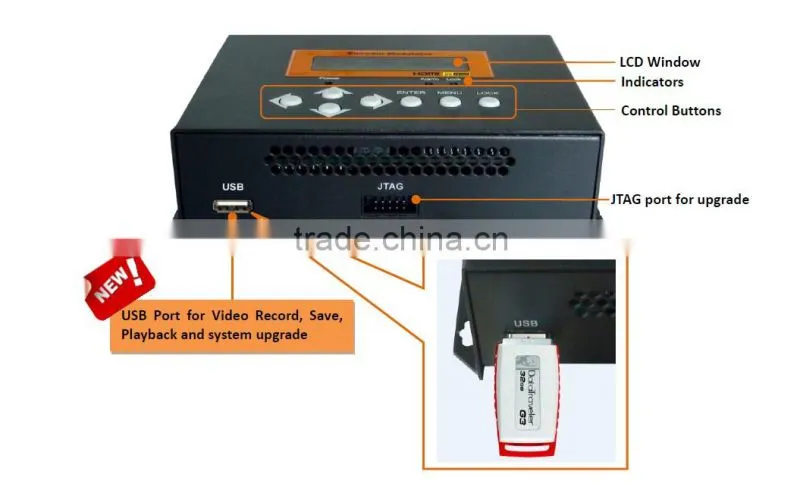

A device that allows audio and video signal input in TV distributions and video recorded and playback through a USB port, with applications in home entertainment, Digital Signage for hotels, shops, restaurants etc...
General Description
NDS3556 series encoder & modulator is DEXIN’s consumer electronics which allow audio/video signal input in TV distributions and video recorded and playback from a USB port with applications in home entertainment, surveillance control, hotel Digital Signage, shops etc.
It is an all-in-one device integrating MPEG-4 AVC/H.264 encoding and modulating to convert audio/video signals into DVB-T/DVB-C/DTMB/ATSC/ISDB-T RF out.
The signals source could be from satellite receivers, closed-circuit television cameras, Blue-ray players, and antenna etc. its output signal is to be received by a DVB-T/DVB-C/DTMB/ATSC/ISDB-T standard TVs or STBs etc.
Technical Specifications
Encoding Section | ||
HDMI | ||
Video |
Encoding |
MPEG-4 AVC/H.264 |
Interface |

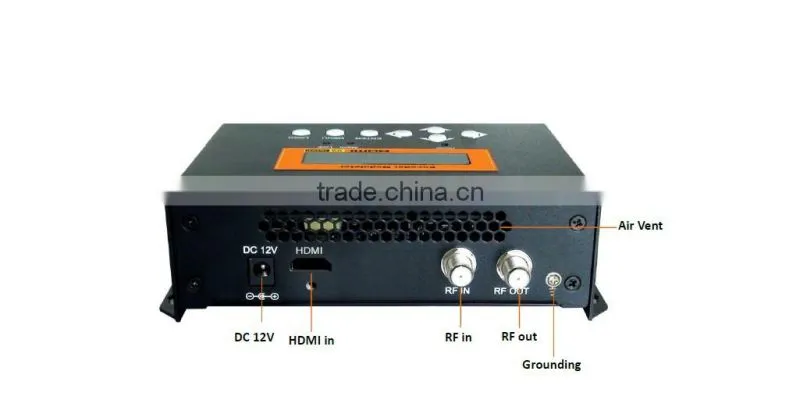

HDMI*1 |
|
Resolution |
1920*1080_60P,1920*1080_50P; 1920*1080_60i, 1920*1080_50i; 1280*720_60p, 1280*720_50P 720*480_60i, 720*576_50i |
|
Bit rate |
1.000-19.000 Mbps |
|
Audio |
Encoding |
MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC |
Sample rate |
48KHz |
|
Bit rate |
64, 96,128, 192, 256, 320, 384kbps |
|
Modulator Section | ||||
DVB-C |
|
|||
Standard |
J.83A (DVB-C), J.83B, J.83C |
|||
MER |
≥43dB |
|||
RF frequency |
30~960MHz, 1KHz step |
|||
RF output level |
-16~ -36 dBm (71~91dbµV), 0.1db step |
|||
Symbol rate |
5000-9000 Ksps |
|||
|
J.83A |
J.83B |
J.83C |
|
Constellation |
16/32/64/128/256QAM |
64/ 256 QAM |
64/ 256 QAM |
|
Bandwidth |
8M |
6M |
6M |
|
System | ||||
Management |
Local control: LCD + control buttons |
|||
Language |
English |
|||
LCN Insertion |
yes |
|||
Upgrade |
JTAG |
|||
General | ||||
Power supply |
DC 12V |
|||
Dimensions |
153*110*50mm |
|||
Weight |
< 1kg |
|||
Operation temperature |
0~45°C |
|||
Technical Compare
Main Features |
DEXIN NDS3556/NDS3557 |
Competing Products |
Record TS to USB memory |
*Yes (NDS3556) |
*No |
*.ts files play-mode supported |
*Both Multi/Single files loop *Support HD&SD video play |
*Single file loop *Support only SD video play |
TS Creator.exe |
*HD video to HD video transform *Null Packet Filter, effect bit rate up to 90% *Support output video size, rate, and format control |
*HD video to SD video downscale *No Null Packet Filter, effect bit rate only around 50% |
Single video length |
*2-3 Hours HD/SD |
*40 Minutes SD |
