Specifications
ASI to IP gigabits gateway converter1. 12 ASI to 12 IP
2.UDP, unicast and multicast
3.maximum total bit-rate is 800Mbps
ASI to IP gigabits gateway converter
Outline

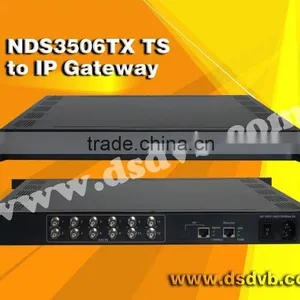

NDS3506Tx ASI to IP Gigabits gateway is a head-end interface device which is used for DVB and Ethernet, the program transmitting part can be used as IP stream transmitter, which can transmit the MPEG-2 TS stream in to IP stream, also, it can simultaneously transmit the 12 TS stream into 12 IP stream, and the streams can transmitted through the same gigabits internet interface.
Features
- Supports ASI to IP one-way conversion
- Supports one GE serial port, and inputs 1Gps data
- Supports UDP, unicast and multicast mode
- Supports maximum 12 channel ASI to IP conversion channels, and the maximum bit-rate in each channel is 108Mbps, the maximum total bit-rate is 800Mbps
- Keyboard and NMS operation
Specifications
Interface |
Input |
12 channels ASI input interfaces |
Output |
One GE output ports,RJ45 interface |
|
Transfer protocol |
Input |
DVB-ASI |
Output |
TS over UDP,unicast and multicast |
|
Bit-rate |
Max of each channel is 108Mbps Max total bit-rate is 800Mbps |
|
General |
Dimension (WxLxH) |
482mm×410mm×44mm |
Weight |
4kg |
|
Temperature |
0~45°C(working ),-20~80°C(storage) |
|
Power supply |
100~240VAC,50/60Hz |
|
Power consumption |
20W |
|
