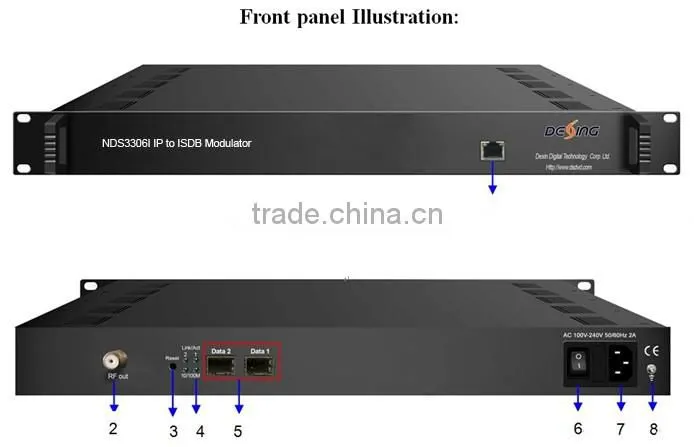

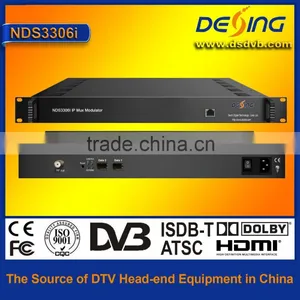

Dexin NDS3306I ISDBT RF generator
1 |
NMS: network management port |
2 |
RF output port |
3 |
Reset IP: Reset webmaster IP address, recover it to default IP address |
4 |
Link/Act Indicators |
5 |
Data Input/Output 1/2 (SFP) |
6 |
Power switch |
7 |
AC Power Socket |
8 |
Grounding |
Product Overview
Key Features
2 GE input, SFP interface
Supports up to 192 IP input over UDP/RTP, unicast and multicast, IGMP v2v3
Max 840Mbps for each GE input
Supports accurate PCR adjusting
Supports CA PID filtering, remapping and PSI/SI editing
Supports up to 180 PIDS remapping per channel
Support 6 multiplexed TS over UDP/RTP/RTSP output
6 non-adjacent carriers output, compliant to ISDB-Tb (ARIB STD-B31)
Support Web-based Network management
Inner Principle Chart
Carrier Setting Illustration
Specifications
Input |
Input |
32×6 IP input, 1000M Ethernet Port (SFP) |
Transport Protocol |
TS over UDP/RTP, unicast and multicast, IGMP V2/V3 |
|
Transmission Rate |
Max 840Mbps for each GE input |
|
Mux |
Input Channel |
192 |
Output Channel |
6 |
|
Max PIDs |
180 per channel |
|
Functions |
PID remapping (auto/manually optional) |
|
PCR accurate adjusting | ||
PSI/SI table automatically generating | ||
|
Modulation Parameters |
Standard |
ARIB STD-B31 |
Bandwidth |
6M |
|
Constellation |
QPSK, 16QAM, 64QAM |
|
Guard Interval |
1/32, 1/16, 1/8, 1/4 |
|
Transmission Mode |
2K, 4K, 8K |
|
Code rate |
1/2, 2/3, 3/4, 5/6, 7/8 |
|
MER |
≥40dB |
|
RF frequency |
50~960MHz, 1KHz step |
|
RF output level |
-20dBm~+10dBm(87~117dbµV), 0.1dB stepping |
|
RF Output |
Interface |
1 F typed output port for 6 carriers, 75Ω impedance |
ACLR |
-50 dBc |
|
TS output |
6 IP output over UDP/RTP/RTSP, unicast/multicast, 1000M Ethernet Ports |
|
System |
Network management software (NMS) supporting |
|
General |
Demission |
420mm×440mm×44.5mm (WxLxH) |
Weight |
3kg |
|
Temperature |
0~45℃(operation), -20~80℃(storage) |
|
Power Supply |
AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz |
|
Consumption |
15.4W |
|
