Dexin NDS3343B digital satellite receiver with mux-scr and qam modulator
Outline
NDS3343B is a high performance and cost-effective mux-scrambling QAM modulator designed by Dexin. It adopts inner drawer-type structural design which greatly facilitates the change of modules (4 Tuner/4ASI) as needed. To meet customers’ various requirements, this device is also equipped with 1 ASI in, 1 RF in, 1RF out and 2 ASI out port. After 4 channels multiplexing, scrambling and QAM modulating process, then it gives 4 RF output (4 adjacent frequencies).
The device is characterized with high integrated level, high performance and low cost. This is very adapting to newly generation CATV broadcasting system.
Key Features
n Support 4 ASI (or 4 Tuners with CAM/CI) input, 1 ASI input for re-mux, 1 RF input for mix
n Fully support DVB-C (EN300 429) and ITU-T J.83A/B/C
n Fully support DVB general scrambling system description ETR289, simulcrypt standard ETSI 101 197 and ETSI 103 197
n Every tuner has been accompanied with 1 CAM and 1 CI-slot, one CAM can decrypt max 8 programs
n Support 4 channels multiplexing, 4 channels scrambling and 4 channels QAM modulating
n Support accurate PCR adjusting
n Support PSI/SI editing and inserting
n Excellent RF output performance index, MER≥40db
n Support LCD display and keyboard
n Support Web management
Specifications
Input |
Option1: 5 ASI input+1 RF in |
|
Option 2: 4 tuner+1 ASI+1 RF in | ||
Multiplexing |
Maximum PID Remapping |
128per input channel |
Function |
PID remapping (automatically or manually) |
|
Accurate PCR adjusting | ||
Generate PSI/SI table automatically | ||
Scrambling |
Maximum simulcrypt CA |
1 |
Standard |
ETSI 101 197, ETSI 103 197 |
|
Connection |
Local/remote connection |
|
Modulation |
QAM Channel |
4 |
Standard |
EN300 429/ITU-T J.83A/B/C |
|
Symbol Rate |
5.0Msps~9.0Msps, 1ksps stepping |
|
Constellation |
16/32/64/128/256QAM |
|
FEC |
RS(204, 188) |
|
RF Output |
Connector |
F Type, 75Ω impedance |
RF Range |
30~960MHz, 1kHz stepping |
|
Output Attenuation |
-30dBm~-0dBm (per QAM carrier), 0.1dB Stepping |
|
MER |
≥40db |
|
ACLR (Adjacent channel leakage ratio) |
-55dBC |
|
System |
Support LCD display, keyboard operation, and Web operation. English and Chinese operation interface conversion |
|
Support Software Upgrading through Ethernet | ||
General |
Dimension(W*D*H) |
482mm×455mm×44.5mm |
Weight |
3.7kg |
|
Temperature |
0~45℃(Operation) ; -20~80℃(Storage) |
|
Power |
AC 100V±1050/60Hz; AC 220V±10%, 50/60HZ |
|
Consumption |
25W |
|

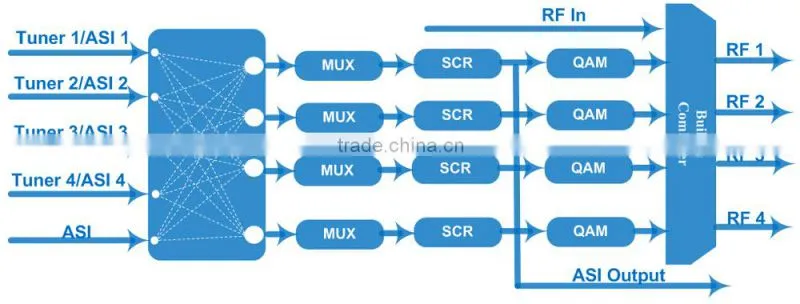

Working Principle
