Home > Electrical & Electronics > Telecommunication & Broadcasting > Radio & TV Broadcasting > 256 QAM 16 in 1 rf Modulator
256 QAM 16 in 1 rf Modulator
US$ 1 - 1,200
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
dexin
Model Number:
NDS3343
Payment & Shipping
Payment Methods:
Port of Shipment:
chengdu china
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
QAM Modulator 4 ASI Input ModulatorUS$ 1 - 5,000MOQ: 1 Set -
DVB-C/ QAM 16 in 1 rf ModulatorUS$ 1 - 1,200MOQ: 1 Set
-
8PSK Biss ModulatorUS$ 1 - 3,000MOQ: 1 Set
-
Ip to DVB-S2 RF ModulatorUS$ 1 - 4,000MOQ: 1 Set
-
DVB-S/S2 Modulator, ISDB-T Modulator, DVB-T Modulator ,QAM ModualtorUS$ 1 - 3,000MOQ: 1 Set
Place of Origin
Sichuan, China
Brand Name
dexin
Model Number
NDS3343

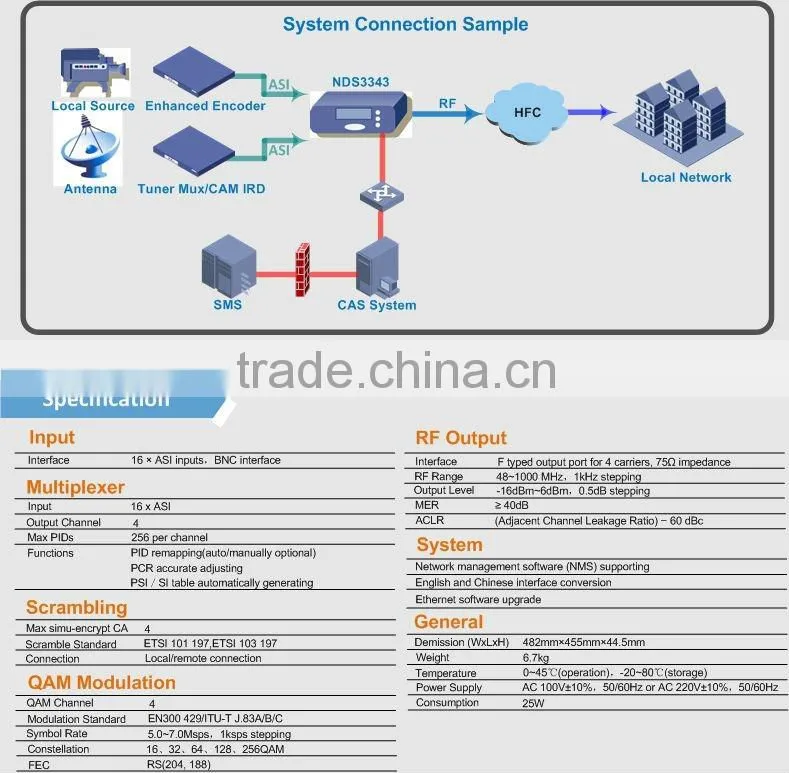

Specifications
1.16 ASI in2.4 MUX,4 SCR, 4 QAM embeded
3.Fully support EN300 429/ITU-T J.83A/B/C
Overview

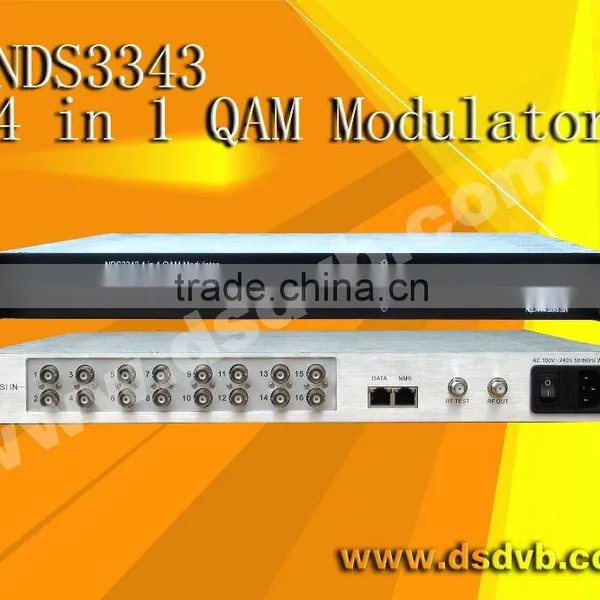

NDS3343 is a cost effective integrated 16 in 1 QAM modulator support MUX scrambling. This device support maximum 16 ASI input, after 4 multiplexer and 4 scrambler process, then gives 4 RF output (4 adjacent frequency output by 1 RF port). It’s ideal for processing IRD ASI output data and giving RF output by only one device. With its powerful function, it can reduce the operator business cost effectively.
Key features
l Support 16 ASI input
l Fully support EN300 429/ITU-T J.83A/B/C
l Support PSI/SI editing and inserting
l 4 MUX,4 SCR, 4 QAM embeded
l Support 4 simulcrypt CA
l Support accurate PCR adjusting
l 4 Frequency output with excellent MER≥40dB
l Support 16/32/64/128/256 QAM
