Specifications
1, 100% replacement for original plates;2, satisfied after-sale service;
3, reasonable price.

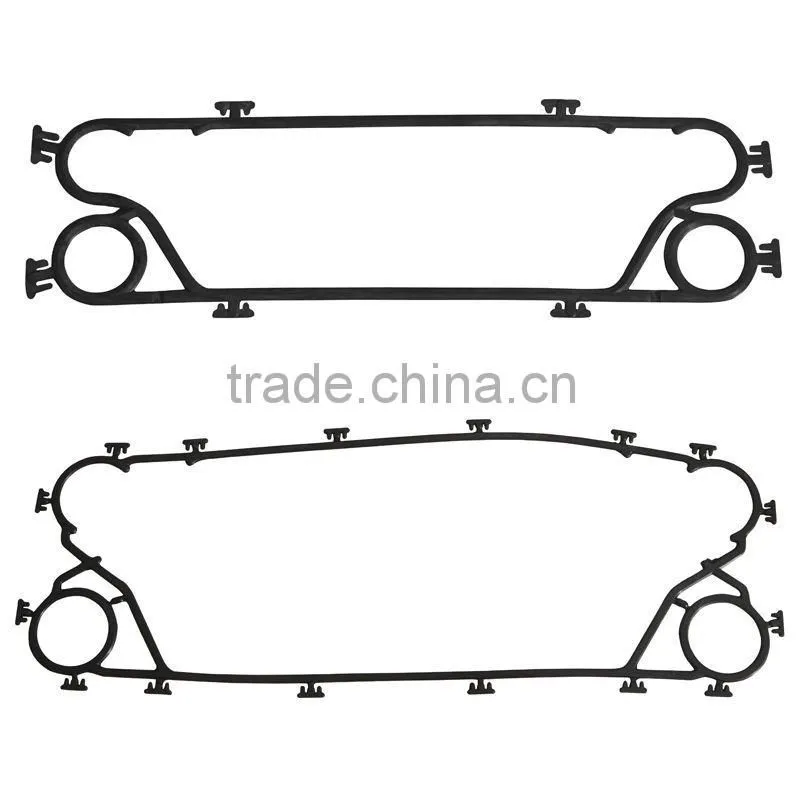

As a professional manufacturer of PHE and relateds part, we have two types of GASKET. One is clip on, the other is glue type. The design of GASKET is based on several years of practical experience gained from customers' requirements. We have a range of customer-designed GASKET for efficient thermal treatment of liquid and sensitive products.
Gasket Material: Rubber, NBR, EPDM;
Plate Material: Stainess steel AISI316L, AISI304, titanium, hastelloy, alloy;
Frame Material: Carbon steel, AISI304;
Application: Evaporator or condenser;
Material of Plate |
Suited Liquid Kinds |
||
Stainless Steel (SUS304. 316 Etc) |
Pure Water, Normal Water, Oil for eating, Mineral Oil |
||
Ti, Ti-pd |
Sea Water, Saline Water, Mineral Water |
||
20Cr, 18Ni, 6Mo (254SMO) |
Dilute Sulphuric Acid, Organic Water Solution |
||
Ni |
High-temp and concentration caustic soda |
||
Hastelloy (C276, D205, B2G) |
Concentration Sulphuric Acid, Hydrochloric acid, Phosphoric acid |
||
Material of Gasket |
Operating Temperature °C |
Suited Liquid Kinds |
|
NBR |
-15~+135°C |
Water, Sea Water, Mineral Oil, Salty Water |
|
EPDM |
-25~+180°C |
Hot Water, Steam, Acid, Caustic |
|
F26 |
-55~+230°C |
Acid, Caustic, Fluid |
|
TPF |
0~+160°C |
Concentrated Acid, Caustic, High-temperature Oil, Steam |
|
